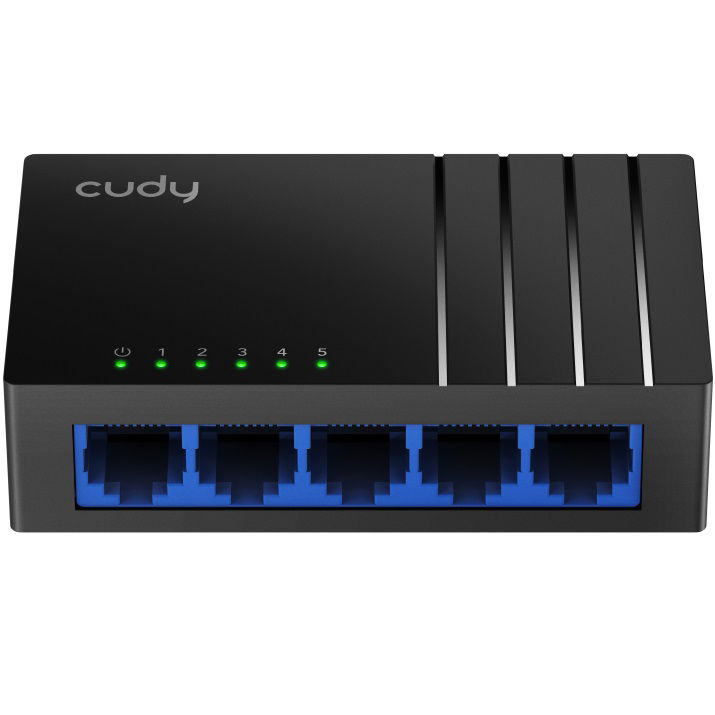

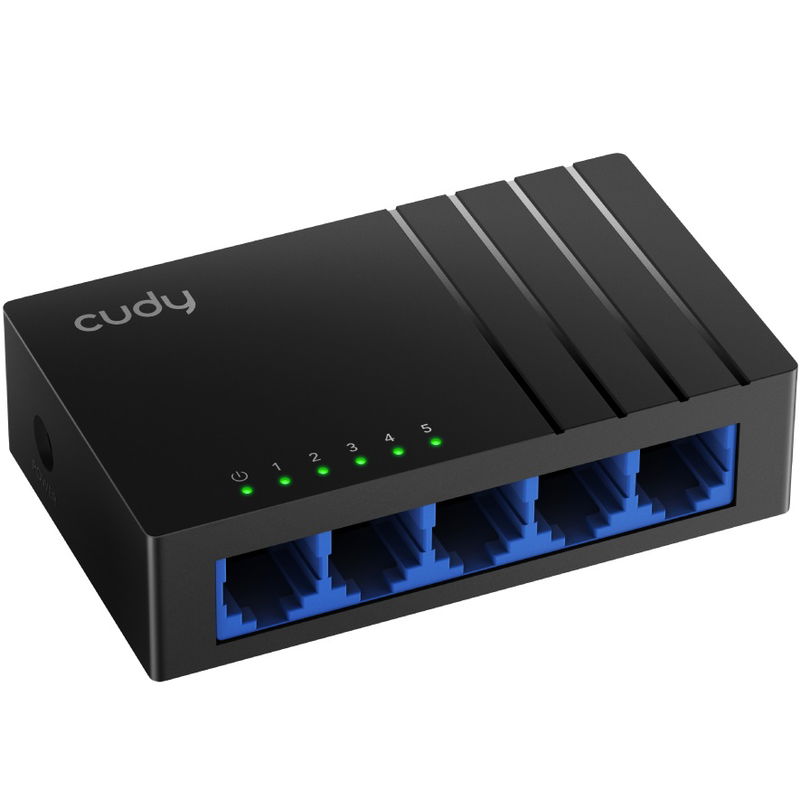

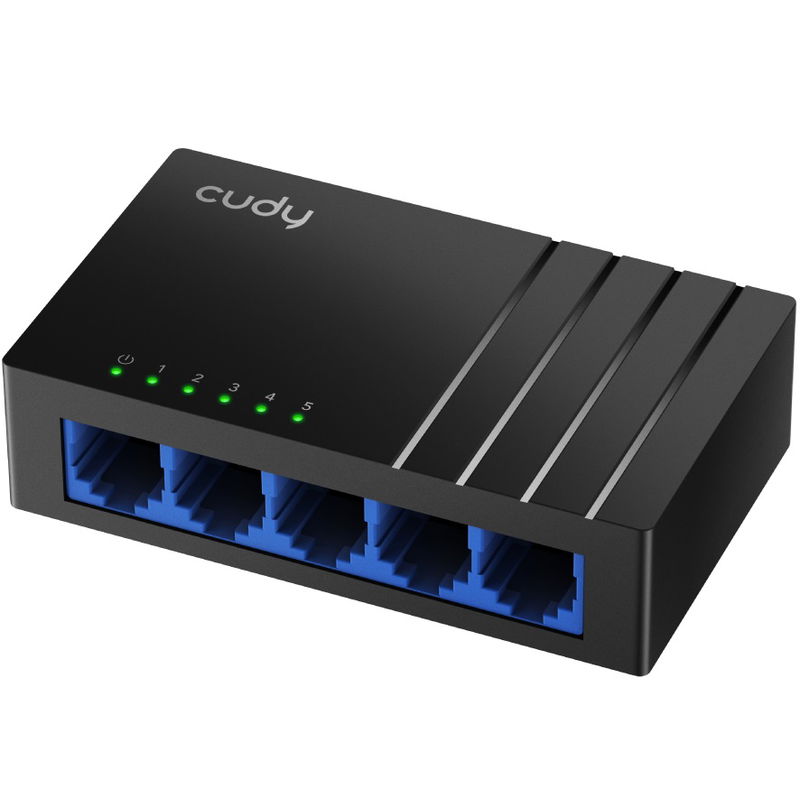

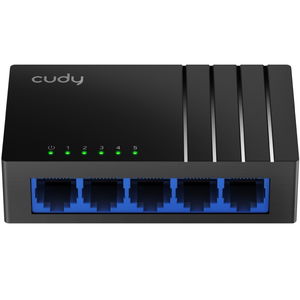

CUDY GS105D 5-Port Gigabit Unmanaged Switch

Compact enough to fit in most home network distribution boxes. The wave line and blue ports cast a modern aesthetic.

• Complies with IEEE802.3u/x/ab/az and 802.1p standards
• 5× 10/100/1000 Mbps Ethernet Ports
• 140m of transmission distance 40% longer than standard
• Saves power when ports or connections are inactive
• Non-blocking switching architecture enables full wire-speed
• Store-and-Forward switching method
• Packet Buffer prevents packet loss and improves packets forwarding performance

• Standards: IEEE 802.3, 802.3i/u/x/ab/az, 802.1p
• Ethernet: 5× 10/100/1000 Mbps Ports (Auto-Negotiation, Auto-MDI/MDIX)
• Network Media: 10BASE-T: UTP Cat 3 or above cable (≤ 100m), 100BASE-TX: UTP Cat 5 or above cable (≤ 100m), 1000Base-T: UTP Cat 5 or above cable (≤ 140m)
Transfer Method: Store-and-Forward
• MAC Address Table: 2K
• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.44 Mbps
• Packet Buffer: 3 Mbit
• Jumbo Frame: 15 KB
• Input voltage: DC 5 V / 0.55 A
• Weight: 52g
• Dimensions (W×D×H): 88×52.5×24 mm

• GS105D
• Power Adapter
• Installation Guide
