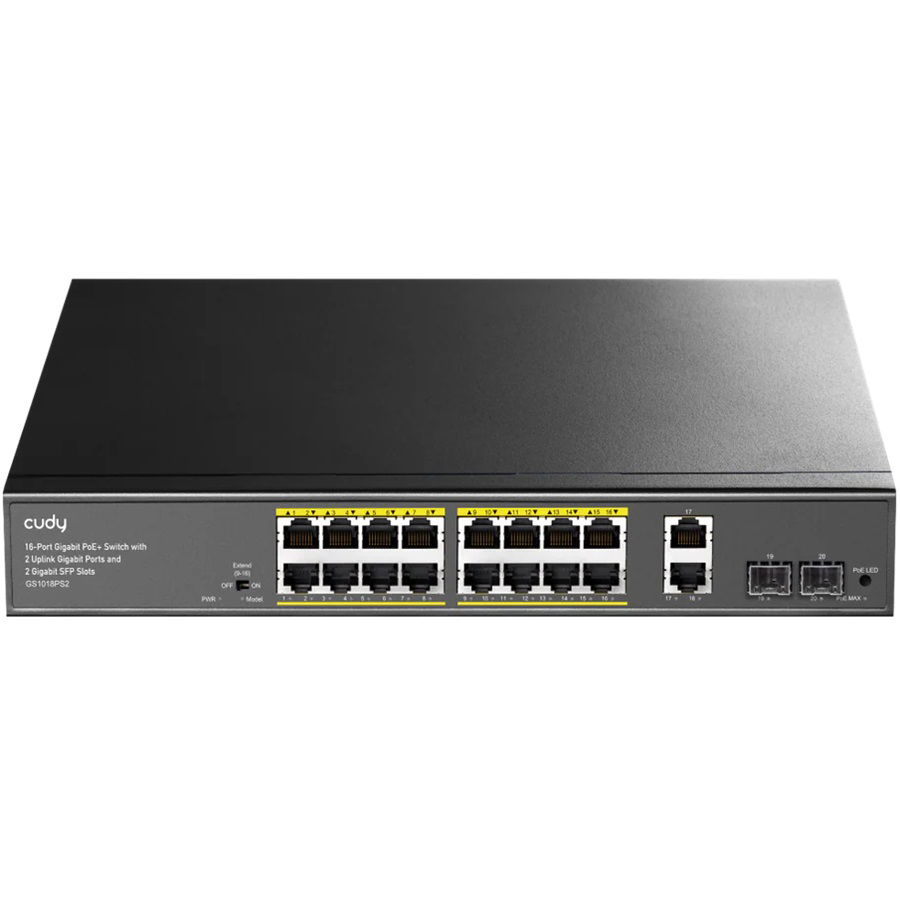

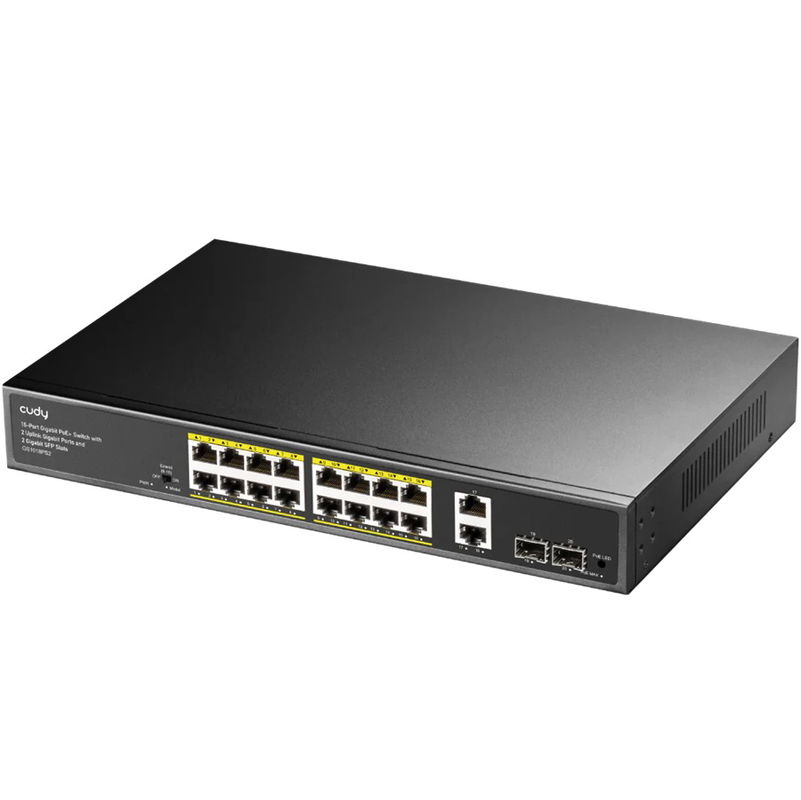

CUDY GS1018PS2 16-Port Gigabit PoE+ Unmanaged Switch with 2x Uplink Gigabit Ports and 2x SFP Slots

A rack-mounted 18-GbE, 2-SFP PoE switch with a 200W power supply and a silent cooling system.

• 16× GbE with 802.3at/af Mode A PoE
• 2× Uplink GbE + 2× Uplink SFP
• 200W Power Supply
• Default/Extend Modes
• Watchdog under Extend Mode
• Desktop, Rack-Mount

Interfaces:
• 1.25G SFP Slots: 2
• Gigabit RJ45 Ports: 18
• Gigabit RJ45 PoE Ports: #1~#16
• Max Power on a Single PoE Port: 30W
• PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
• Extend Mode Ports: #9~#16
• LED: Power, Speed/Link/ACT of Each Ethernet Port, Extend Status

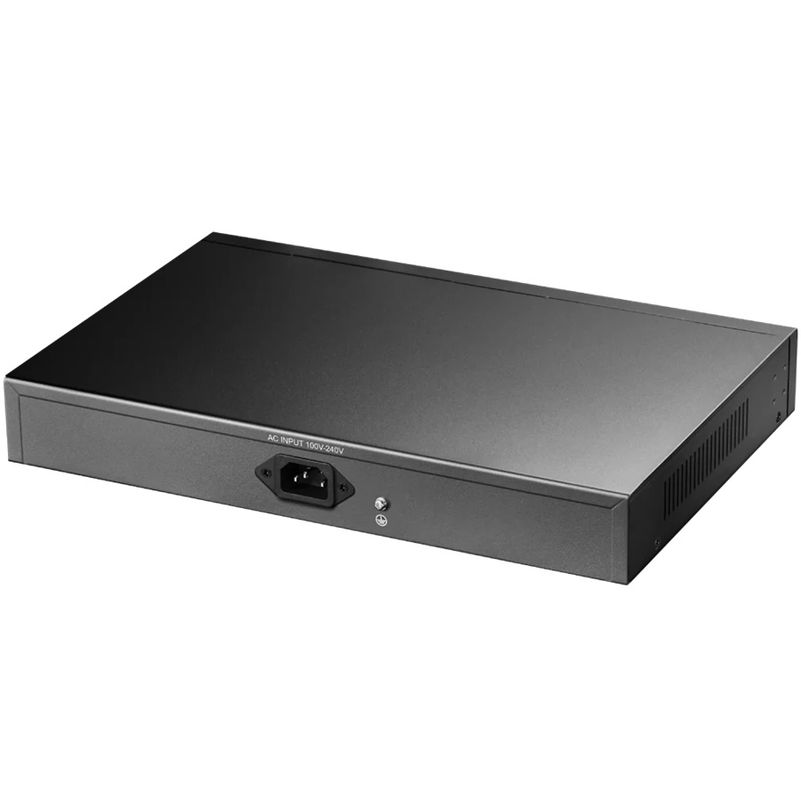

• Power Input: AC Inlet
• Physical Buttons: Default/Extend DIP switch

Performance:
• Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 100 meters at Gigabit, Cat. 5e or higher cable: 250 meters at 10 Mbps
• Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
• Optical Spec and Distance: Depends on the Installed Optical Module
• MAC Address Table: 2048
• Max Switching Capacity: 40 Gbps
• Max Forwarding Rate: 29.76 Mpps
• Packet Buffer: 3 Mbit

Power:
• Power Methods: AC
• AC: 100-240V~, 50/60Hz
• Power Supply: 200W
• Max Power Excluding PoE: 10W

Switching: 802.3 Protocols:
• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3z 1000BASE-X
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE

Grounding Methods:
• Three-Prong Plug

EMS:
• IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
• IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV

Environment:
• Operating Temperature: 0~40 ℃ (32~104 ℉)
• Storage Temperature: -40~70℃ (-40~158 ℉)
• Operating Humidity: 10~90% non-condensing
• Storage Humidity: 10~95% non-condensing

Mechanical:
• Dimension: 320×207×44 mm
• Weight: 1789 g
• Casing Material: Metal
• Installation: Desktop, Rackmount via Brackets

• GS1018PS2
• Power Cord
• Mounting Kit
• Installation Guide
