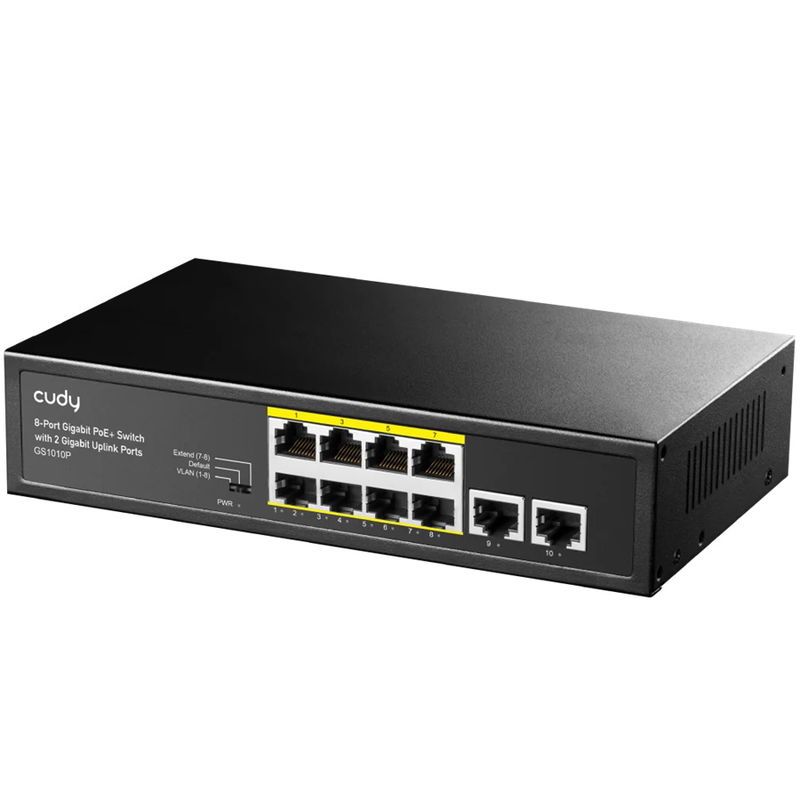

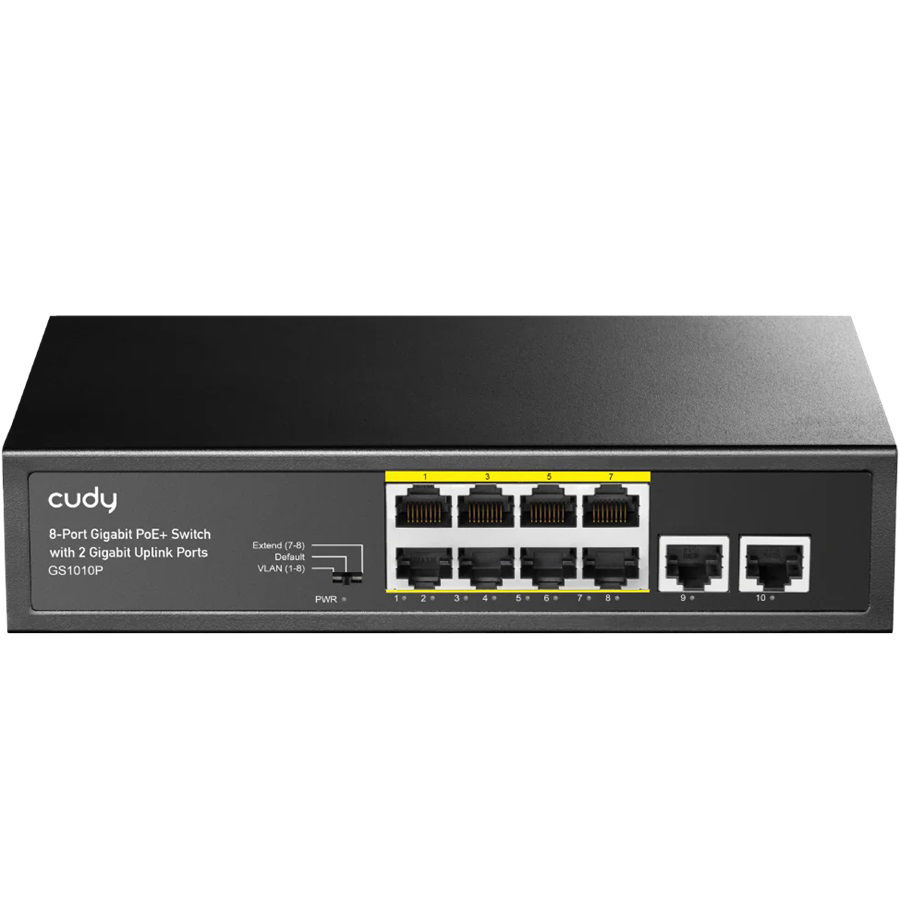

CUDY GS1010P 8-Port Gigabit PoE+ Unmanaged Switch with 2 Gigabit Uplink Ports

A rack-mounted 10-GbE PoE switch with a 120W power supply and a silent cooling system.

• 8× GbE with 802.3at/af Mode A PoE
• 2× Uplink GbE
• 120W Power Supply
• Default/VLAN/Extend Modes
• Watchdog under VLAN or Extend Modes
• Desktop, Rack-Mount

Interfaces:

• Gigabit RJ45 Ports: 10
• Gigabit RJ45 PoE Ports: #1~#8
• Max Power on a Single PoE Port: 30W
• PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
• Extend Mode Ports: #7~#8
• VLAN Mode Ports: #1~#8
• LED: Power, Speed/Link/ACT of Each Ethernet Port, PoE Status of Each PoE Port
• Power Input, AC Inlet
• Physical Buttons: VLAN/Default/Extend DIP Switch

Performance Copper:

• Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 100 meters at Gigabit, Cat. 5e or higher cable: 250 meters at 10 Mbps
• Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
• MAC Address Table: 2048
• Max Switching Capacity: 20 Gbps
• Max Forwarding Rate: 14.88 Mpps
• Jumbo Frame: 2 KB
• Packet Buffer: 448 Kbit

Power:

• Power Methods: AC
• AC: 100-240V~, 50/60Hz
• Power Supply: 120W
• Max Power Excluding PoE: 10W

Switching: 802.3 Protocols:

• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE

Grounding Methods:

• Three-Prong Plug

Environment:

• Operating Temperature: 040 ℃ (32104 ℉)
• Storage Temperature: -4070℃ (-40158 ℉)
• Operating Humidity: 10~90% non-condensing
• Storage Humidity: 10~95% non-condensing

Mechanical:

• Dimension: 220×150×44 mm
• Weight: 630 g
• Casing Material: Metal
• Installation: Desktop, Rackmount via Brackets (Brackets not included in the box)

• GS1010P
• Power Cord
• Installation Guide
