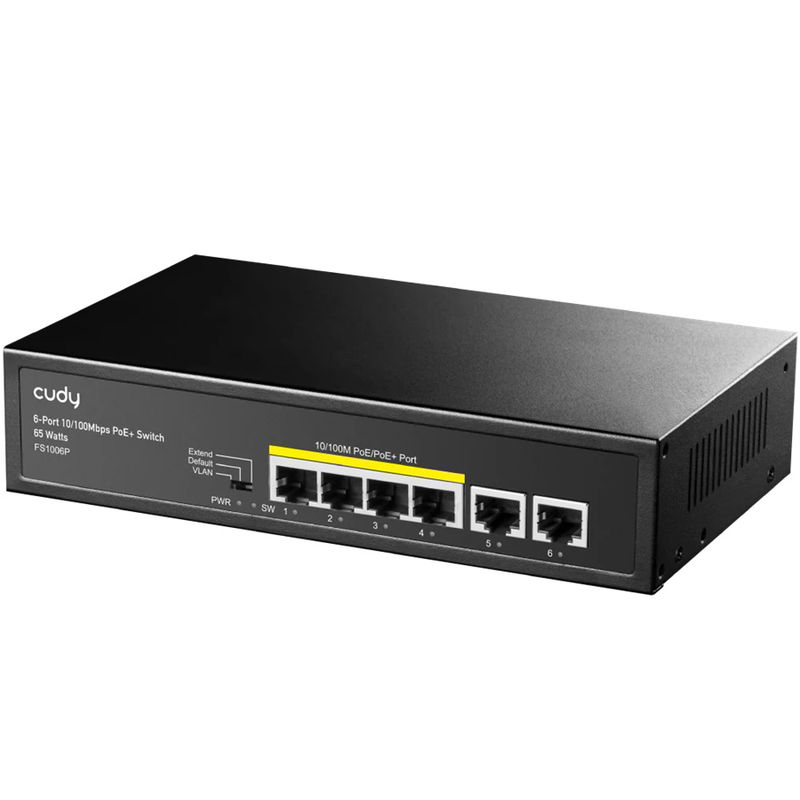

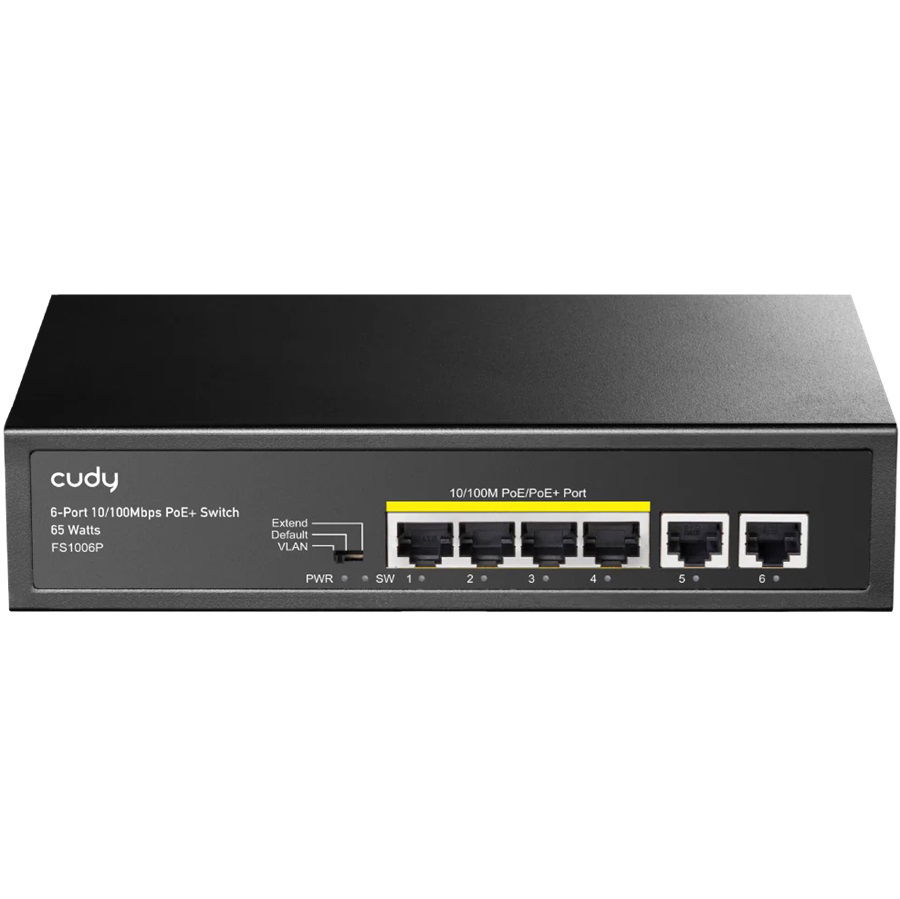

CUDY FS1006P 6-Port 10/100M PoE+ Unmanaged Switch with 4-Port PoE

A wall-mounted 6-FE PoE switch with a 65W power supply and a silent cooling system.

• 4× FE with 802.3at/af Mode A PoE
• 2× Uplink FE
• 65W Power Supply
• Default/VLAN/Extend Modes
• Watchdog under VLAN or Extend Modes
• Desktop Installation

Interfaces:

• 10/100 Mbps RJ45 Ports: 6
• 10/100 Mbps RJ45 PoE Ports: #1~#4
• Max Power on a Single PoE Port: 30W
• PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
• Extend Mode Ports: #1~#4
• VLAN Mode Ports: #1~#4
• LED: Power, Link/ACT of Each Ethernet Port, DIP Mode (SW)

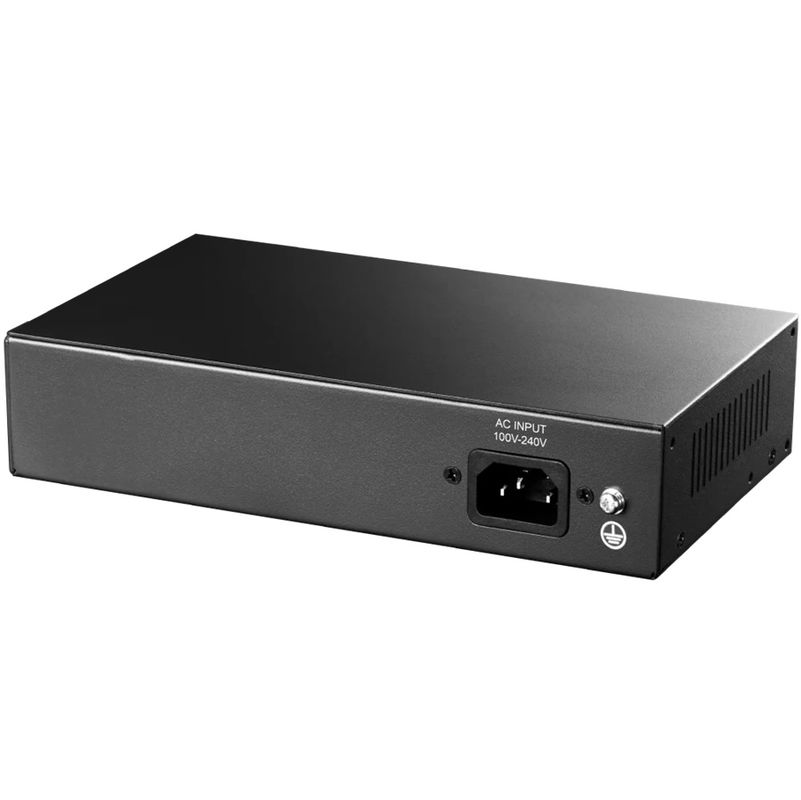

• Power Input: AC Inlet
• Physical Buttons: VLAN/Default/Extend DIP Switch

Performance:

• Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 250 meters at 10 Mbps
• Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
• MAC Address Table: 1024
• Max Switching Capacity: 1.2 Gbps
• Max Forwarding Rate: 0.8928 Mpps

Power:

• Power Methods: AC
• AC: 100-240V~, 50/60Hz
• Power Supply: 65W
• Max Power Excluding PoE: 1W

Switching: 802.3 Protocols:

• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE

Grounding Methods:

• Three-Prong Plug
• Grounding Point

Environment:

• Operating Temperature: 040 ℃ (32104 ℉)
• Storage Temperature: -4070℃ (-40158 ℉)
• Operating Humidity: 10~90% non-condensing
• Storage Humidity: 10~95% non-condensing

Mechanical:

• Dimension: 200 × 118 × 44 mm
• Casing Material: Metal
• Installation: Desktop, Wall-mount

• FS1006P
• Power Cord
• Installation Guide
