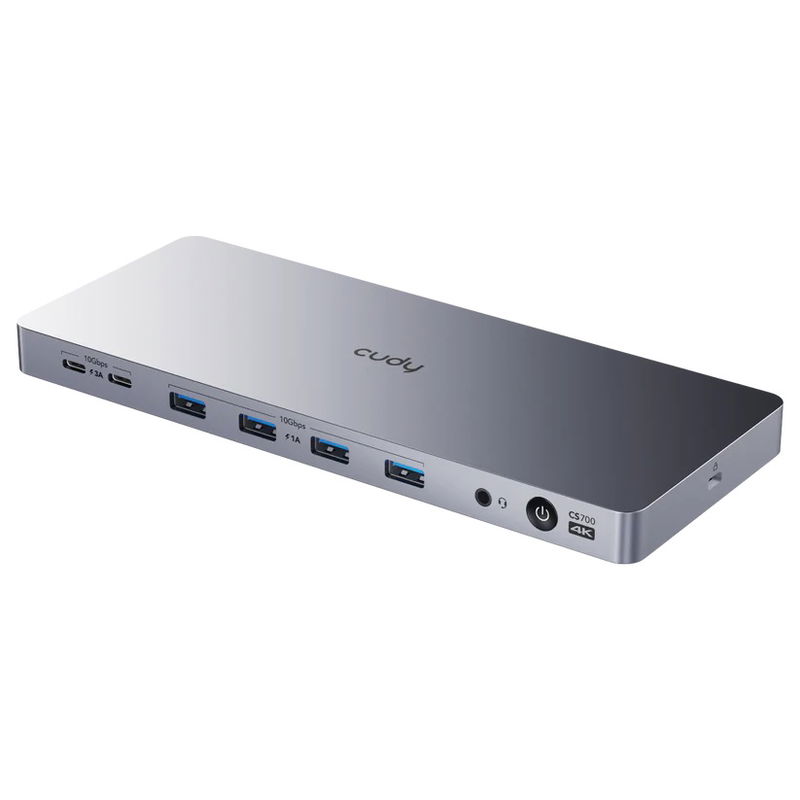

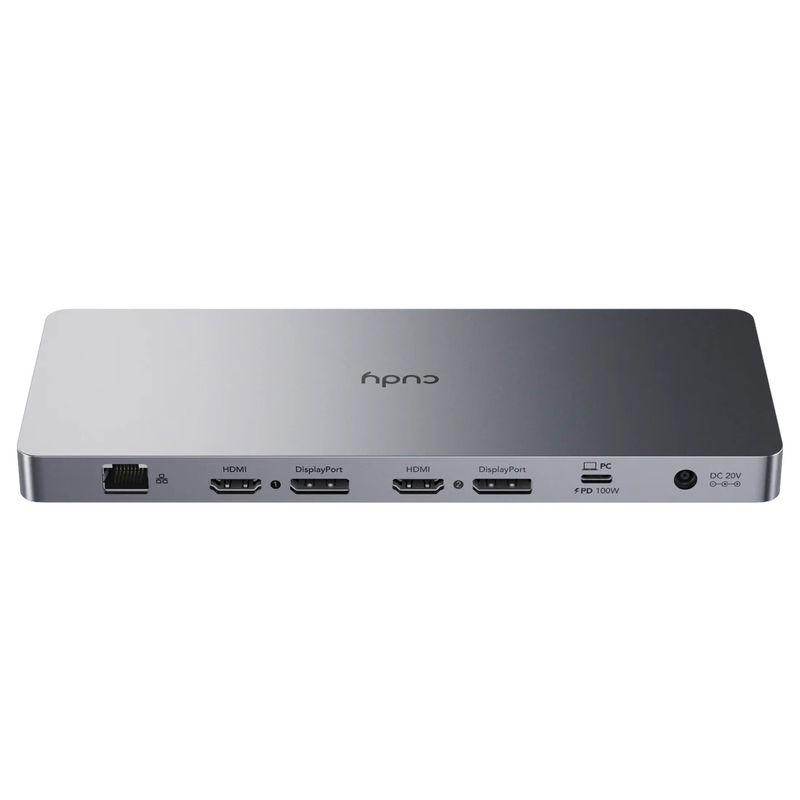

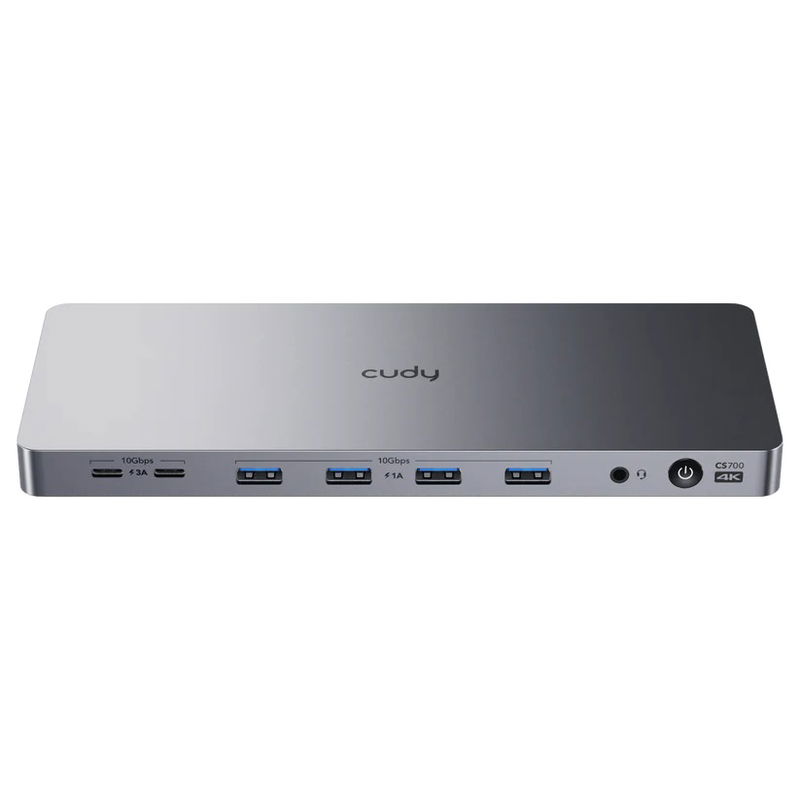

CUDY CS700 100W 13-in-1 USB-C Dual 4K Laptop Docking Station with 2x DP, 2x HDMI, 2x USB-C, 4x USB-A, 1x 3.5mm, 1x RJ45

USB-C docking station that extends USB-C to two 4K video outputs in the mirror or extend mode, 150W adapter included. Unlocks Macbook Air's one screen extension limitations.

• Dual 4K or one 5K video output with dual HDMI 2.0 ports and dual DP 1.2a ports
• 100 Watts Fast Charge PD with four charging profiles simplifies power cable management
• Super-fast data transfer with 10 Gbps bandwidth delivers responsive file transfer and display
• Six USB ports, a Gigabit ethernet, and an Audio combo port maximize the expansion efficiency
• Compatible with systems with a USB-C 3.2 Gen 2 / USB4 / Thunderbolt 3/4 port

Interfaces:

• Upstream USB: 1x USB-C 3.2 Gen 2 Ports (10 Gbps, Max 100W Charging)
• USB: 2× USB-C 3.2 Gen 2 Ports (10 Gbps, Max 14W Charging Each); 4× USB-A 3.2 Gen 2 Ports (10 Gbps, Max 5W Charging Each)
• Video Output: 2× DisplayPort 1.2a, 2× HDMI 2.0: Supporting resolution up to—1×5K (5120×2880) 60 Hz, or 2×4K (4096×2160) 60 Hz
• Network: 1× Gigabit RJ45 Port
• Audio and Mic: 1×3.5 mm Combo Jack
• Power Input: DC Jack
• Buttons: Power On/Off
• LED: Power

Hardware:

• Chipset: DisplayLink 6950-N
• Power Methods: DC
• DC: 20V 7.5A
• Power Supply: External Power Adapter: Input: 100 ~ 240 V, 50/60 Hz; Output: 20 V ⎓ 7.5 A
• Max Power Consumption: 150W
• Idle Power Consumption: 5W

Physical:

• Color: Silver Gray Color, Matte Finish
• Made from a Single Block of Aluminum (CNC Machining)
• Anti-Scratch Design (Al6061 T5 Base Material, Sandblasting, and Anodization)
• Security: 1×Kensington Security Slot
• Dimension (WxDxH): 210 × 85 × 15.5 mm
• Weight: ~ 350 g

Hardware Requirement:

• Requires a USB-C 3.2 Gen 2 / USB4 / Thunderbolt 3/4 Port

Compatible OS:

• Windows 7 or later
• macOS 10.14 or later
• Ubuntu LTS 18.04 or later
• ChromeOS build RS1 or later
• Android 5 or higher (Max 1× 1080P. Ethernet Disabled)
• Nintendo Switch system software (When the PD-IN port is receiving power)
• Driver Installation: Auto driver installation for Windows 10/11 and ChromeOS R51+. Manual driver installation is required for macOS, Windows 7/8/8.1, and Ubuntu. DisplayLink Presenter app is required on Android.

Environment:

• Operating Temperature: -20–60 °C (-10–140 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

• Docking Station
• Power Adapter
• Quick Installation Guide
