Product Description:

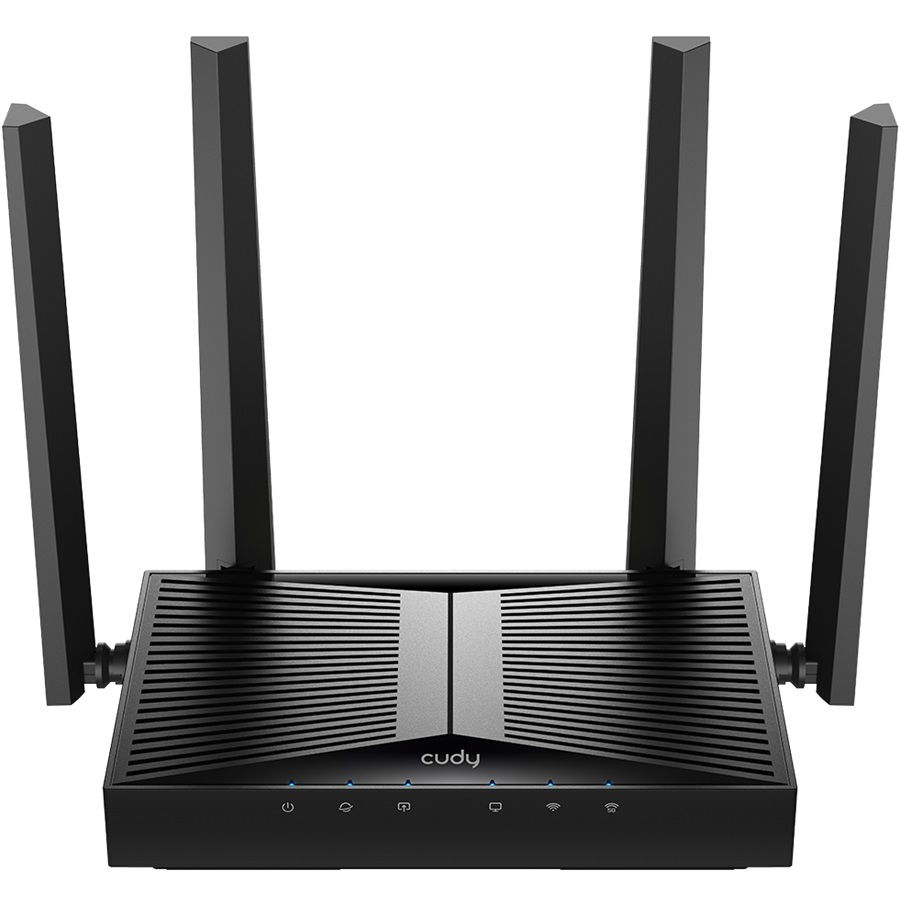

CUDY BE3600 2.5G Dual-Band Wi-Fi 7 Router
A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed, one 2.5G WAN, and four Gigabit LAN, catering to multi-Gig internet access, gaming, and entertainment scenarios.
Features:
Powerful CPU. Super-Responsive:
Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.
Optimal Wi-Fi Range for Extra Rooms:
The high-gain antennas with advanced active and passive Beamforming technology offer stronger, more focused Wi-Fi signals towards client devices, delivering faster speeds and greater stability throughout your home or office.
Connect 200 Devices and Stay Fast:
The upgrade OFDMA in Wi-Fi 7 features Multi-RU that provides smarter frequency allocation to improve capacity. The Preamable Puncturing technology makes the most of available channel resources to keep connections fast regardless of interferences in other channels.
Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.
Optimal Wi-Fi Range for Extra Rooms:
The high-gain antennas with advanced active and passive Beamforming technology offer stronger, more focused Wi-Fi signals towards client devices, delivering faster speeds and greater stability throughout your home or office.
Connect 200 Devices and Stay Fast:
The upgrade OFDMA in Wi-Fi 7 features Multi-RU that provides smarter frequency allocation to improve capacity. The Preamable Puncturing technology makes the most of available channel resources to keep connections fast regardless of interferences in other channels.
Specifications:
CPU:
• CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage:
• Flash/ROM: 128 MB (1 Gbit) NAND
• DDR/RAM: 512 MB (4 Gbit) DDR3L
Wireless:
• 5 GHz Wi-Fi Speed: 2882 Mbps
• 2.4 GHz Wi-Fi Speed: 688 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 4× Fixed
• 5 GHz Antenna Gain Max: 5.5dBi
• 2.4 GHz Antenna Gain Max: 5.4dBi
• FEM or PA/LNA: 5 GHz: 2× External, 2.4 GHz: 2× Internal
• Beamforming: True
• Range Performance: Max: 220 m (722 ft)
• Wall Performance: Two wooden walls with thickness < 10 cm (4''), One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces:

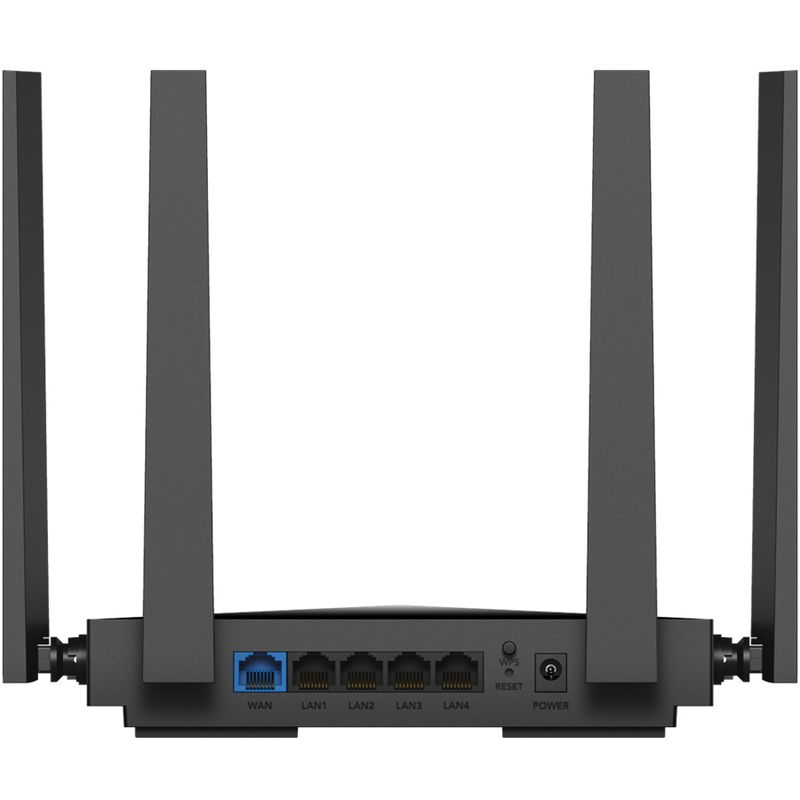

• 2.5G RJ45 Ports: 1
• Gigabit RJ45 Ports: 4
• Ethernet Notes: The 2.5G port is WAN port, the Gigabit ports are LAN ports
• LED: Power, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
• Physical Buttons, WPS Button, Reset Button
• Power Input: DC Jack
Power:
• Power Methods: DC
• DC Input: 12V 1A
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC
• Max Power Consumption (W): 10W
Environment:
• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing
Mechanical:
• Installation: Desktop, Wall-mount
• Device Dimension: 183.3×109×38 mm
• Each Antenna Dimension: 175 mm
• Weight: 332.0 g
• CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage:
• Flash/ROM: 128 MB (1 Gbit) NAND
• DDR/RAM: 512 MB (4 Gbit) DDR3L
Wireless:
• 5 GHz Wi-Fi Speed: 2882 Mbps
• 2.4 GHz Wi-Fi Speed: 688 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 4× Fixed
• 5 GHz Antenna Gain Max: 5.5dBi
• 2.4 GHz Antenna Gain Max: 5.4dBi
• FEM or PA/LNA: 5 GHz: 2× External, 2.4 GHz: 2× Internal
• Beamforming: True
• Range Performance: Max: 220 m (722 ft)
• Wall Performance: Two wooden walls with thickness < 10 cm (4''), One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces:
• 2.5G RJ45 Ports: 1
• Gigabit RJ45 Ports: 4
• Ethernet Notes: The 2.5G port is WAN port, the Gigabit ports are LAN ports
• LED: Power, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
• Physical Buttons, WPS Button, Reset Button
• Power Input: DC Jack
Power:
• Power Methods: DC
• DC Input: 12V 1A
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC
• Max Power Consumption (W): 10W
Environment:
• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing
Mechanical:
• Installation: Desktop, Wall-mount
• Device Dimension: 183.3×109×38 mm
• Each Antenna Dimension: 175 mm
• Weight: 332.0 g
Package Contents:
• WR3600H
• Power Adapter
• Ethernet Cable
• Installation Guide
• Power Adapter
• Ethernet Cable
• Installation Guide
