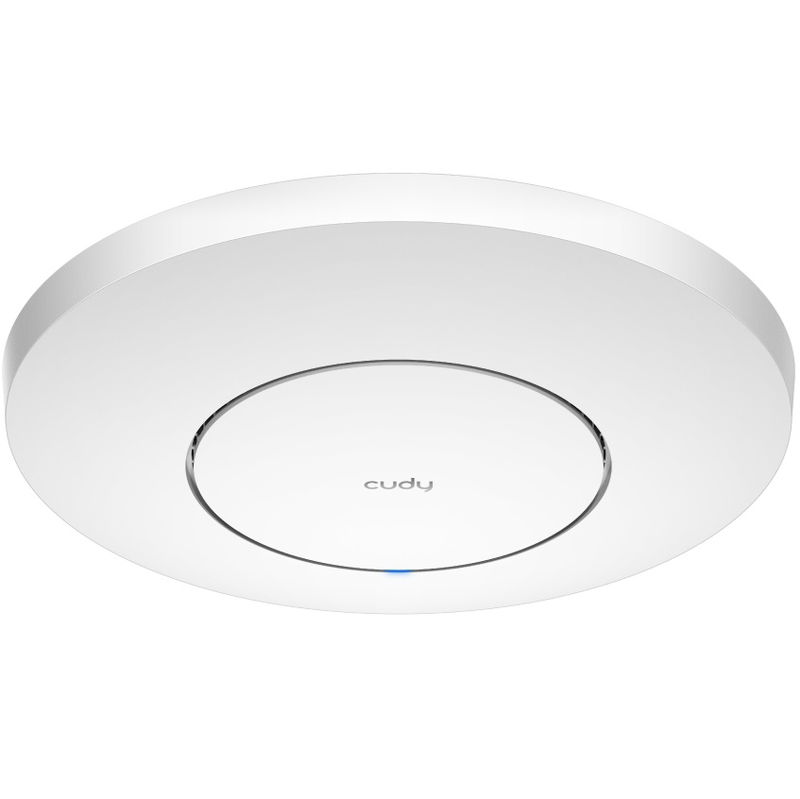

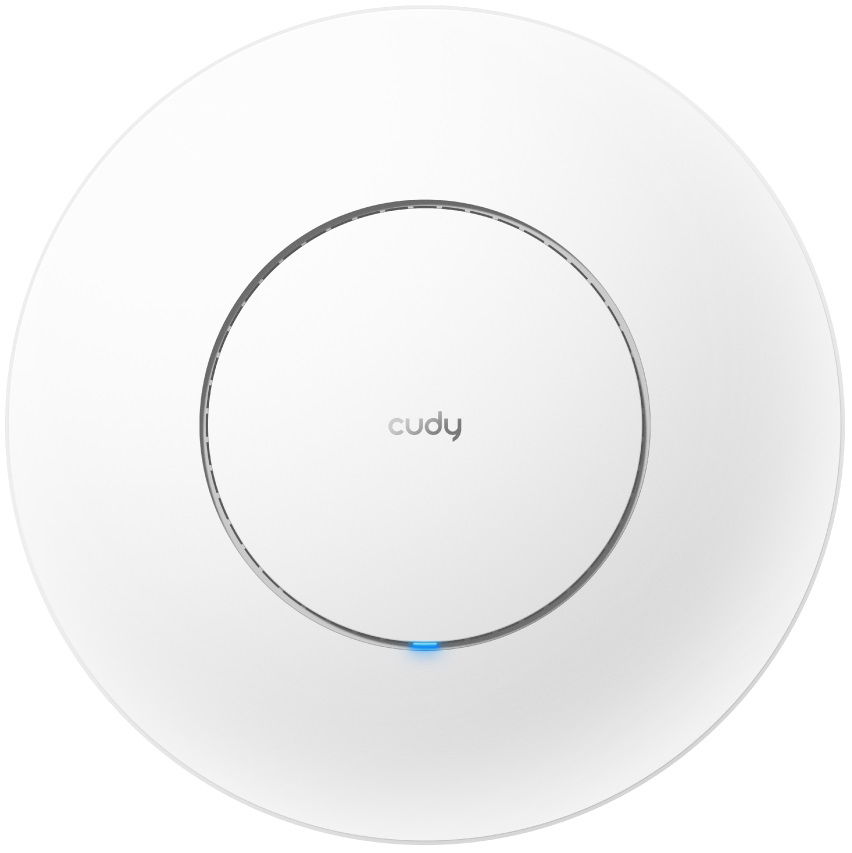

CUDY AC1200 Gigabit Mu-mimo 802.3af PoE Wi-Fi Wireless Indoor Access Point

A wall/ceiling-mounted WiFi AP designed for offices and classrooms.

• Dual-Band Wi-Fi: Simultaneous 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for totals 1167 Mbps Wi-Fi speeds.
• Flexible Power Supply: Support 802.3af/at, 24-57 V Passive PoE or 12 V DC.
• Advanced Wireless Technology: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

Highlights:

• CPU: 880 MHz Dual-Core Processors
• Chip: MT7621DA+MT7613B+MT7603E
• Flash: 16 MB (128 Mbit)
• DDR: 128 MB (1 Gbit)

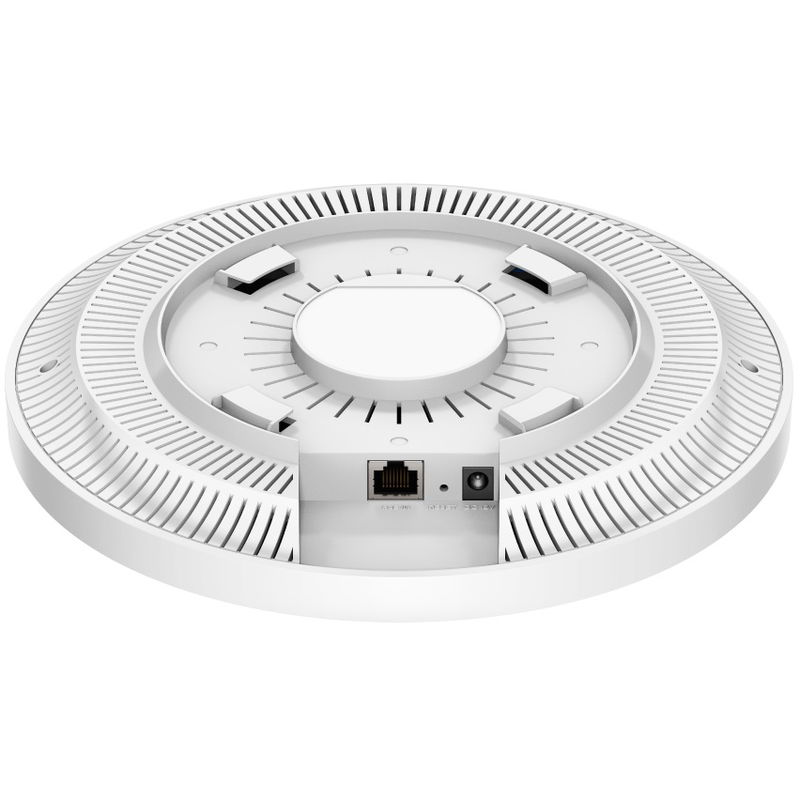

Interface:

• 1× Gigabit Ethernet (RJ-45) Port (Support IEEE802.3af PoE and Passive PoE)
• 1× Reset Button
• 1× DC Jack

Power Supply:

• 802.3af/at PoE
• 24-57 V Passive PoE (+4,5pins; -7,8pins)
• 12 V DC

Dimensions ( W×D×H ):

• 232×232×57.1mm

Antenna Type:

• 4 Internal Omni-directional Antennas

Mounting kit included for:

• Ceiling Mounting
• Wall Mounting

Wireless Standard:

• Wi-Fi 5 (802.11ac/n/g/b/a)

Frequency:

• 2.4 GHz and 5 GHz

Signal Rate:

• 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps

Bandwidth:

• 20/40/80 MHz

Transmit Power:

• CE: < 20 dBm (2.4 GHz), < 23 dBm (5.15 - 5.25 GHz)
• FCC: < 30 dBm (2.4 GHz), < 30 dBm (5.15 - 5.825 GHz)

Operation Modes:

• Wireless Access Point
• Wireless Router
• Wireless Extender
• WISP Mode
• Mesh (Satellite)

Environments:

• Operating Temperature: -10 °C ~ 65 °C (14 °F ~149 °F)
• Storage Temperature: -40 °C ~ 70 °C (-40 °F ~ 158 °F)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

System Requirements:

• Microsoft Windows, macOS, Linux, or Unix
• Firefox 12+, Chrome 20+, Safari 4+, or other browser
• A Cable or DSL Modem, or other devices providing Internet
• Subscription with an internet service provider for internet access

• Access Point
• 12 V DC Adapter
• Mounting Kit
• Installation Guide
