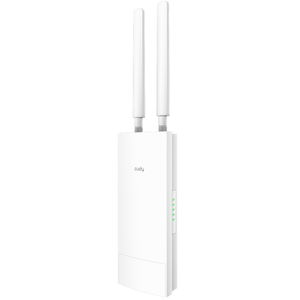

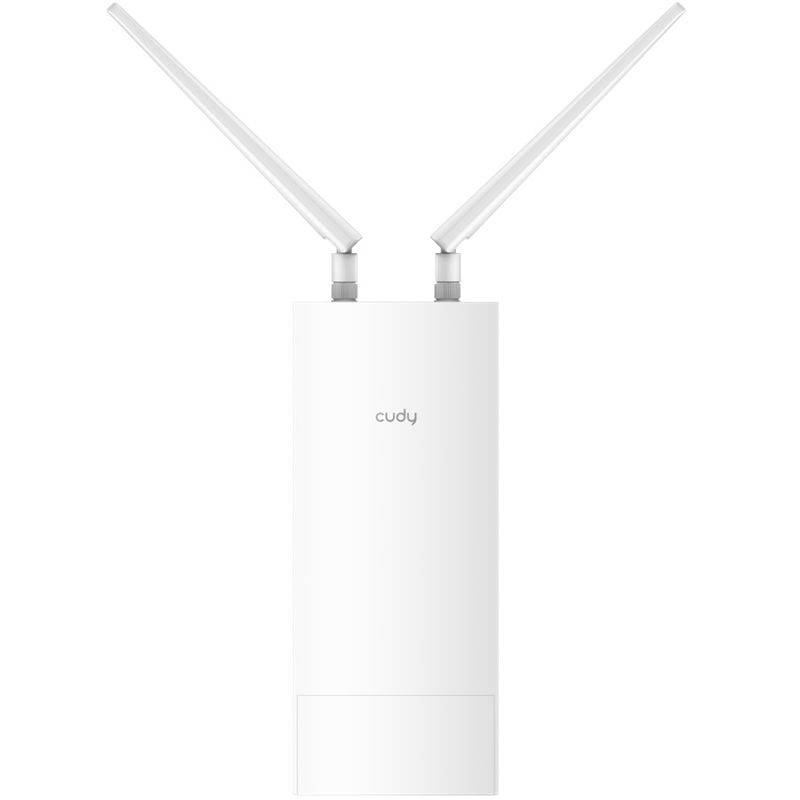

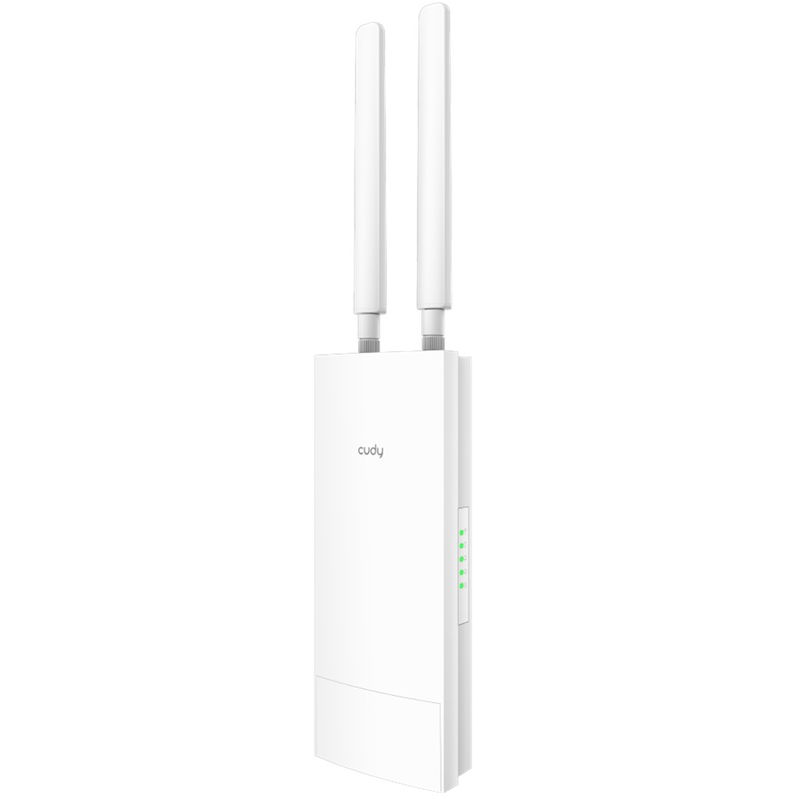

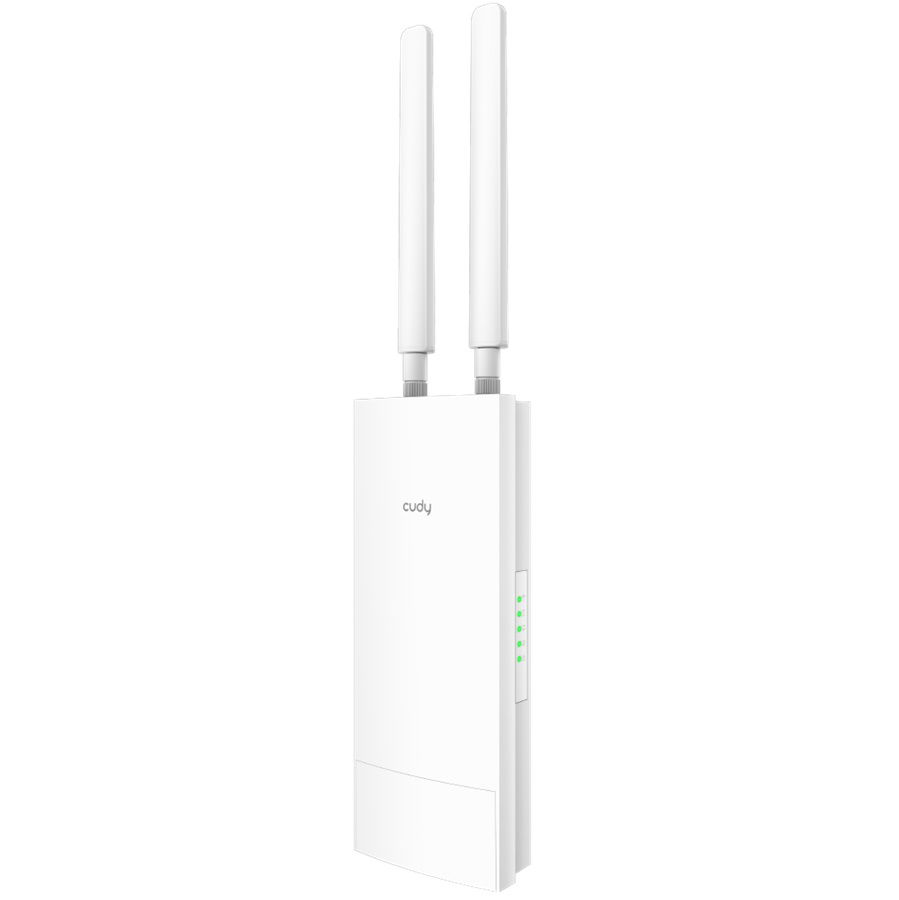

CUDY AC1200 Dual Band PoE Gig IP65 Wi-Fi Outdoor Access Point

A pole/wall-mounted WiFi AP with IP65 casing, PoE, and Cudy Mesh features, ideal for park, farm, and parking lot environments.

Speedy Dual-Band AC1200 Wi-Fi:
With MU-MIMO and dual-band features, the AC1200 Wi-Fi AP can connect to over 30 devices while minimizing latency. The maximum number of simultaneous connections per AP is 128 devices.

Boosted Wi-Fi Coverage with Beamforming:
Tested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two external antennas. If your space is too large for one access point to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.

Works in Rain, Thunder, Dust, Heat, Cold:
The AP is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 4 kV Lightning/Surge and 8 kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40 to 149 °F (-40 to 65 °C).

Seamless Roaming for Smooth Wi-Fi Experience:
Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching.

Simply Plug and Unplug for Mesh Setup:
Connect the PoE adapter LAN port to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC to add the new AP to the Mesh network. Feel free to unplug it or keep using Ethernet backhaul after pairing. (Requires firmware newer than 1.15.28, the other Cudy Mesh device needs to be purchased separately)

Leave the Rest to Adaptive Routing:
Adaptive Routing improves the system's awareness of the capacity used by each node. Once the backhaul path is jammed by clients or interfered with by environmental factors, it will automatically switch to a better path for improved stability.

CPU:

• CPU Details: 880 MHz Dual-Core CPU

Memory/Storage:

• Flash/ROM: 16 MB (128 Mbit) NOR
• DDR/RAM: 128 MB (1 Gbit) DDR3

Wireless:

• 5 GHz Wi-Fi Speed: 867 Mbps
• 2.4 GHz Wi-Fi Speed: 300 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 2× Detachable
• 5 GHz Antenna Gain Max: 4.37 dBi
• 2.4 GHz Antenna Gain Max: 4.46 dBi
• FEM or PA/LNA: 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
• Detachable Wi-Fi Antennas Connector: RP-SMA Female
• Beamforming: True
• Wall Performance: NA

Range Performance:

• Max: 170 m (558 ft)
• Park: 150 m (492 ft)
• Street: 50 m (164 ft)
• Woods: 30 m (98 ft)

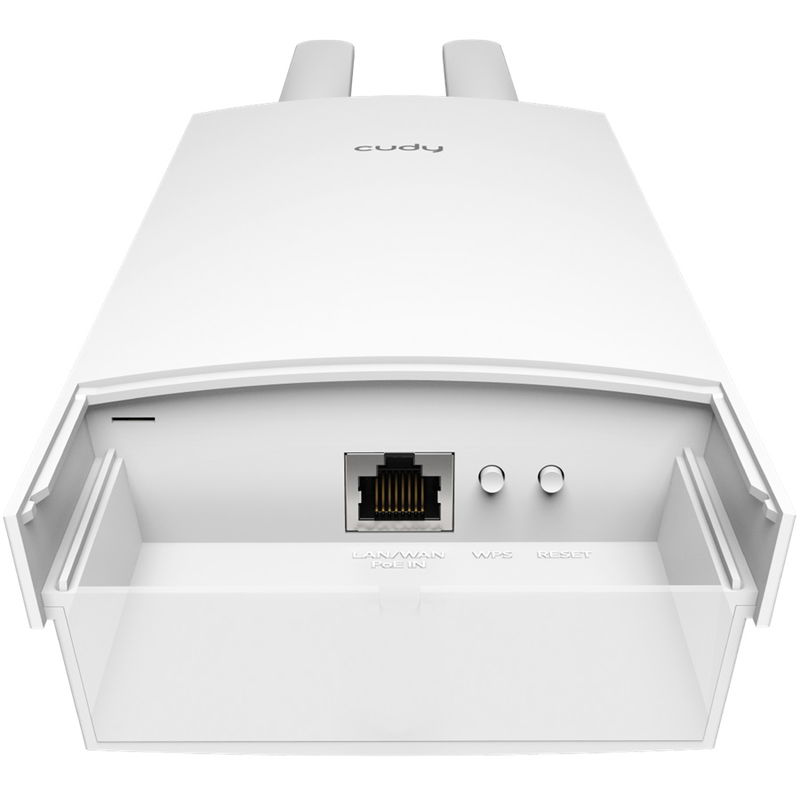

Interfaces:

• Gigabit RJ45 Ports: 1
• Ethernet Notes: Accepts PoE powering
• LED: 5 GHz Wi-Fi, 2.4 GHz Wi-Fi, LAN, Internet, System
• Physical Buttons: Reset Button
• Power Input: PoE via Ethernet Port

Power:

• Power Methods: 802.3at/af PoE, Passive PoE
• Passive PoE: 24 ~ 57V
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 48V Passive PoE
• Max Power Consumption (W): 11 W
• Idle Power Consumption (W): 7.5 W

Reliability:

• Advanced: Hardware Watchdog
• EMS: ESD: Contact: 4kV; Air: 8kV; IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
• Ingress Protection Rating: IP65 When devices is installed vertically

Environment:

• Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
• Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

Mechanical:

• Installation: Wall-mount, Pole-mount

Dimension:

• Device Body: 240×100×53.7 mm
• Each Antenna: 197.5×21.6×15.5 mm

System Requirements:

• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

• AP1300 Outdoor
• Detachable Antennas
• PoE Adapter
• Power Cord
• Mounting Kit
• Ethernet Cable
• Installation Guide
