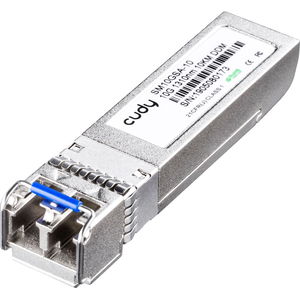

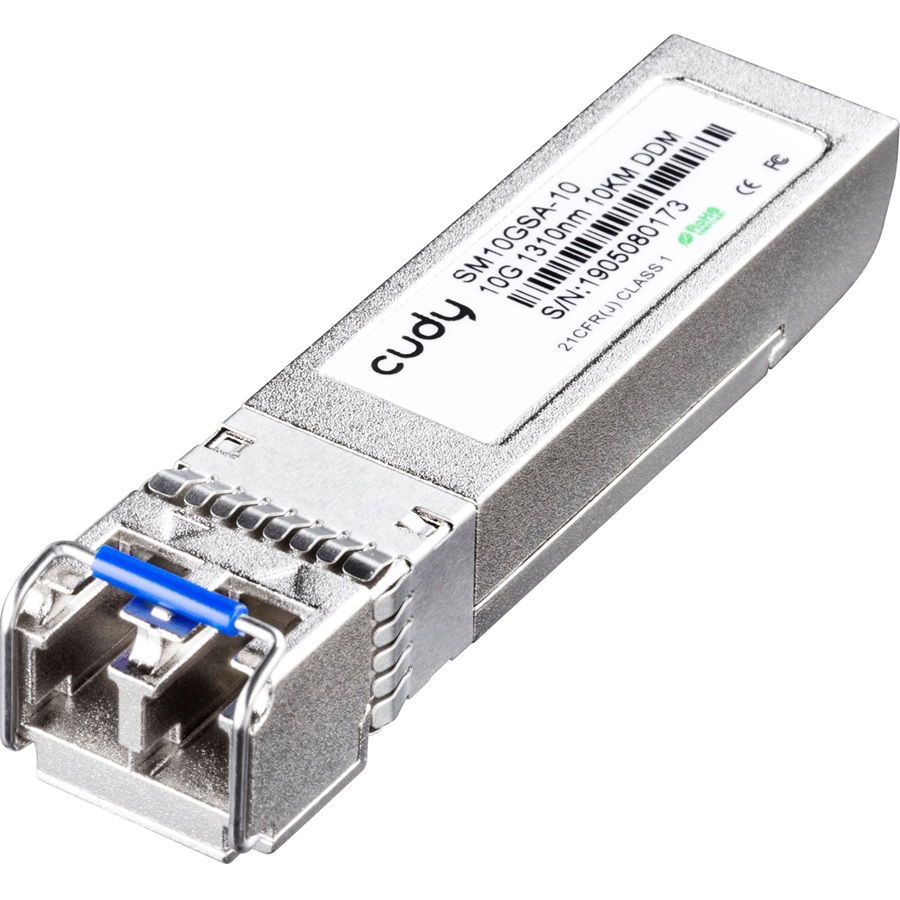

CUDY 10G Single Mode Fibre LC SFP+ Transceiver Module

CUDY 10G Single Mode Fibre (SMF) LC SFP+ Module. 1310nm, 10KM

• SFP+ package with LC connector
• 1310nm DFB Laser and PIN photo detector
• Up to 10km transmission on SMF
• Power dissipation < 1W
• LVPECL compatible data input/output interface
• Low EMI and excellent ESD protection
• laser safety standard IEC-60825 compliant

Application:

• Ethernet
• Fiber Channel

Absolute Maximum Ratings:

• Storage Temperature: -40 - +85 °C
• Supply Voltage: +3.6 V
• Operating Relative Humidity: 85 %

Operation Environment:

• Supply Voltage: 3.15 - 3.45 V
• Operating Case Temperature: +70 °C
• Power Dissipation: 1 W
• Data Rate: 10.3125 Gbps

Optical Characteristics: Transmitter Section:

• Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V
• Center Wavelength: 1290 - 1330 nm
• Side-Mode Suppression Ratio: 35 dB
• Average Output Power: -5 - +0.5 dBm
• Extinction Ratio: 3.5 dB
• Dispersion Penalty: 3.2 dB
• Relative Intensity Noise: -128 dB/Hz
• Total jitter: IEEE 802.3ae

Optical Characteristics: Receiver Section:

• Center Wavelength: 1310 nm
• Receiver Sensitivity: -13 dBm
• Stressed Sensitivity: -12 dBm
• Receiver Overload: -3 dBm
• Return Loss: 12 dB
• LOS Assert LOSA: -28 dBm
• LOS Dessert LOSD: -14 dBm
• LOS Hysteresis: 0.5 - 4

Electrical Characteristics: Transmitter Section:

• Input Differential Impedance: 90 - 110 Ohm
• Data Input Swing Differential: 180 - 700 mV
• TX Disable: Disable: 2.0 - Vcc V
• TX Disable: Enable: 0.8 V
• TX Fault: Assert: 2.0 - Vcc V
• TX Fault: Deasser: 0.8 V

Electrical Characteristics: Receiver Section:

• Output differential impedance: 100 Ohm
• Data output Swing Differential: 300 - 800 mV
• Rx_LOS: Assert: 2.0 - Vcc V
• Rx_LOS: Deassert: 0.8 V

• Compatible with RoHS
• Compatible with SFF8472
