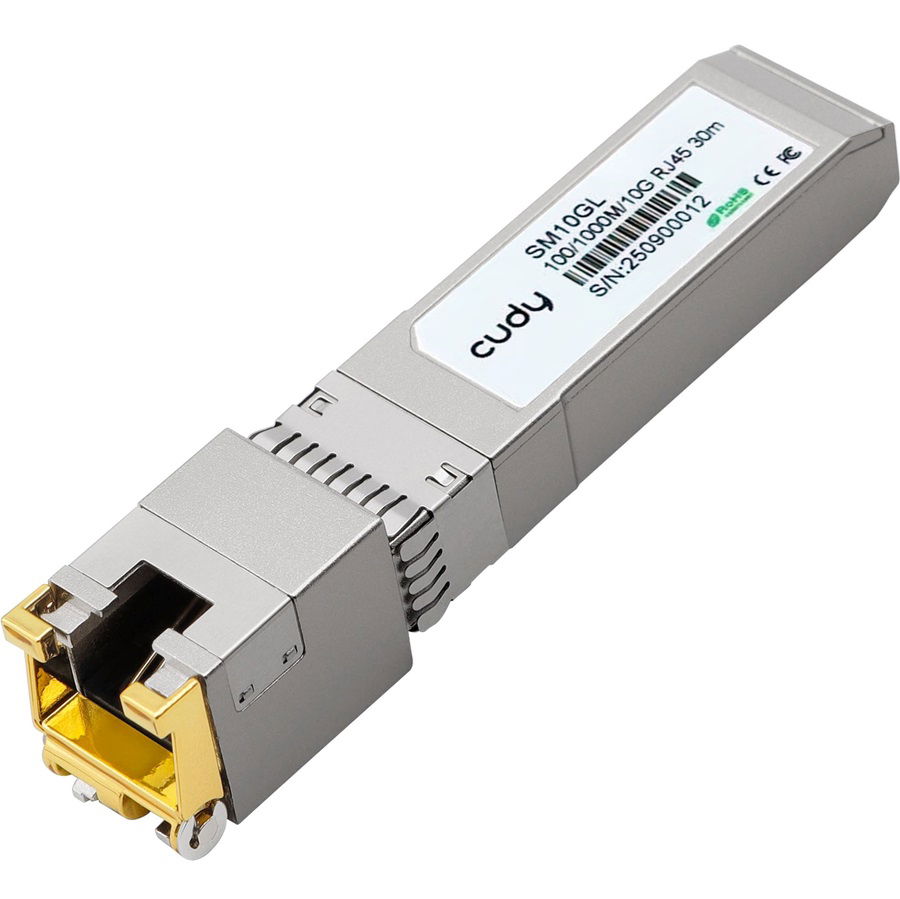

CUDY 10G SFP+ to 10G RJ45 Module Marvell

SM 10GL Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards specified in IEEE Std 802.3. SM 10GL uses the SFP's RX_LOS (must be pulled up on the host) pin for link indication. If you pull up or open SFP's TX_DISABLE pin, PHY IC be reset.

• Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T on line port
• Support 10Gbase-R on host port
• Hot-pluggable SFP footprint
• Compact RJ-45 connector assembly
• RoHS compliant and lead-free
• Single +3.3V power supply
• 10 Gigabit Ethernet over Cat 6a cable
• Ambient Operating temperature: 0°C to +60°C

Cable Length:

• 10Gbase-T: CAT6A: 30m

+3.3 Volt Electrical Power Interface:

• Supply Current: 800 - 1000 mA
• Input Voltage: 3.13 - 3.47 V
• Maximum Voltage: 4 V

Low-Speed Signals, Electronic Characteristics:

• SFP Output LOW: 0.5 V
• SFP Output HIGH: host_Vcc -0.5, host_Vcc + 0.3 V
• SFP Input LOW: 0.8 V
• SFP Input HIGH: 2 - Vcc + 0.3 V

High-Speed Electrical Interface, Transmission Line-SFP:

• Line Frequency: 125 MHz
• Tx Output Impedance: 100 Ohm
• Rx Input Impedance: 100 Ohm

High-Speed Electrical Interface, Host-SFP:

• Single ended data input swing: 250 - 1200 mV
• Single ended data output swing: 350 - 800 mV
• Rise/Fall Time: 175 psec
• Tx Input Impedance: 50 Ohm
• Rx Output Impedance: 50 Ohm

General:

• Data Rate: 10 Gb/sec

Environmental Specifications:

• Operating Temperature: 60 °C
• Storage Temperature: -40 - 85 °C
