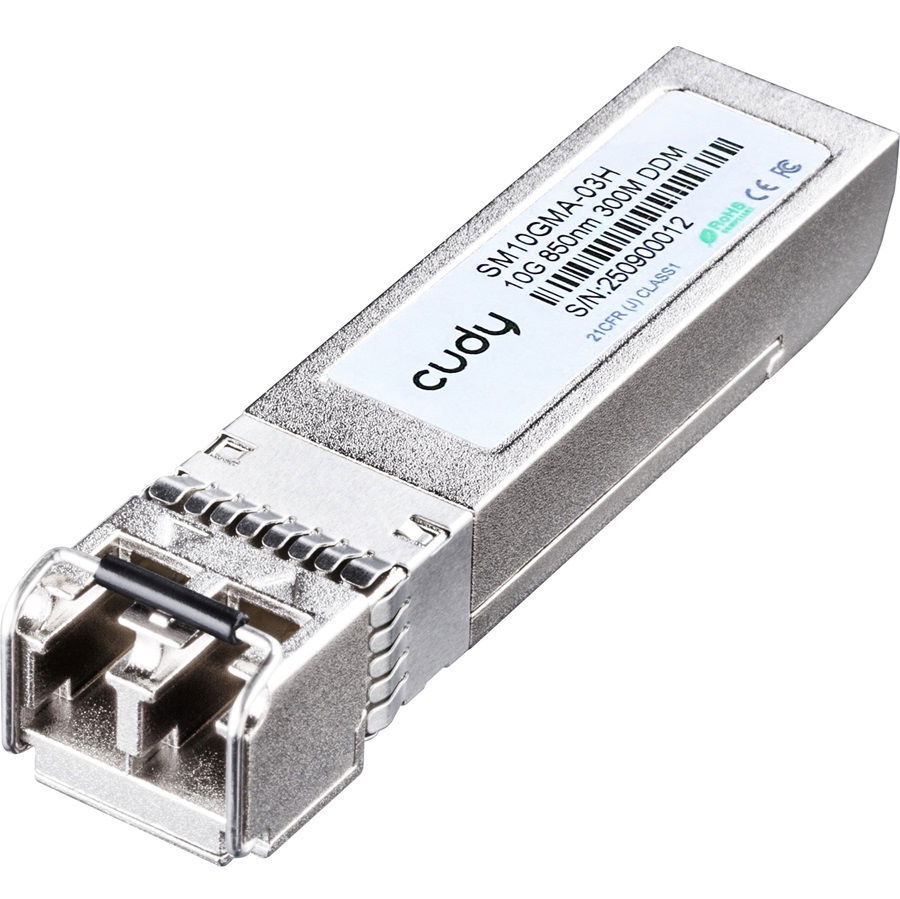

CUDY 10G Multi Mode Fibre LC SFP+ Transceiver Module
Cudy SM10GMA-03H is a 10Gb/s SFP+ transceiver module designed for long-distance single-mode fiber (SMF) networks, supporting connections up to 10 kilometers via dual-LC connectors.
Features:
• SFP+ package with LC connector
• 850nm VCSEL Laser and PIN photo detector
• Up to 300m transmission on 2000MHz-km MMF
• Up to 11.3Gbps Data Links
• Power dissipation < 1W
• LVPECL compatible data input/output interface
• Low EMI and excellent ESD protection
• Laser safety standard IEC-60825 compliant
• 850nm VCSEL Laser and PIN photo detector
• Up to 300m transmission on 2000MHz-km MMF
• Up to 11.3Gbps Data Links
• Power dissipation < 1W
• LVPECL compatible data input/output interface
• Low EMI and excellent ESD protection
• Laser safety standard IEC-60825 compliant
Specifications:
Application:
• 10GBASE-SR/SW 10G Ethernet
• 1200-Mx-SN-I 10G Fibre Channel
Absolute Maximum Ratings:
• Storage Temperature: -40 to +85 °C
• Supply Voltage: +3.6 V
• Operating Relative Humidity: 85%
Operation Environment:
• Ambient Operating Temperature 0°C to +70 °C, Vcc =3.3 V
• Supply Voltage: 3.15 - 3.45 V
• Operating Case Temperature: +70 °C
• Power Dissipation: 1 W
• Data Rate: 10.3125 Gbps
Optical Characteristics: Transmitter Section:
• Center Wavelength: 840 - 860 nm
• RMS Spectral Width: 0.45 dB
• Average Output Power: -5 dBm
• Extinction Ratio: 3.0 dB
• Dispersion Penalty: 3.9 dB
• Relative Intensity Noise: -128 dB/Hz
• Total jitter: IEEE 802.3ae
Optical Characteristics: Receiver Section:
• Center Wavelength: 850 nm
• Receiver Sensitivity: -11.5 dBm
• Stressed Sensitivity: -10.5 dBm
• Receiver Overload: 0 dBm
• Return Loss: 12 dB
• LOS Assert: -25 dBm
• LOS Dessert: -13 dBm
• LOS Hysteresis: 0.5 - 4
Electrical Characteristics: Transmitter Section:
• Input Differential Impedance: 90 - 110 Ohm
• Data Input Swing Differential: 180 - 700 mV
• TX Disable: Disable: 2.0 - Vcc V
• TX Disable: Enable: 0 - 0.8 V
• TX Fault: Assert: 2.0 - Vcc V
• TX Fault: Deassert: 0 - 0.8 V
Electrical Characteristics: Receiver Section:
• Output differential impedance: 100 Ohm
• Data output Swing Differential: 300 - 800mV
• Rx_LOS: Assert: 2.0 - Vcc V
• Rx_LOS: Deassert: 0 - 0.8 V
Maximum Supported Distances:
• Fiber Type: 850nm OFL BandWidth
• 62.5 um: 160MHz-km: 26 m
• 62.5 um: 200MHz-km: 33 m
• 50 um: 400MHz-km: 66 m
• 50 um: 500MHz-km: 82 m
• 50 um: 2000MHz-km: 300 m
• 10GBASE-SR/SW 10G Ethernet
• 1200-Mx-SN-I 10G Fibre Channel
Absolute Maximum Ratings:
• Storage Temperature: -40 to +85 °C
• Supply Voltage: +3.6 V
• Operating Relative Humidity: 85%
Operation Environment:
• Ambient Operating Temperature 0°C to +70 °C, Vcc =3.3 V
• Supply Voltage: 3.15 - 3.45 V
• Operating Case Temperature: +70 °C
• Power Dissipation: 1 W
• Data Rate: 10.3125 Gbps
Optical Characteristics: Transmitter Section:
• Center Wavelength: 840 - 860 nm
• RMS Spectral Width: 0.45 dB
• Average Output Power: -5 dBm
• Extinction Ratio: 3.0 dB
• Dispersion Penalty: 3.9 dB
• Relative Intensity Noise: -128 dB/Hz
• Total jitter: IEEE 802.3ae
Optical Characteristics: Receiver Section:
• Center Wavelength: 850 nm
• Receiver Sensitivity: -11.5 dBm
• Stressed Sensitivity: -10.5 dBm
• Receiver Overload: 0 dBm
• Return Loss: 12 dB
• LOS Assert: -25 dBm
• LOS Dessert: -13 dBm
• LOS Hysteresis: 0.5 - 4
Electrical Characteristics: Transmitter Section:
• Input Differential Impedance: 90 - 110 Ohm
• Data Input Swing Differential: 180 - 700 mV
• TX Disable: Disable: 2.0 - Vcc V
• TX Disable: Enable: 0 - 0.8 V
• TX Fault: Assert: 2.0 - Vcc V
• TX Fault: Deassert: 0 - 0.8 V
Electrical Characteristics: Receiver Section:
• Output differential impedance: 100 Ohm
• Data output Swing Differential: 300 - 800mV
• Rx_LOS: Assert: 2.0 - Vcc V
• Rx_LOS: Deassert: 0 - 0.8 V
Maximum Supported Distances:
• Fiber Type: 850nm OFL BandWidth
• 62.5 um: 160MHz-km: 26 m
• 62.5 um: 200MHz-km: 33 m
• 50 um: 400MHz-km: 66 m
• 50 um: 500MHz-km: 82 m
• 50 um: 2000MHz-km: 300 m
Requirements:
• Compatible with HP
• Compatible with RoHS
• Compatible with SFF8472
• Compatible with RoHS
• Compatible with SFF8472
