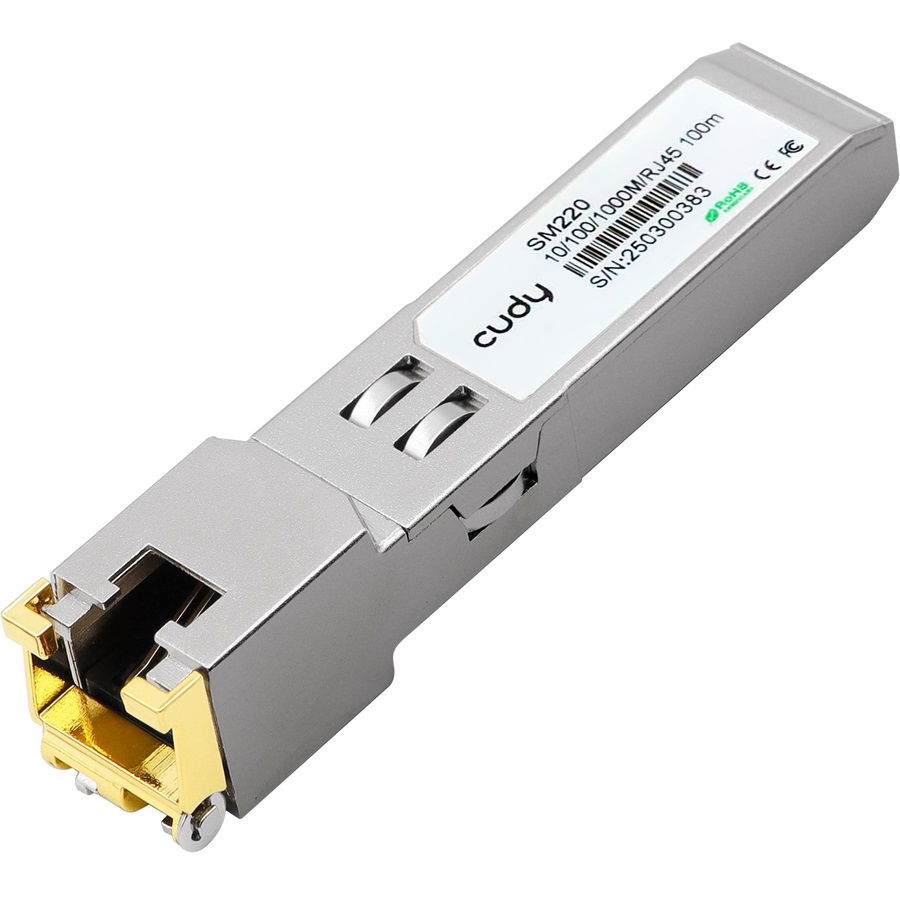

CUDY 1.25G SFP-T to 10/100/1000 Mbps RJ45 Module

SM220 Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE Std 802.3. The SM220 uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, IC be reset.

• Up to 1.25 Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Low power dissipation(1.05W typical)
• Compact RJ-45 connector assembly
• Fully metal enclosure, for lower EMI
• RoHS compliant and lead-free
• Single +3.3V power supply
• 10/100/1000 BASE-T operation in host systems with 1000BASE-X interface
• 1.25 Gigabit Ethernet over Cat 5 cable
• Ambient Operating temperature: 0°C to +70°C

SM220:

• Link Indicator on RX_LOS Pin: Yes
• Support 10/100/1000base-T: Yes
• Support SERDES: Yes

+3.3 Volt Electrical Power Interface:

• Supply Current: 375 mA
• Input Voltage: 3.13 - 3.47 V
• Maximum Voltage: 4 V
• Surge Current: 30 mA

Low-Speed Signals, Electronic Characteristics:

• SFP Output LOW: 0.5 V
• SFP Output HIGH: host_Vcc -0.5 - host_Vcc + 0.3 V
• SFP Input LOW: 0.8 V
• SFP Input HIGH: 2 - Vcc + 0.3 V

High-Speed Electrical Interface, Transmission Line-SFP:

• Line Frequency: 125 MHz
• Tx Output Impedance: 100 Ohm
• Rx Input Impedance: 100 Ohm

High-Speed Electrical Interface, Host-SFP:

• Single ended data input swing: 250 - 1200 mV
• Single-ended data output swing: 350 - 800 mV
• Rise/Fall Time: 175 psec
• Tx Input Impedance: 50 Ohm
• Rx Output Impedance: 50 Ohm

General:

• Data Rate: 10 - 1000 Mb/sec
• Cable Length: 100 m

Environmental Specifications:

• Operating Temperature: 70 °C
• Storage Temperature: -40 - 85 °C
