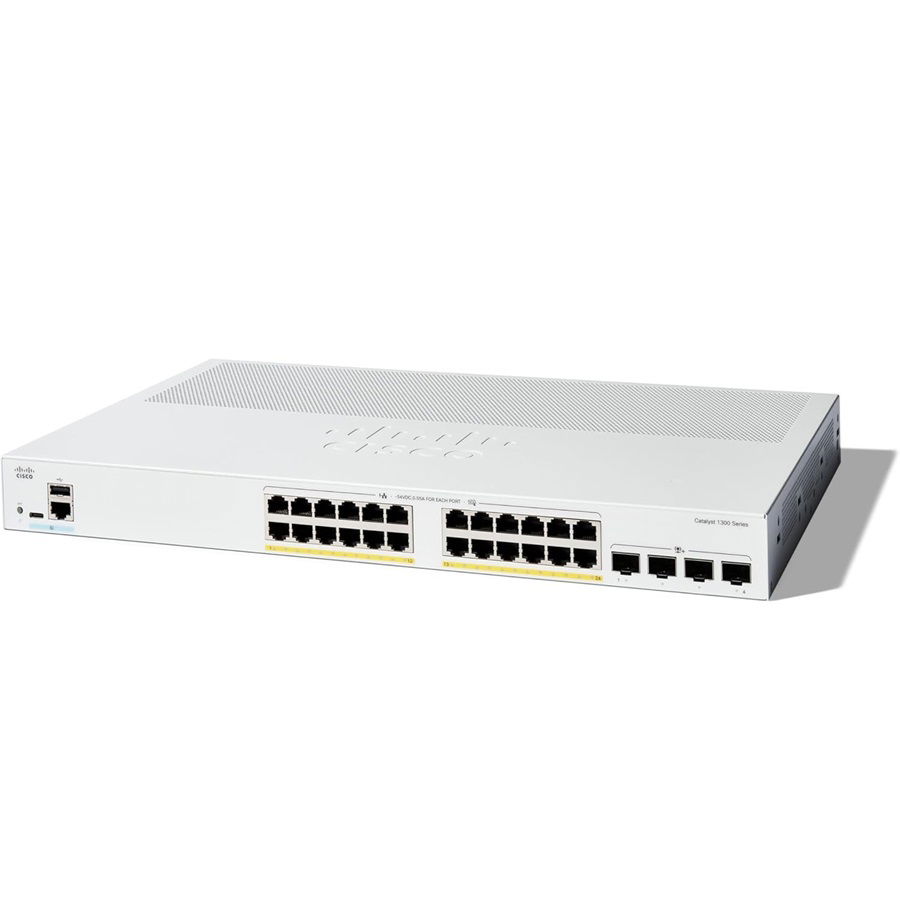

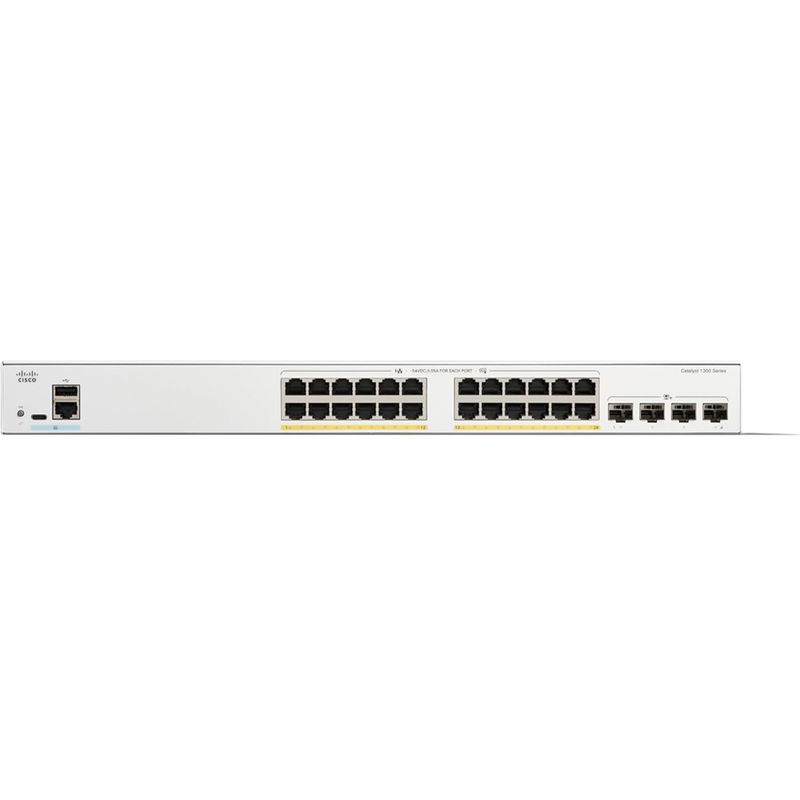

Cisco Catalyst 1300 24-port GE, PoE, 4x10G SFP+ Managed Switch

The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for branches and growing networks and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.

Flexible:
An extensive portfolio provides ultimate flexibility from 8 to 48 ports and Power over Ethernet (PoE+) combinations, optimized for energy efficiency for a sustainable future. Flexible models complement every stage of business growth.

Secure:
Prevent network breaches and segment traffic according to business needs with more advanced security features. Enhanced security capabilities provide a solid foundation to safeguard the privacy of your users.

Ease of management:
With front-panel stacking technology, up to eight interconnected Cisco Catalyst 1300 Series switches can operate as a single device with unified management control, simplifying management and reducing operational expenses.

Innovative design:
The switches’ elegant and compact design makes them ideal for installation outside of the wiring closet, such as in retail stores, open-plan offices, and classrooms.

• 24x 10/100/1000 PoE+ ports with 195W power budget
• 4x 10 Gigabit SFP+
• Rack-mountable
• Capacity in Millions of Packets Per Second (mpps) (64-byte packets): 95.23
• Hardware stacking: Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover (Family 1)
• Switching capacity in Gigabits per second: 128.0 Gbps
• Power over Ethernet (PoE): 802.3af PoE, 802.3at PoE+
• Power dedicated to PoE: 195W
• Number of ports that support PoE: 24
• System power consumption: 110V=31.4W; 220V=31.8W
• Power consumption (with PoE): 110V=235.8W; 220V=232.9W
• Heat dissipation (BTU/hr): 804.1
• Idle Power: 110V=13.9W; 220V=14.8W
• Total system ports: 24 x Gigabit Ethernet + 4 x 10G
• RJ-45 ports: 24 x Gigabit Ethernet
• Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]): 4 x SFP+
• Console port: Cisco standard RJ-45 console port and USB Type C port
• USB port: USB Type C port on the front panel of the switch for easy file and image management as well as console port
• Buttons: Reset button
• Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
• LEDs: System, Link/Act, PoE, Speed
• Flash: 512 MB
• CPU: ARM dual-core at 1.4 GHz
• DRAM: 1 GB DDR4
• Packet buffer: 1.5 MB
• Dimensions: 445 x 299 x 44 mm
• Weight: 3.95 kg
• Power: 100-240V 50-60 Hz, internal, universal
• Operating temperature: 23° to 122°F (-5° to 50°C)
• Storage temperature: -13° to 158°F (-25° to 70°C)
• Operating humidity: 10% to 90%, relative, noncondensing
• Storage humidity: 10% to 90%, relative, noncondensing
• FAN (number): Fanless
• MTBF at 25°C (hours): 337,232

Minimum requirements:

• Web browser: Chrome, Firefox, Edge, Safari
• Category 5e Ethernet network cable
• TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed
