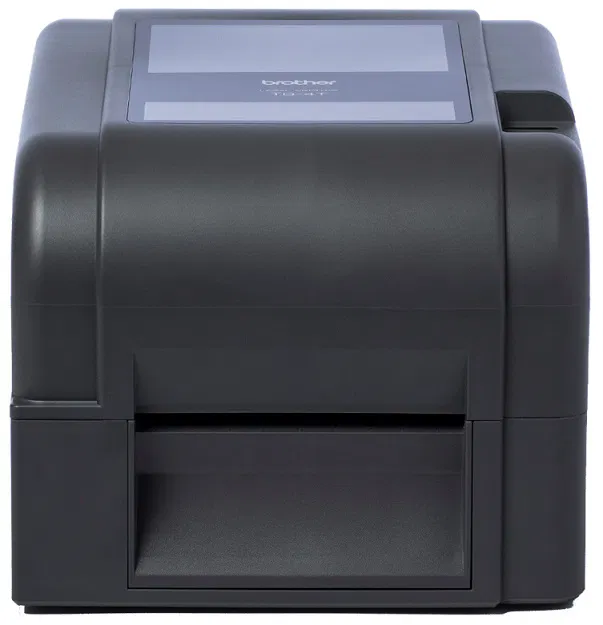

Brother TD-4420TN Thermal Transfer Desktop Label Printer + Label Roll Bundle

This versatile label printer uses media up to 112mm/4.41-inch wide and prints at 203dpi. It's high capacity ink ribbons require less frequent changing ensuring maximum up-time. Supplied as standard with USB, Ethernet and serial interfaces to ensure compatibility with your infrastructure. Enjoy less wait time thanks to a fast print speed of up to 152mm/second (6 ips). Integrate easily with your existing systems using one of the printer's popular printer command languages. The TD-4420TN uses innovative thermal transfer technology to create durable labels that stand up to the toughest of tests. SAP and BarTender compatibility* ensure it fits perfectly into your workflows, and there’s the added bonus of customisation options like label peelers, cutters and external roll holders. Plus, you can also use the in-built direct thermal technology to print high-volume, low-cost labels for everyday usage.

Thermal transfer printing for ultimate flexibility

• An industry standard 203dpi print resolution gives you crisp, easy-to-read logos, images and barcodes on coated and uncoated label stock using thermal transfer media and ink ribbons.

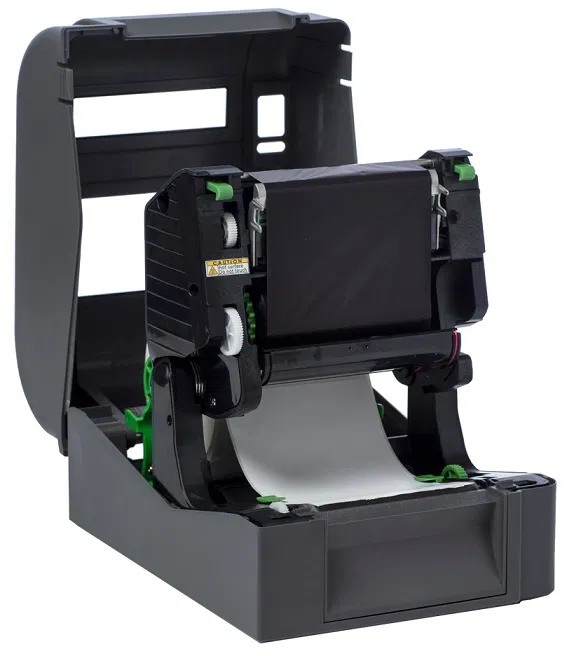

Thermal transfer print ribbons in wax or resin material to suit your application

• Standard or premium high capacity ribbons of up to 300 metres can be used, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.

Supports industry standard printer commands

• In addition to printing from Windows using the standard printer driver, you can integrate the Brother TD-4420TN label printer into your legacy systems thanks to ZPL/ZPL2 or EPL printer commands.

High print speed to improve efficiency

• Printing at speeds up to 152mm/second (6 inches per second) ensures staff will have their labels almost immediately, and can spend their time being more productive.

Wired connectivity to meet your exact needs

• USB, Ethernet and Serial ports are included as standard, ensuring the Brother TD-4420TN will connect to your current equipment and infrastructure without problem.

A range of accessories to improve staff efficiency

• Improve productivity by adding an optional label peeler, label cutter or external roll holder to use much larger capacity rolls and reduce printer downtime.

General:

• Buttons: Feed
• Flash RAM: 128 MB
• LED: Power, Data, Error
• RAM: 64 MB
• Technology: Thermal transfer / Direct thermal

Connectivity:

• Serial: RS-232C (DB9 female)
• USB interface: Type B: Ver. 2.0 High Speed | Type A: USB Host (mass storage device class)
• Wired network interface: 10/100 BASE-TX (ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP server, HTTP server, SNTP client, SMTP clpient, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP

Dimensions & weights:

• Dimensions (W x H x D): 204mm x 177.5mm x 280mm
• Weight: 2.50 kg

Printing:

• 1 dimensional barcode symbologies: Code128UCC, Code128 subsets A?B?C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
• 2 dimensional barcode symbologies: GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
• Bitmap fonts: FBPL: 8 alpha-numeric bitmap fonts
• Label detection sensor: Yes
• Maximum label width: 112 mm
• Outline/Vector fonts: Monotype Image TrueType font engine with one CG Triumvirate Bold Condensed font
• Resolution (dpi): 203
• Supported commands: FBPL-EZD (EPL, ZPL, ZPL2, DPL)
• Maximum print length: 25400 mm
• Maximum print width: 108 mm
• Standard print speed: 152 mm per second

Operating System & Software:

• Linux
• Mac OS X 10.10.x or higher
• Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 10, Windows 7, Windows 8, Windows 8.1

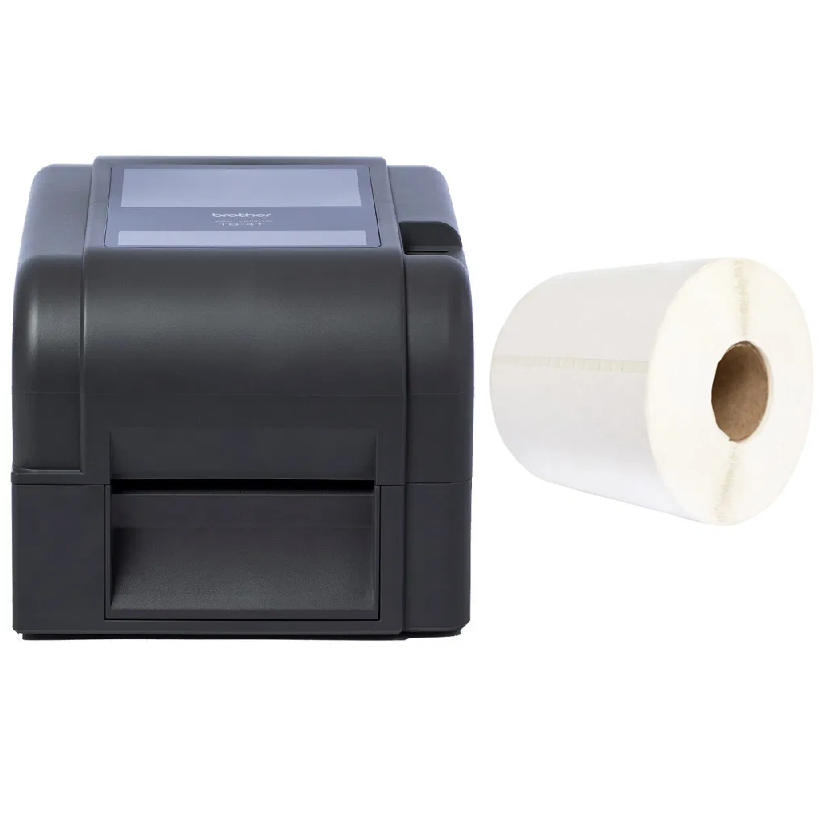

• 1x Brother TD-4420TN Thermal Transfer Desktop Label Printer
• 1x RDR330STDL 100 x 174mm Label Roll
