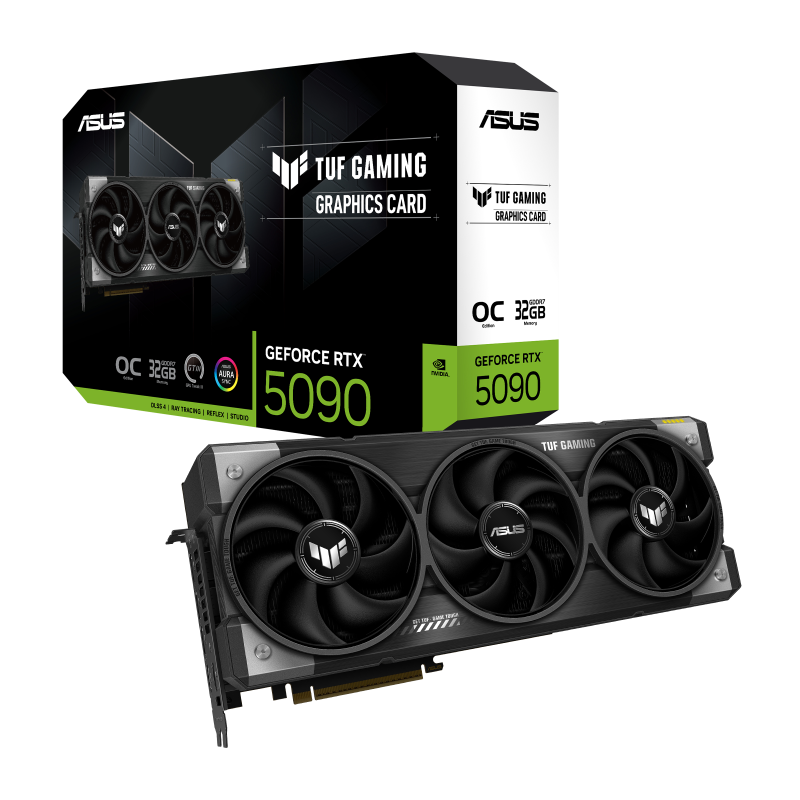

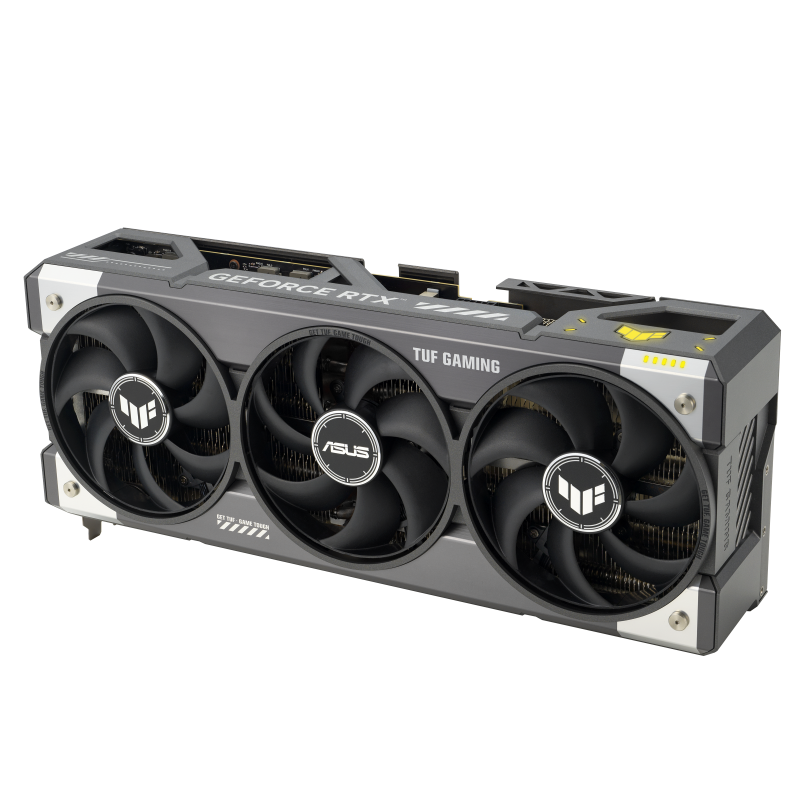

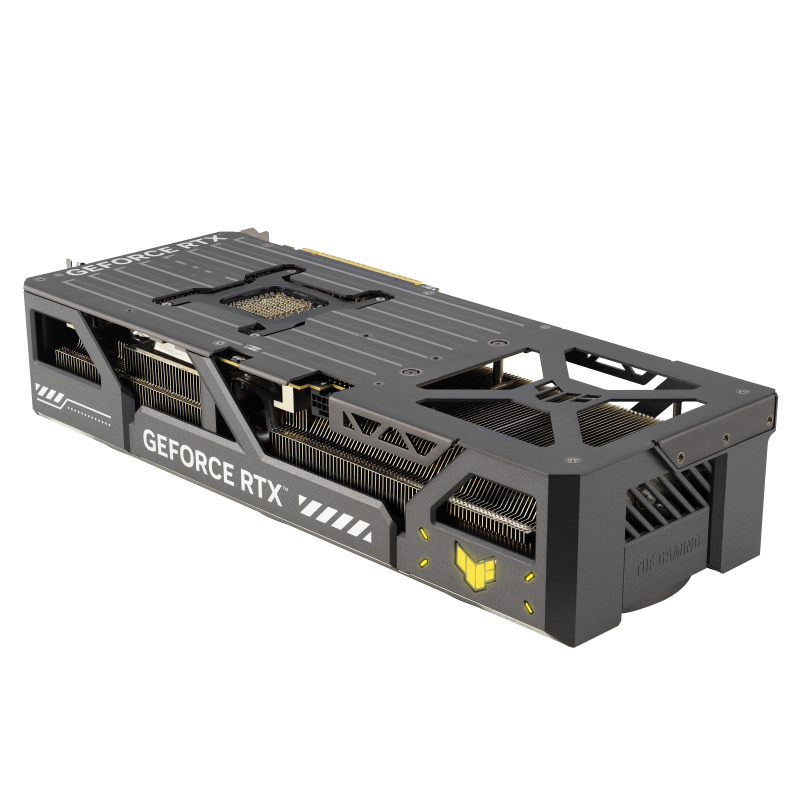

ASUS TUF-RTX5090-O32G-GAMING 32GB GDDR7 NVIDIA Graphics Card - HDMI, DisplayPort

NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load, and dominate with the TUF Gaming GeForce RTX 5090, designed to withstand the harshest conditions and deliver unparalleled performance.

TUF Chokes & MOSFETs:
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.

TUF Capacitors:
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.

Phase-Change GPU Thermal Pad:
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Protective PCB Coating:
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Dual-ball Fan Bearings:
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.

Cooling Mastery:
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.

MaxContact Design:
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

ASUS GPU Guard & Bracket:
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Auto−Extreme Technology:
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

• Model: TUF-RTX5090-O32G-GAMING
• Graphic Engine: NVIDIA GeForce RTX 5090
• AI Performance: 3551 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL4.6
• Video Memory: 32GB GDDR7
• Engine Clock: OC mode: 2580 MHz; Default mode: 2550 MHz(Boost clock)
• CUDA Core: 21760
• Memory Speed: 28 Gbps
• Memory Interface: 512-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface: x 2 (Native HDMI 2.1b), x 3 (Native DisplayPort 2.1b), HDCP Support (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Dimensions: 348 x 146 x 72 mm
• Recommended PSU: 1000W
• Power Connectors: 1 x 16-pin
• Slot: 3.6 Slot
• AURA SYNC: ARGB

• 1 x ASUS TUF-RTX5090-O32G-GAMING
• 1 x Speedsetup Manual
• 1 x TUF Graphics Card Holder
• 1 x TUF Velcro Hook & Loop
• 1 x TUF Magnet
• 1 x TUF Gaming Certificate
• 1 x Thank You Card
• 1 x Adapter Cable (1 to 4)
