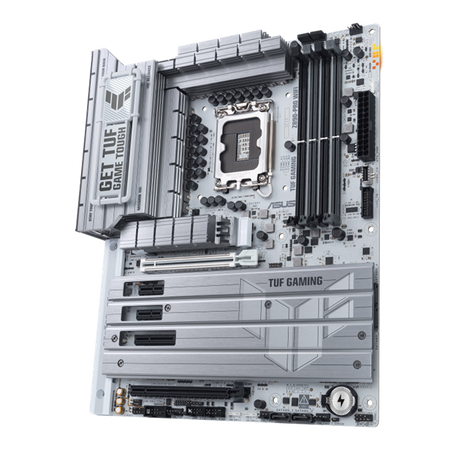

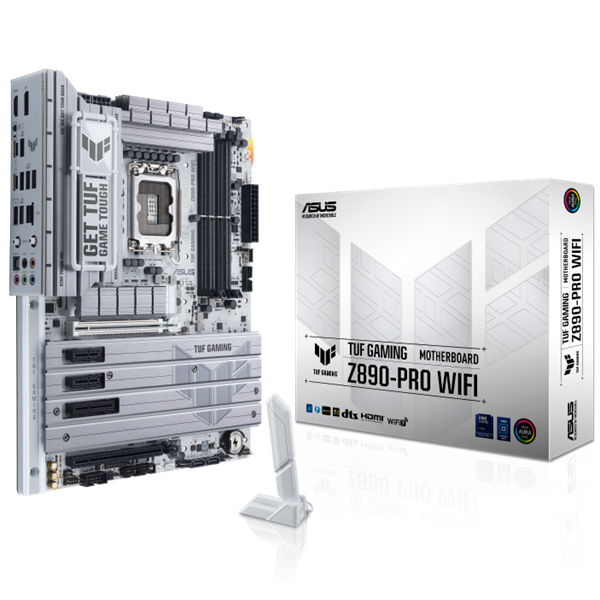

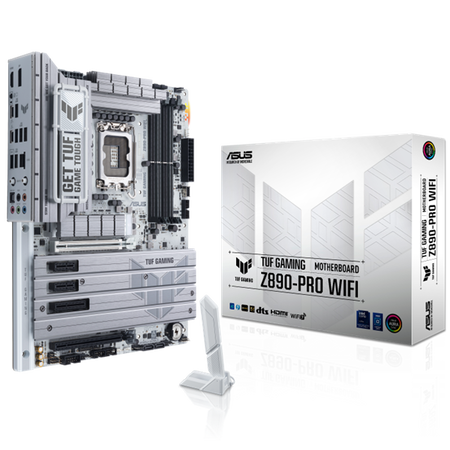

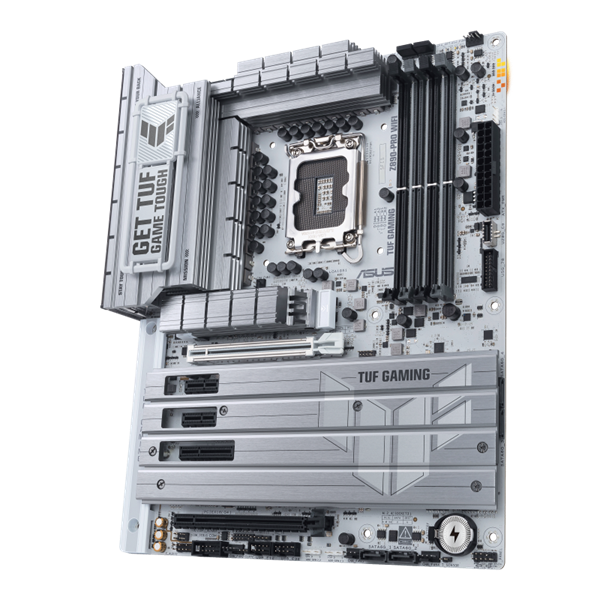

ASUS TUF GAMING Z890-PRO WIFI Intel LGA1851 Z890 ATX Wi-Fi Gaming Motherboard

ASUS TUF GAMING Z890-PRO WIFI takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Complete AI Solution:
ASUS AI Solutions - including AI Advisor, AI Overclocking, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization - offer smart assistance, one click overclocking, efficient cooling and new levels of ultrafast connectivity.​

NPU Boost:
The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

UEFI BIOS:
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

Premium Power Design:
Stable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

DRAM Overclocking Performance:
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

Cooler Compatibility:
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

CPU:

• Support Intel Core Ultra Processors (Series 2), LGA1851
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset:
Intel Z890 Chipset

Memory:

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMPIII)

Graphics:

• 1 x DisplayPort
• 1 x HDMI port
• 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs

Expansion Slots:

• Intel Core Ultra Processors(Series 2): 1 x PCIe 5.0 x16 slot
• Intel Z890 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slot, 2 x PCIe 4.0 x1 slots

Storage:

• Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel Core Ultra Processors(Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• Intel Z890 Chipset: M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

Ethernet:

• 1 x Intel 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth:

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth v5.4

USB:

• Rear USB (Total 8 ports): 2 x Thunderbolt 4 ports (2 x USB Type-C), 6 x USB 10Gbps ports (6 x Type-A)
• Front USB (Total 7 ports): 1 x USB 20Gbps (supports USB Type-C with up to 30W PD/PPS Fast-charge ), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• Audio Features: Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit

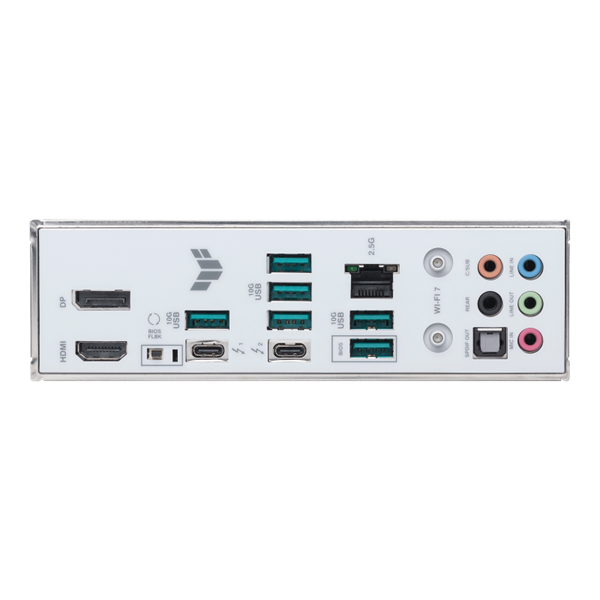

Back Panel I/O Ports:

• 2 x Thunderbolt 4 USB Type-C ports
• 6 x USB 10Gbps ports (6 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Intel 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button

Internal I/O Connectors:

• Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
• Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors
• Storage Related: 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
• USB: 1 x USB 20Gbps connector (supports USB Type-C), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous: 3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header, 1 x Thunderbolt™ (USB4®) header

BIOS:

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

• WOL by PME, PXE

Operating System:

• Windows 11 (22H2 & later)

Form Factor:

• ATX Form Factor
• 30.5 cm x 24.4 cm

• Cables: 2 x SATA 6Gb/s cables
• Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x M.2 Q-Slide package, 2 x M.2 rubber packages, 1 x Screw package for M.2 SSD, 1 x TUF GAMING sticker, 1 x TUF GAMING removable nameplate
• Documentation: 1 x Quick start guide
