Product Description:

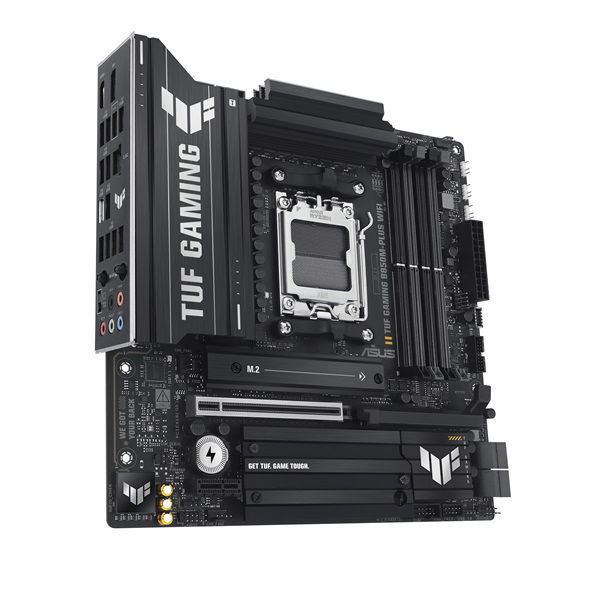

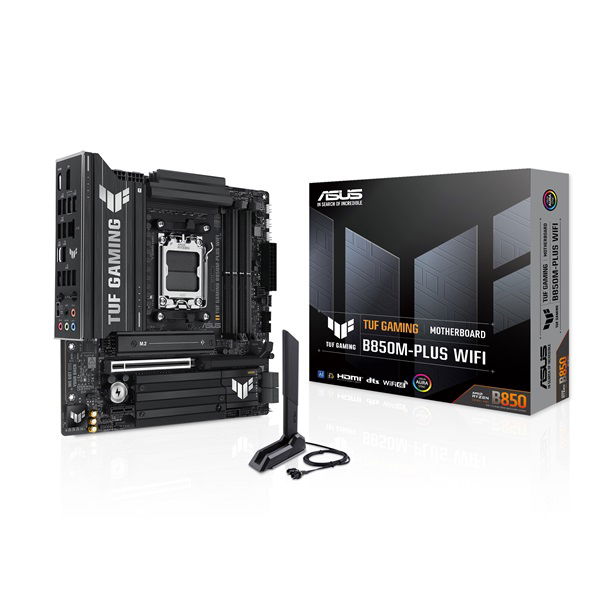

Asus TUF Gaming B850M-PLUS WIFI AMD AM5 B850 micro-ATX Gaming Motherboard
ASUS TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Features:
AI Advisor:
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
UEFI BIOS:
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
Premium Power Design:
Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
Cooler Compatibility:
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.
Empowering Connection:
This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C port and front USB 10Gbps Type-C connector.
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
UEFI BIOS:
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
Premium Power Design:
Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
Cooler Compatibility:
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.
Empowering Connection:
This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C port and front USB 10Gbps Type-C connector.
Specifications:
CPU:
• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset:
• AMD B850 Chipset
Memory:
• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO)
• ASUS Enhanced Memory Profile (AEMP)
• Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
• 1 x DisplayPort
• 1 x HDMI port
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• Supports max. 8K@30Hz as specified in DisplayPort 1.4.
• Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots:
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD B850 Chipset
• 1 x PCIe 4.0 x1 slot
• Specifications vary by CPU types.
Storage:
• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
• AMD B850 Chipset
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• Specifications vary by CPU types.
• AMD RAIDXpert2 Technology
• Ryzen 9000 Series Processors: RAID 0/1/5/10
• Ryzen 8000 Series Processors: RAID 0/1
• Ryzen 7000 Series Processors: RAID 0/1/10
Ethernet:
• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
Wireless & Bluetooth:
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth v5.3
• WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
• The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB:
• Rear USB (Total 12 ports)
• 1 x USB 20Gbps port (1 x USB Type-C)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 6 ports)
• 1 x USB 10Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• USB Type-C power delivery output: max. 5V/3A.
Audio:
• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback
Audio Features:
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit
• Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

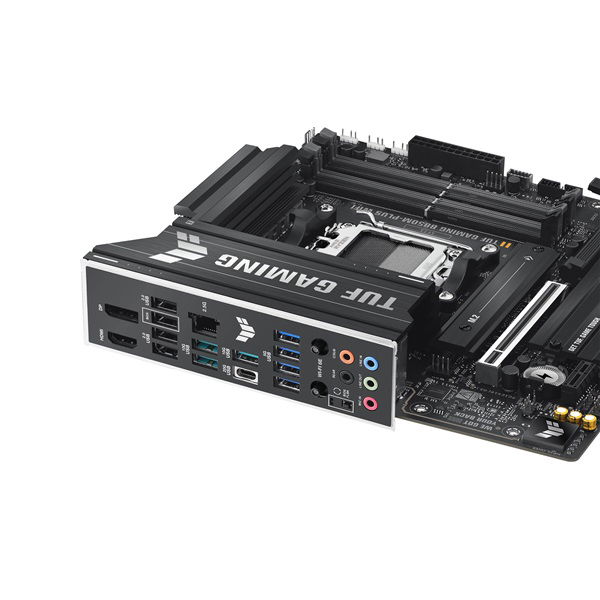

Back Panel I/O Ports:
• 1 x USB 20Gbps port (1 x USB Type-C)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack button
Internal I/O Connectors:
• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• Storage Related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
USB:
• 1 x USB 10Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front Panel System header
BIOS:
• 256 Mb Flash ROM, UEFI AMI BIOS
Manageability:
• WOL by PME, PXE
Operating System:
• Windows 11, Windows 10 64-bit
Form Factor:
• micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset:
• AMD B850 Chipset
Memory:
• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO)
• ASUS Enhanced Memory Profile (AEMP)
• Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
• 1 x DisplayPort
• 1 x HDMI port
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• Supports max. 8K@30Hz as specified in DisplayPort 1.4.
• Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots:
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD B850 Chipset
• 1 x PCIe 4.0 x1 slot
• Specifications vary by CPU types.
Storage:
• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
• AMD B850 Chipset
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• Specifications vary by CPU types.
• AMD RAIDXpert2 Technology
• Ryzen 9000 Series Processors: RAID 0/1/5/10
• Ryzen 8000 Series Processors: RAID 0/1
• Ryzen 7000 Series Processors: RAID 0/1/10
Ethernet:
• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
Wireless & Bluetooth:
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth v5.3
• WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
• The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB:
• Rear USB (Total 12 ports)
• 1 x USB 20Gbps port (1 x USB Type-C)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 6 ports)
• 1 x USB 10Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• USB Type-C power delivery output: max. 5V/3A.
Audio:
• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback
Audio Features:
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit
• Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports:
• 1 x USB 20Gbps port (1 x USB Type-C)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack button
Internal I/O Connectors:
• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• Storage Related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
USB:
• 1 x USB 10Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front Panel System header
BIOS:
• 256 Mb Flash ROM, UEFI AMI BIOS
Manageability:
• WOL by PME, PXE
Operating System:
• Windows 11, Windows 10 64-bit
Form Factor:
• micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
We are an Asus authorised reseller
Additional Details:
-
Stock Availability: 14 In Stock Now
-
Warranty: 3 Years
-
Manufacturer:
Asus Shop
-
Product Found In: Motherboards
-
Model Number: 90MB1IY0-M0UAY0
-
Part Number: SY014947
