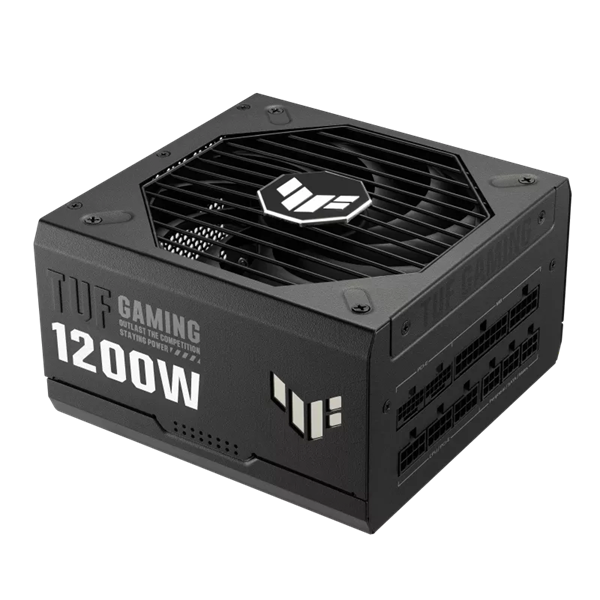

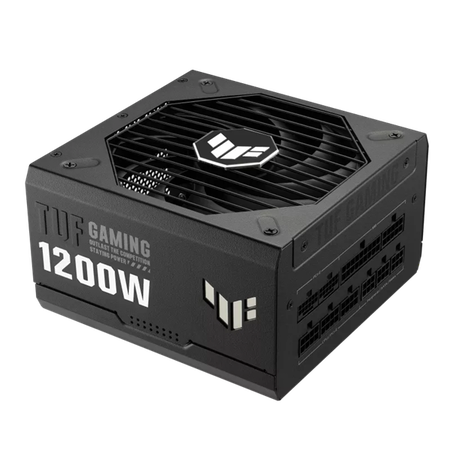

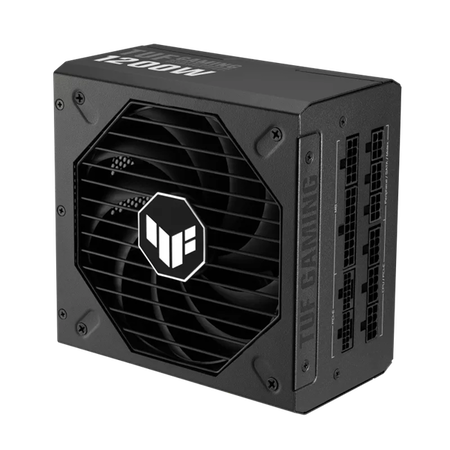

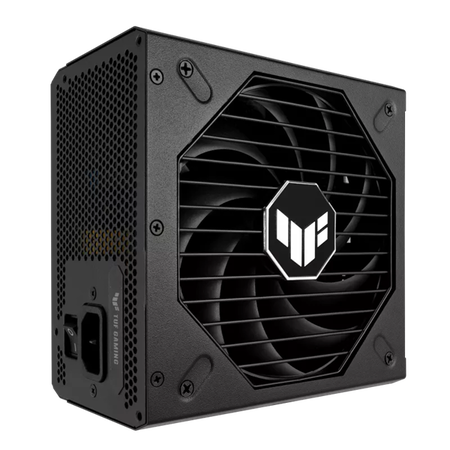

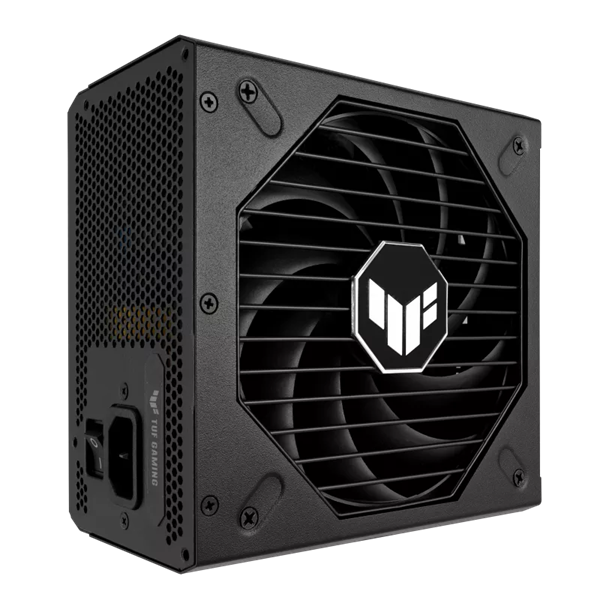

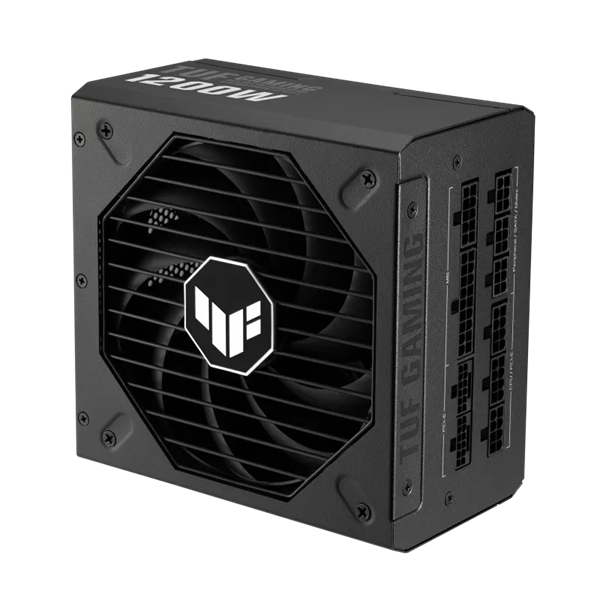

ASUS TUF Gaming 1200W 80 Plus Gold Fully Modular ATX12V Power Supply

The ASUS TUF Gaming 1200W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.

• Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• A protective PCB coating protects against moisture, dust, and extreme temperatures.
• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• Fully modular etched cables keep your rig neat and tidy.
• 10-year warranty included.

• Intel Form Factor: ATX12V
• ATX 3.0: Yes
• Efficiency: 80Plus Gold
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 25A25A99A 0.8A 3A
• Combined Load: 130W 130W 1188W 9.6W 15W
• Total Output: 1200W
• Cable Connectors: MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 16-pin x 2 (both PSU & component side), PCI-E 8-pin x 3, SATA x 5, PERIPHERAL x 4
• 0dB Fan Button: No
• Dimensions: 150 x 150 x 86 mm
• Weight: 2.66kg (single PSU)

• Power Cord x 1
• Motherboard Power Cable x 1 (610mm)
• CPU Cable x 2 (650mm)
• PCI-E Gen 5 16-pin Cable x 2 (675mm)
• PCI-E 1-to-1 Cable x 1 (675mm)
• PCI-E 1-to-2 Cable x 1 (675mm)
• SATA 1-to-2 Cable x 1 (400+120 mm)
• SATA 1-to-3 Cable x 1 (400+120+120 mm)
• Peripheral 1-to-4 x 1 (400+150+150+150 mm)
• TUF Gaming Cable tie x 3
• User Manual x 1
