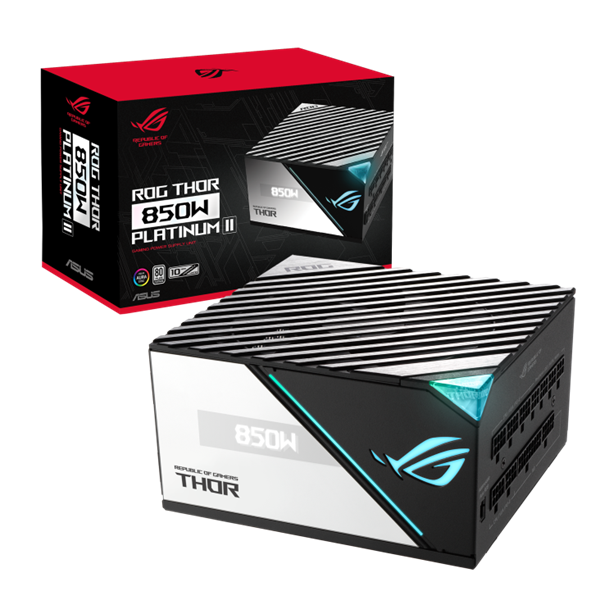

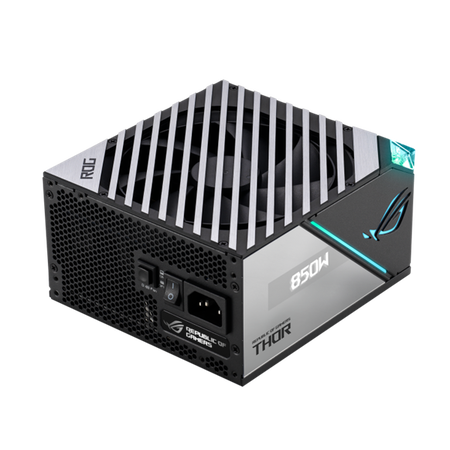

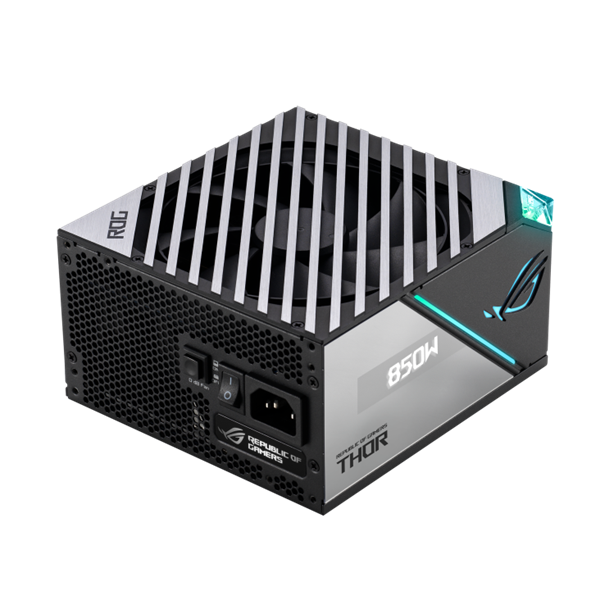

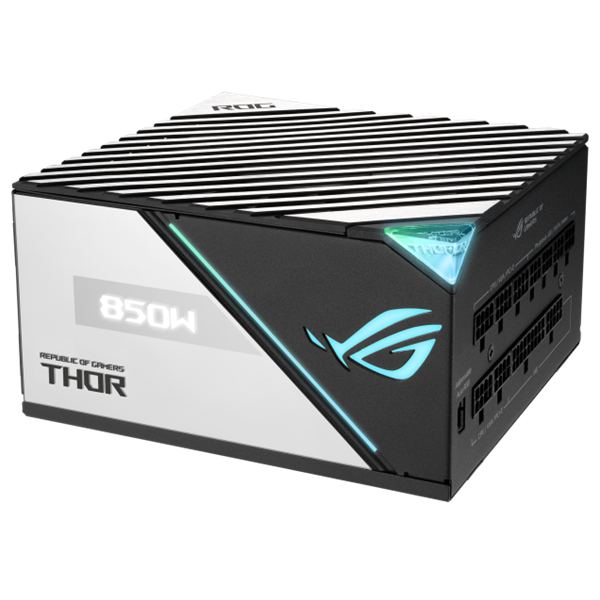

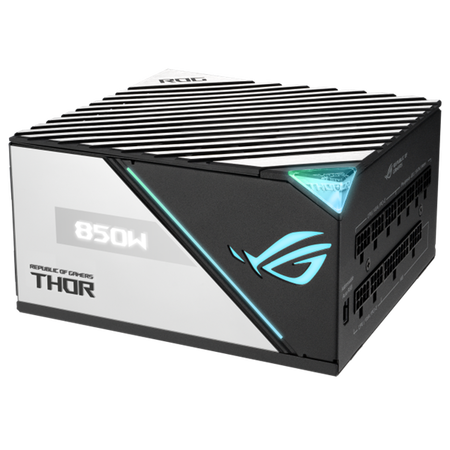

ASUS ROG Thor Platinum II 850W 80 Plus Platinum Fully Modular ATX Power Supply

Back with a vengeance, the second iteration of the ROG Thor 850W Platinum wields cooling and component upgrades that make it the quietest PSU in its class. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.

ROG Heatsinks:
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.

Wing-blade Fan Design:
A 135mm Wing-blade fan with PWM control delivers lower noise and keeps thermals in check.

Dual Ball Fan Bearings:
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology:
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.​

Lambda A++ Certification:
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.​

80 Plus Platinum Certification:
The ROG Thor 850W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.

OLED Power Display:
The built-in OLED panel makes it easy to tune your system for best performance and efficiency.

• PFC Type: Active PFC
• Efficiency: 80Plus Platinum
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• Thermal Features: ROG Thermal Solution
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 20A 20A 71A 0.3A 3A
• Combined Load: 100W 100W 852W 3.6W 15W
• Total Output: 850W
• Cable Connectors: MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 16-pin x 1 (component side), PCI-E 6+2-pin x 3, SATA x 10, PERIPHERAL x 6
• AURA SYNC: ARGB
• Cybenetics Noise Level Certification: A++
• 0dB Technology: Supported. The fan shuts off entirely when the PSU is under certain load
• Dimensions: 160 x 150 x 86 mm
• Weight: 1.865kg (Single)

• Power Cord x 1
• Motherboard Power Cable x1 (610mm)
• CPU Cable x2 (650mm)
• PCIE Cable 16-pin x1 (675mm)
• PCIE 1-to-1 Cable x3 (675mm)
• PCIE 1-to-2 Cable x2 (675+75mm)
• SATA 1-to-2 Cable x1 (400+120mm)
• SATA 1-to-4 Cable x2 (400+120+120+120mm)
• Peripheral 1-to-3 Cable x2 (450+120+120mm)
• Addressable RGB Cable x1 (800mm)
• ROG sticker x 1
• ROG cable tie x 4
• Sleeved Cable Combs (6-pin) x 2
• Sleeved Cable Combs (8-pin) x 6
• Sleeved Cable Combs (24-pin) x 2
• Chassis Screws Package x 1
• Cable Tie x 10
• User Manual x 1
