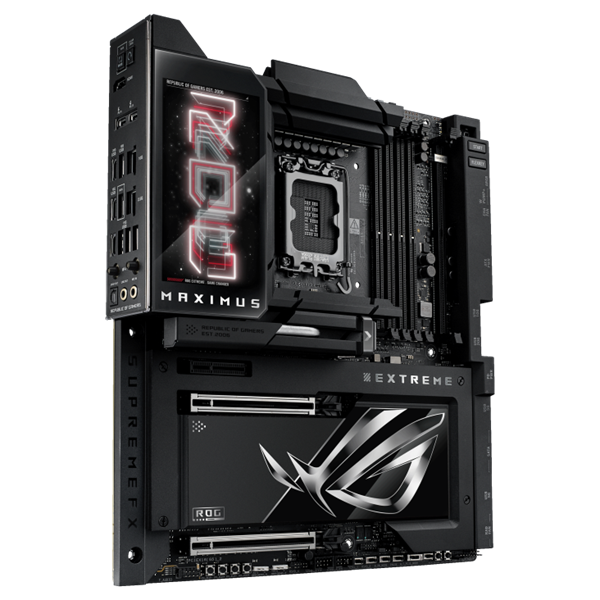

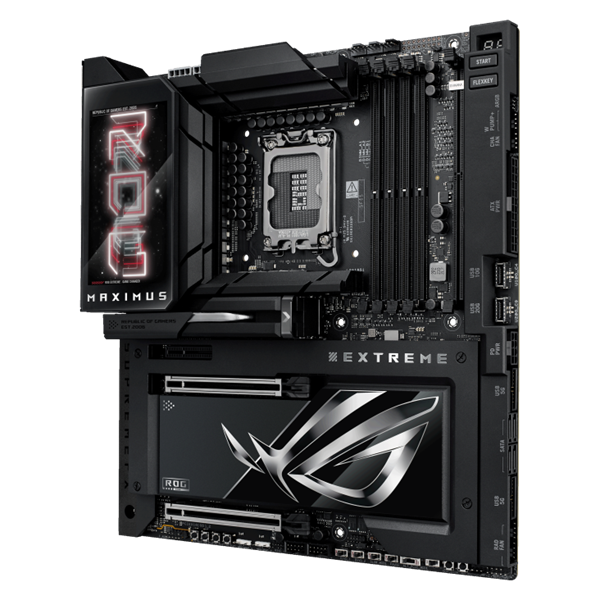

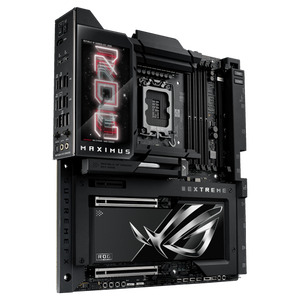

ASUS ROG MAXIMUS Z890 EXTREME Intel LGA1851 Z890 E-ATX Wi-Fi Gaming Motherboard

The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel Core Ultra Series 2 processors, DDR5 modules, PCIe 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt functionality and more - all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.

AI Networking II:
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

NPU Boost:
The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Differential Sensing:
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Extreme features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.

UEFI BIOS:
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

Boundless Creativity, Endless Style:
The ROG Maximus Z890 Extreme features a full-color 5-inch LCD screen that can show exclusive ROG animations, system information and even personalized services through Armoury Crate, empowering gamers to define their unique style on a vibrant display.

CPU:

• Support Intel Core Ultra Processors (Series 2), LGA1851
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset:

• Intel Z890 Chipset

Memory:

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III (AEMP III)
• Supports DIMM Flex
• DIMM Fit
• NitroPath DRAM Technology

Graphics:

• 1 x HDMITM port
• 2 x Intel Thunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs

Expansion Slots:

• Intel Core Ultra Processors (Series 2): 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)
• Intel Z890 Chipset: 1 x PCIe 4.0x4 slot

Storage:

• Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports
• Support Intel Core Ultra Processors(Series 2): M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
• Intel Z890 Chipset: DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet:

• 1 x Intel 2.5Gb Ethernet
• 1 x Marvell AQtion 10Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth:

• Intel Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
• Bluetooth v5.4

USB:

• Rear USB (Total 10 ports): 2 x Thunderbolt 5 ports (2 x USB Type-C), 1 x USB 20Gbps port (1 x USB Type-C), 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C)
• Front USB (Total 10 ports): 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+), 1 x USB 10Gbps connector (supports USB Type-C), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, USB Type-C power delivery output: max. 5V/3A

Audio:

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
• Audio Features: SupremeFX Shielding Technology, ESS ES9219 QUAD DAC, LED-illuminated audio jacks, Rear optical S/PDIF out port, Premium audio capacitors

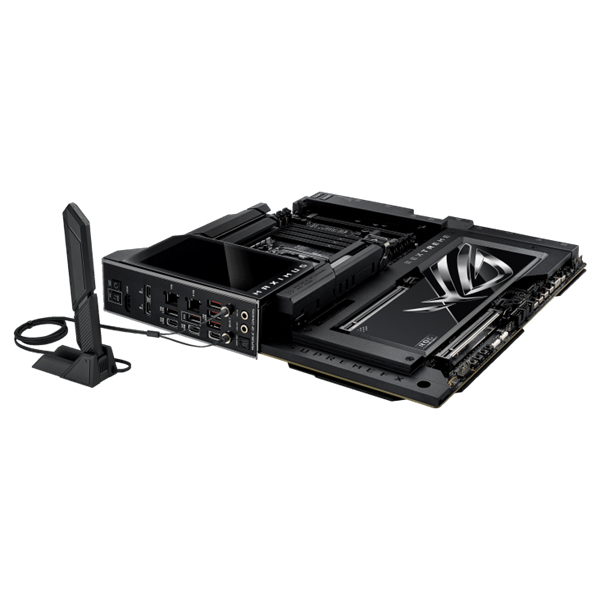

Back Panel I/O Ports:

• 2 x Thunderbolt 5 USB Type-C ports
• 1 x USB 20Gbps port (1 x USB Type-C)
• 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C)
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Intel 2.5Gb Ethernet port
• 1 x Marvell AQtion 10Gb Ethernet port
• 2 x LED-illuminated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Internal I/O Connectors:

• Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, 2 x 4-pin Radiator Fan headers, 2 x W_PUMP+ headers, 1 x WB_SENSOR header
• Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, 1 x 8-pin PCIe Power connector
• Storage related: 4 x M.2 slots (Key M), 1 x DIMM.2 slot supports 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
• USB: 1 x USB 20Gbps connector (supports USB Type-C), 1 x USB 10Gbps connector (supports USB Type-C), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous: 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers, 2 x Addressable Gen 2 header, 1 x Alteration PCIe mode switch, 4 x BCLK button, 1 x BIOS Switch button ,1 x FlexKey button, 1 x Front Panel Audio header (F_AUDIO), 1 x LN2 Mode jumper , 18 x ProbeIt Measurement Points, 1 x ReTry button, 2 x RSVD switches, 1 x RSVD header, 1 x Safe Boot button, 1 x Slow Mode switch , 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header

BIOS:

• 2 x 256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

• WOL by PME

Operating System:

• Windows 11 (22H2 & later)

Form Factor:

• E-ATX Form Factor
• 30.5 cm x 27.7 cm

• Cables: 1 x 1-to-3 ARGB splitter cable, 1 x 1-to-2 ARGB splitter cable, 2 x 1-to-4 fan splitter cable, 2 x ROG weave SATA 6G cable packages, 1 x 3-in-1 Thermistor cables pack
• ROG Q-DIMM.2 with Heatsink: 1 x ROG Q-DIMM.2 with heatsink, 1 x M.2 pad package for ROG Q-DIMM.2, 2 x Thermal pad for ROG Q-DIMM.2
• Additional Cooling Kit: 2 x Thermal pad for M.2 22110, 1 x DDR5 Fan holder
• Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, 1 x ROG logo plate sticker, 1 x ROG screwdriver, 1 x ROG stickers, 1 x ROG VIP card, 2 x M.2 Q-Slide packages, 6 x M.2 backplate rubber packages, 1 x ROG Bottle Opener
• Installation Media: 1 x USB drive with utilities and drivers
• Documentation: 1 x Quick start guide
