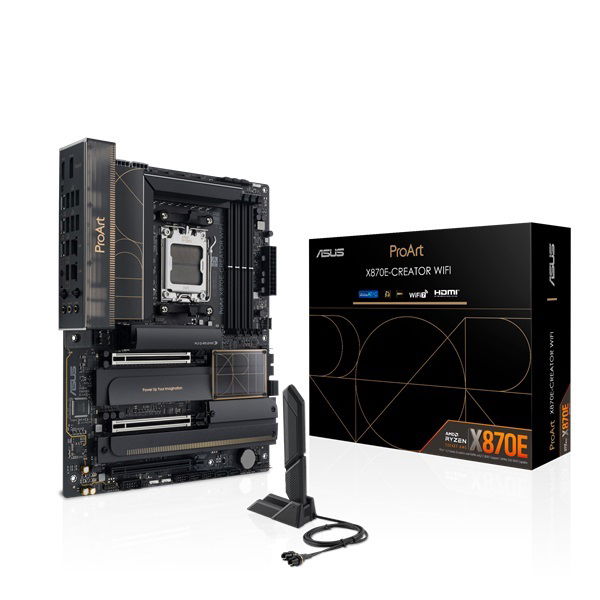

Asus ProArt X870E-CREATOR WIFI AM5 AMD ATX Motherboard

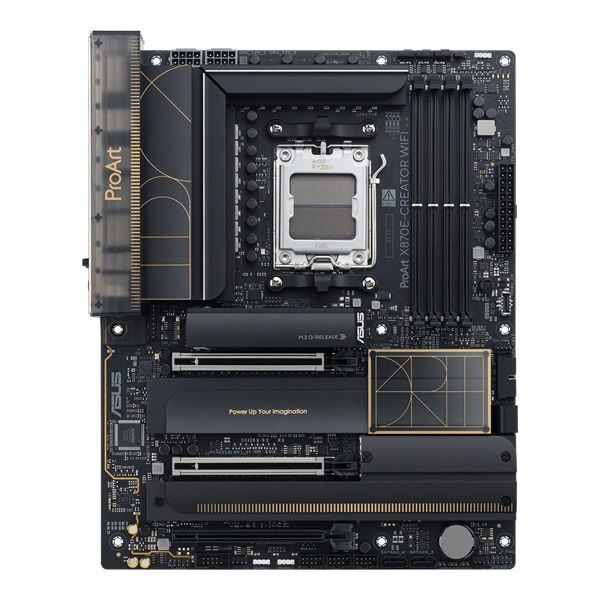

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe 5.0 and lightning-fast connectivity including dual USB4, 10G and 2.5G Ethernet, and WiFi 7.​ This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

Dual USB4 Connectivity:
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort In port on the rear I/O panel and direct the video output via the USB4 port.​

Ultrafast Networking​:
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security. The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels on the 6GHz band and 4K QAM. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

PCIe 5.0 Support:
Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

USB 20Gbps Type-C front-panel connector with Quick Charge 4+​:
This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.​

Robust Power Design:
Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

CPU:

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset:

• AMD X870E

Memory:

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to
• 8000+MT/s(OC) with Ryzen 9000 Series Processors,
• 8000+MT/s(OC) with Ryzen 8000 Series Processors,
• 8000+MT/s(OC) with Ryzen 7000 Series Processors,
• ECC and Non-ECC Un-buffered DIMM
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for
• Overclocking (EXPO)
• ASUS Enhanced Memory Profile (AEMP)
• Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• Supported memory types, data rate (Speed), and number of DRAM module vary depending on the CPU and memory configuration.
• Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics:

• 1 x HDMI port
• 2 x USB4 (40Gbps) ports support USB Type-C display outputs
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• Supports 4K@60Hz as specified in HDMI 2.1.
• Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots:

• AMD Ryzen 9000 & 7000 Series Desktop Processors
• 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes)
• AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors
• 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)
• AMD Ryzen 8500 & 8300 Series Desktop Processors
• 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled)
• AMD X870E Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.
• PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.

Storage:

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
• AMD Ryzen 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot is not supported
• AMD X870E Chipset
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology
• Ryzen 7000 series processors: PCIe RAID 0/1/10
• Ryzen 8000 series processors: PCIe RAID 0/1
• Ryzen 9000 series processors: PCIe RAID 0/1/5/10
• X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10

Ethernet:

• 1 x Marvell AQtion 10Gb Ethernet
• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth:

• Wi-Fi 7 (Wi-Fi features may vary depending on the operating system)
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band (Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.)
• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
• Bluetooth v5.4
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

USB:

• Rear USB (Total 11 ports)
• 2 x USB4 (40Gbps) port(s) (2 x USB Type-C)
• 1 x USB 20Gbps port(s) (1 x USB Type-C)
• 7 x USB 10Gbps port(s) (7 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• Front USB (Total 9 ports)
• 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+). USB Type-C power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• USB Type-C power delivery output: max. 5V/3.0A

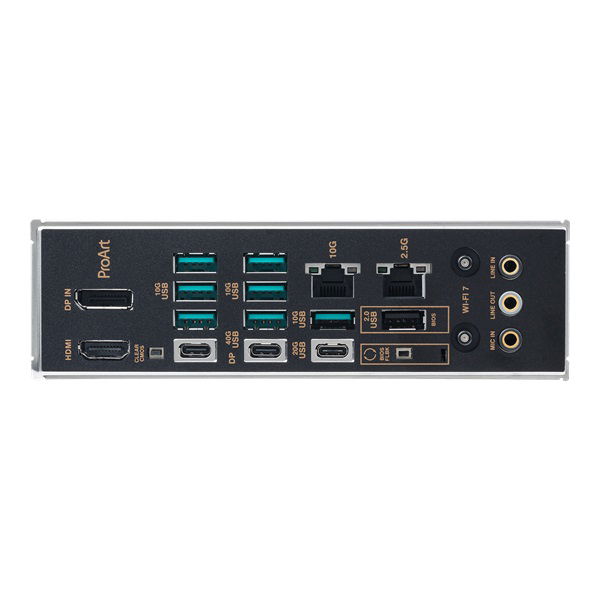

Back Panel I/O Ports:

• 2 x USB4 (40Gbps) port(s) (2 x USB Type-C)
• 1 x USB 20Gbps port (1 x USB Type-C)
• 7 x USB 10Gbps ports (7 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort (Input only)
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Marvell AQtion 10Gb Ethernet
• 1 x Intel 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Internal I/O Connectors:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header

BIOS:

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

• WOL by PME, PXE

Operating System:

• Windows 11

Form Factor:

• ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
