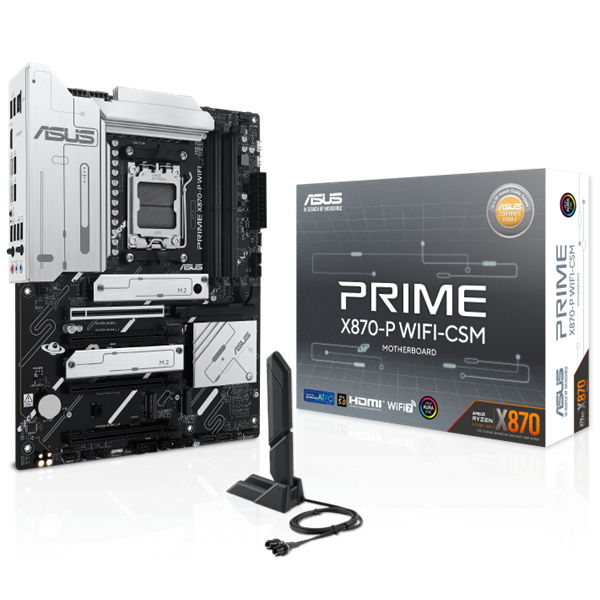

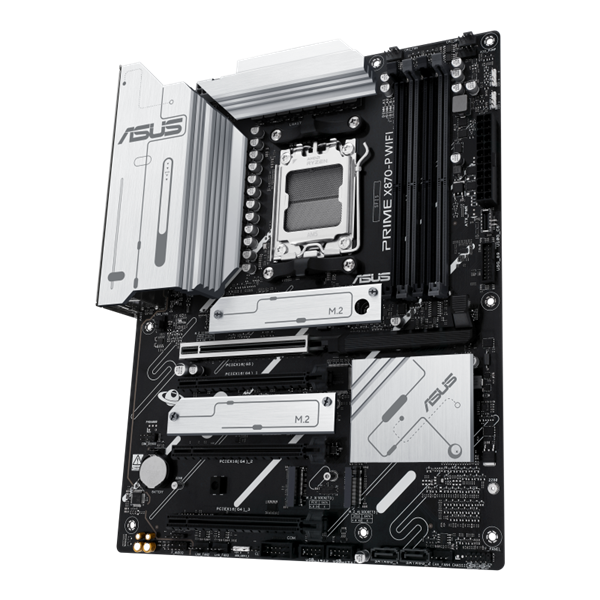

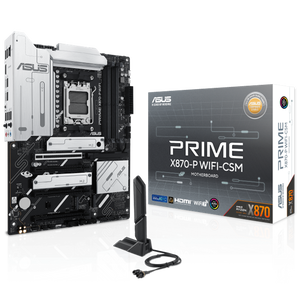

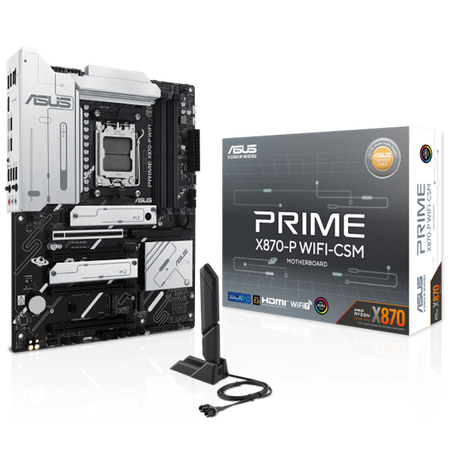

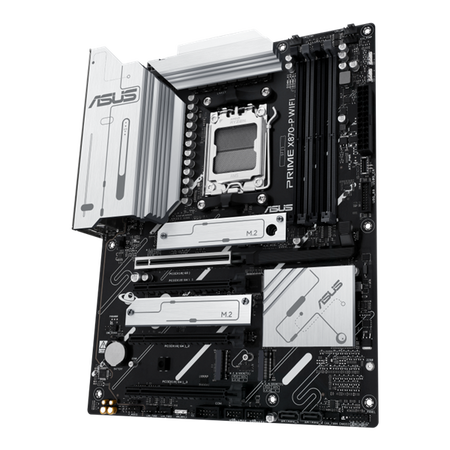

ASUS PRIME X870-P WIFI-CSM AMD AM5 X870 ATX Wi-Fi Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

ASUS Control Center Express:
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

AI Solutions:
ASUS AI Solutions include ASUS AI Advisor as your technical expert with expertise in PC performance, AI Networking II for real-time bandwidth optimization and AI Cooling II for automated temperature control.

Robust Power Design:
Stable power is crucial for maximizing the performance of AMD processors. The PRIME X870-P WIFI-CSM is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Enhanced DDR5 Performance:
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P WIFI-CSM maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.

Cooler by Design:
The PRIME X870-P WIFI-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Empowering Connections:
The PRIME X870-P WIFI-CSM motherboard offers a versatile range of connectivity, including support for WiFi 7, PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.

CPU:

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset:

• AMD X870 Chipset

Memory:

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
• ECC and Non-ECC, Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Graphics:

• 1 x HDMI port
• 2 x USB4 (40Gbps) ports support USB Type-C display outputs

Expansion Slots:

• AMD Ryzen 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD X870 Chipset: 3 x PCIe 4.0 x16 slots (support x1 mode)

Storage:

• Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• AMD X870 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)
• 2 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology: Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10

Ethernet:

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth:

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth v5.4

USB:

• Rear USB (Total 10 ports): 2 x USB4 (40Gbps) ports (2 x USB Type-C), 1 x USB 10Gbps port (1 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports): 1 x USB 10Gbps connector (supports USB Type-C), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

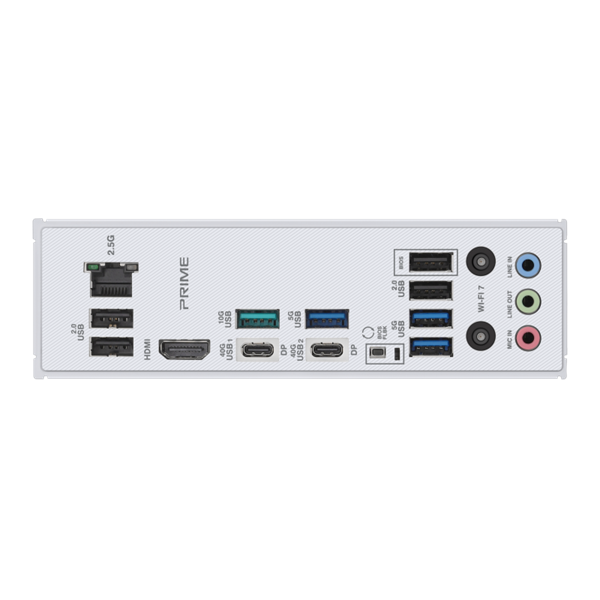

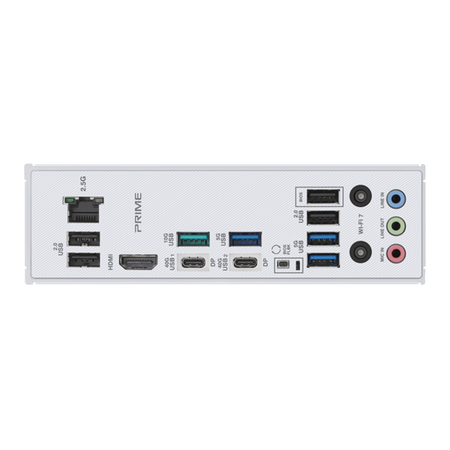

Back Panel I/O Ports:

• 2 x USB4 (40Gbps) ports (2 x USB Type-C)
• 1 x USB 10Gbps port (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack button

Internal I/O Connectors:

• Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
• Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors
• Storage Related: 4 x M.2 slots (Key M), 2 x SATA 6Gb/s ports
• USB: 1 x USB 10Gbps connector (supports USB Type-C), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header

BIOS:

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

• WOL by PME, PXE

Operating System:

• Windows 11

Form Factor:

• ATX Form Factor
• 30.5 cm x 24.4 cm
