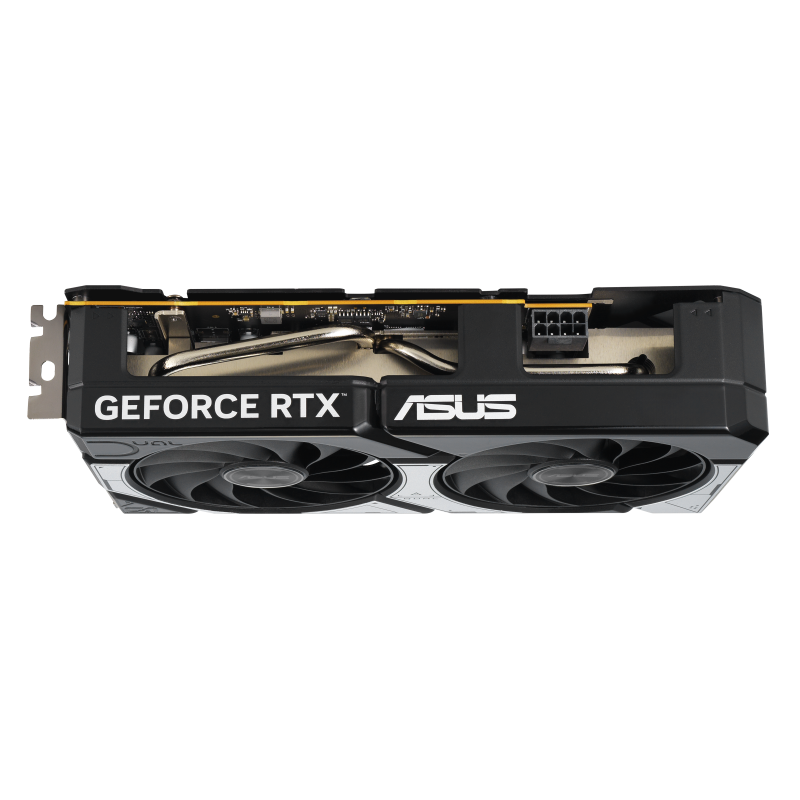

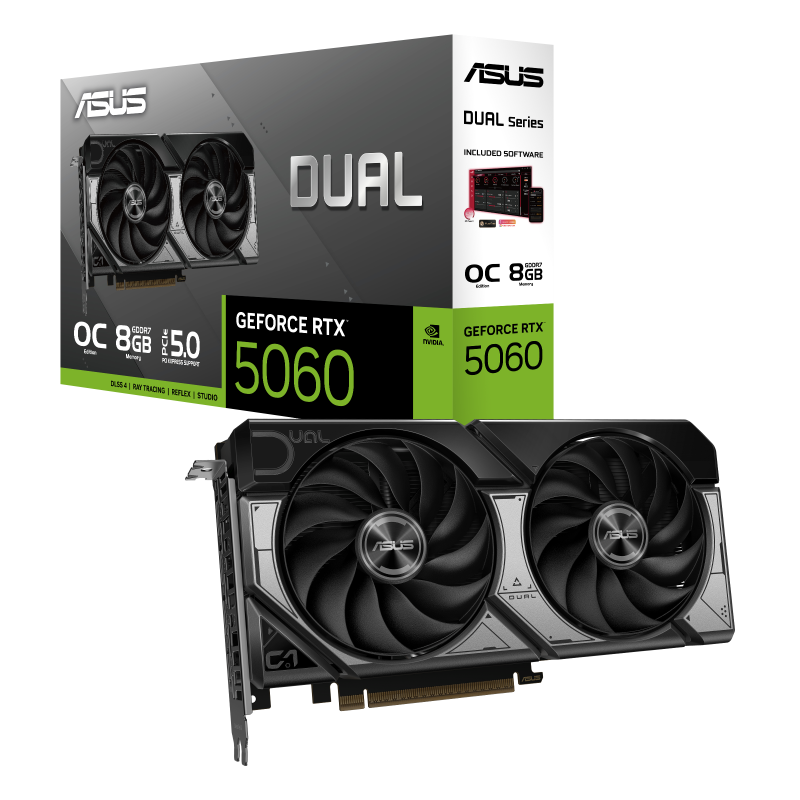

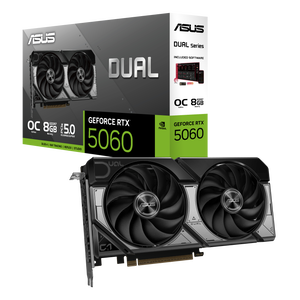

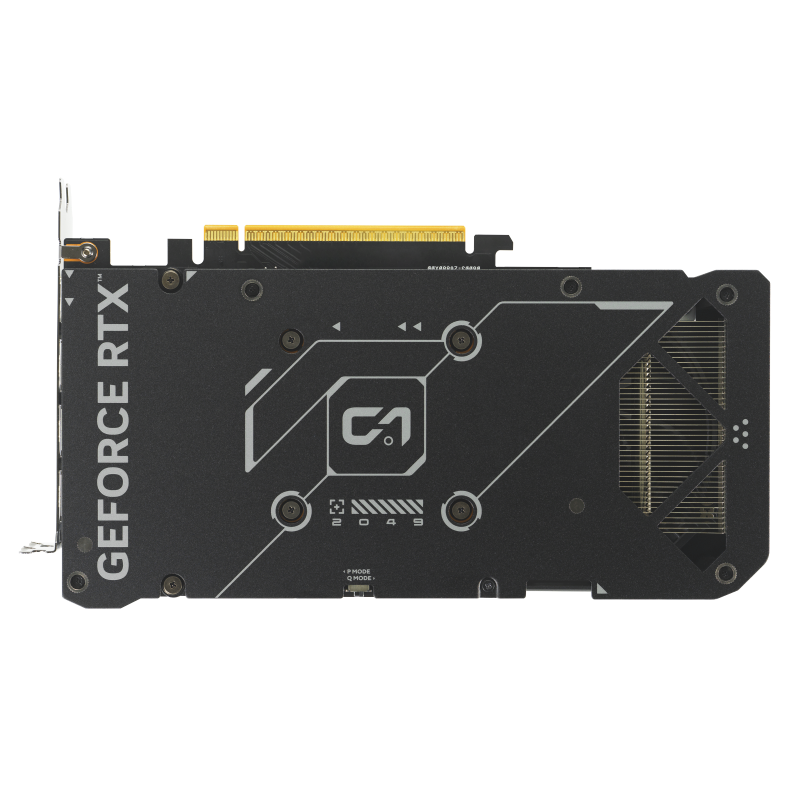

ASUS DUAL-RTX5060-O8G 8GB GDDR7 NVIDIA Graphics Card - HDMI, DisplayPort

ASUS Dual GeForce RTX 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards - including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Build Small. Play Big:
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

2.5-slot Design:
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

ASUS GPU Guard:
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.

Dual BIOS:
Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.

Auto−Extreme Technology:
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact, . The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.

• Model: DUAL-RTX5060-O8G
• Graphic Engine: NVIDIA GeForce RTX 5060
• AI Performance: 623 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL4.6
• Video Memory: 8GB GDDR7
• Engine Clock: OC mode: 2565MHz; Default mode: 2535MHz (Boost Clock)
• CUDA Core: 3840
• Memory Speed: 28 Gbps
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface: x 1 (Native HDMI 2.1b), x 3 (Native DisplayPort 2.1b), HDCP Support (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Accessories: 1 x Speedsetup Manual, 1 x Thank You Card
• Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Dimensions: 228 x 123 x 50 mm
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Slot: 2.5 Slot
• SFF Ready: Compatible
