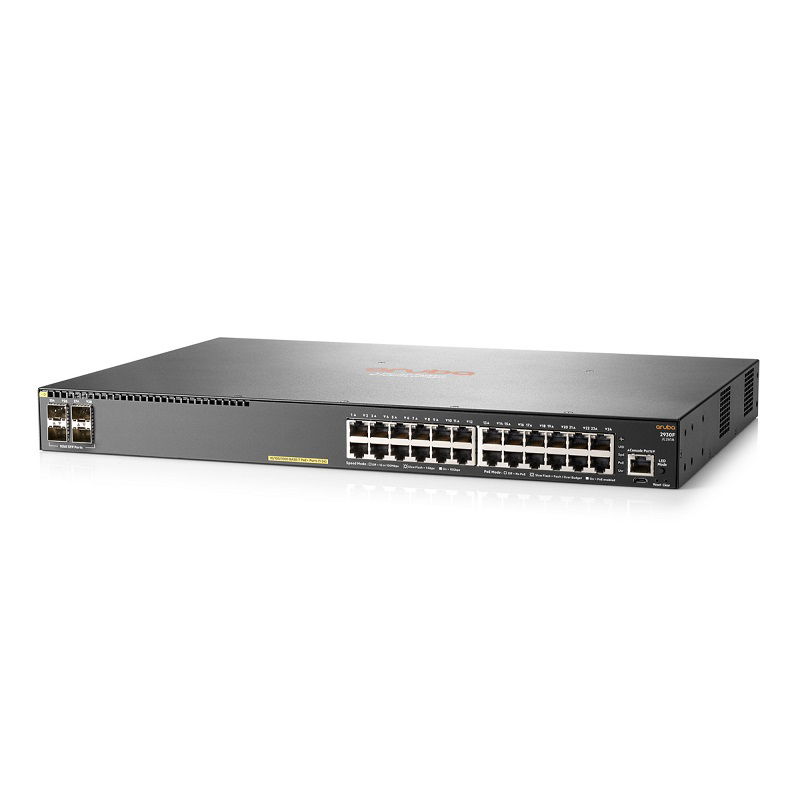

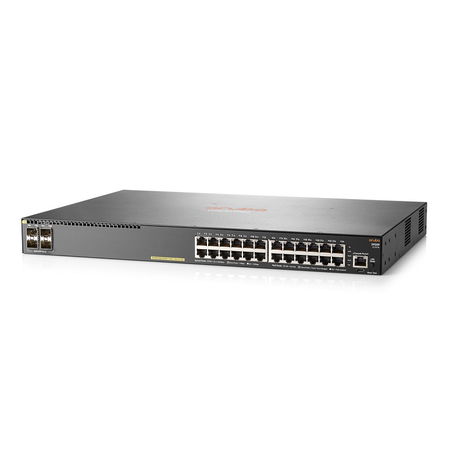

Aruba 2930F-24G-PoE+-4SFP 24 Port Layer 3 Gigabit PoE+ Managed Switch + 4 x SFP

The Aruba 2930F Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from Aruba Central, you can quickly set up remote branch sites with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and value with support of the latest SDN apps with future proof programmability for tomorrow’s applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning and built-in 10GbE uplinks. The robust basic Layer 3 feature set includes a limited lifetime warranty.

• Aruba basic Layer 3 switch series with VSF stacking, static, RIP and Access OSPF routing, ACLs, and robust QoS
• Consistent wired/wireless experience with Aruba AirWave and Aruba ClearPass Policy Manager
• Ready for innovative SDN applications with OpenFlow support
• Simple deployment with Zero Touch Provisioning and cloud-based Aruba Central support

I/O ports and slots

• 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
• Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
• 4 SFP

Additional ports and slots

• 1 dual-personality (RJ-45 or USB micro-B) serial console port

Memory and processor

• Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
• Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC

Performance

• 1000 Mb Latency: < 3.8 µs (64-byte packets)
• Throughput: up to 41.7 Mpps
• Switching capacity: 56 Gbps
• Routing table size: 10000 entries (IPv4), 5000 entries (IPv6)
• MAC address table size: 32768 entries

Environment

• Operating temperature: 0 C to 45 C up to 5000 Feet, 0 C to 40 C up to 10000 Feet
• Operating relative humidity: 15% to 95% @ 40 C, non-condensing
• Non-operating/Storage temperature: -40 C to 70 C up to 15000 Feet
• Non-operating/Storage relative humidity: 15% to 95% @ 65 C, non-condensing
• Acoustic: Power: 54.1 dB, Pressure: 40.6 dB
• Airflow direction: Side-to-side

Electrical Characteristics

• Frequency: 50/60 Hz
• 80plus.org Certification: Silver
• Maximum heat dissipation: 1518 BTU/hr (1601.49 kJ/hr)
• Voltage: 100–127/200–240 VAC, rated
• Current: 4.9/2.4 A
• Maximum power rating: 445 W
• Idle power: 36.8 W
• PoE power: 370 W PoE+

Safety

• UL 69050-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
• IEC 60950-1: 2005 +A1:2009 +A2:2013
• CSA 22.2 No. 60950-1-07 2nd
• EN 60825-1:2007/IEC 60825-1:2007 Class 1

Emissions

• EN 55022:2010/CISPR 22 Class A
• FCC CFR 47 Part 15 Class A
• VCCI Class A
• ICES-003 Class A
• CNS 13438

Immunity

• Generic: EN 55024:2010/CISPR 24
• ESD: IEC 61000-4-2
• Radiated: IEC 61000-4-3
• EFT/Burst: IEC 61000-4-4
• Surge: IEC 61000-4-5
• Conducted: IEC 61000-4-6
• Power frequency magnetic field: IEC 61000-4-8
• Voltage dips and Interruptions: IEC 61000-4-11
• Harmonics: IEC/EN 61000-3-2
• Flicker: IEC/EN 61000-3-3

Management

• Aruba AirWave Network Management
• IMC—Intelligent Management Center
• Command-line interface
• Web browser
• Configuration menu
• SNMP manager
• Telnet
• RMON1
• FTP
• Out-of-band management (serial RS-232C or micro USB)

Physical Characteristics

• Dimensions (WxDxH): 442.5 x 304.2 x 43.9 mm (1U Height)
• Weight (approx.): 3.90 kg
