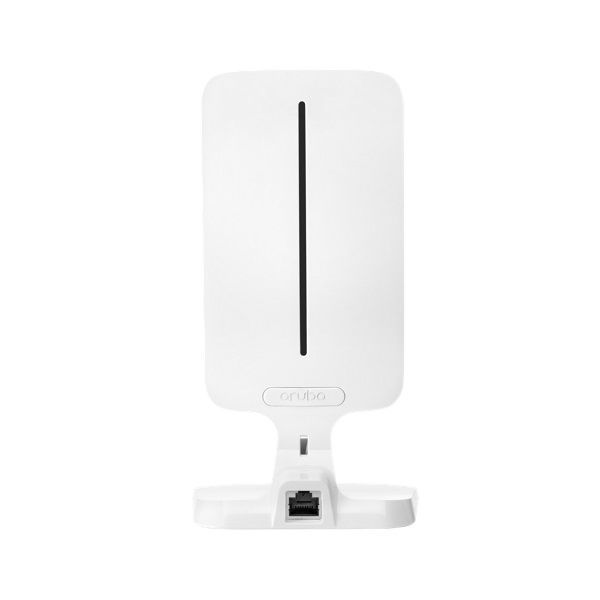

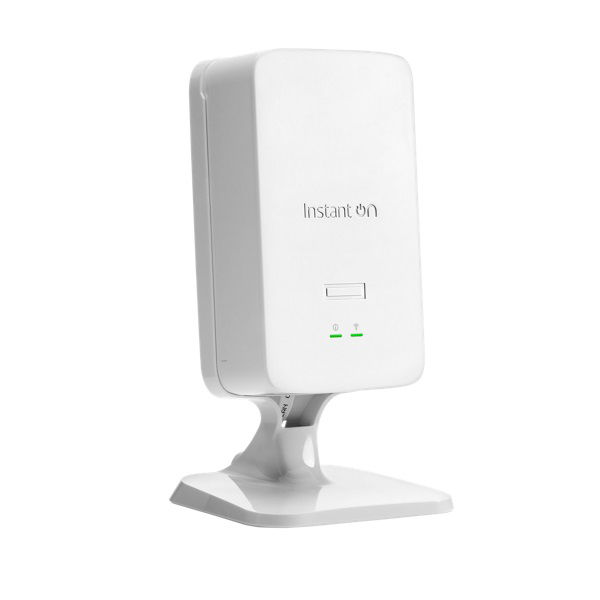

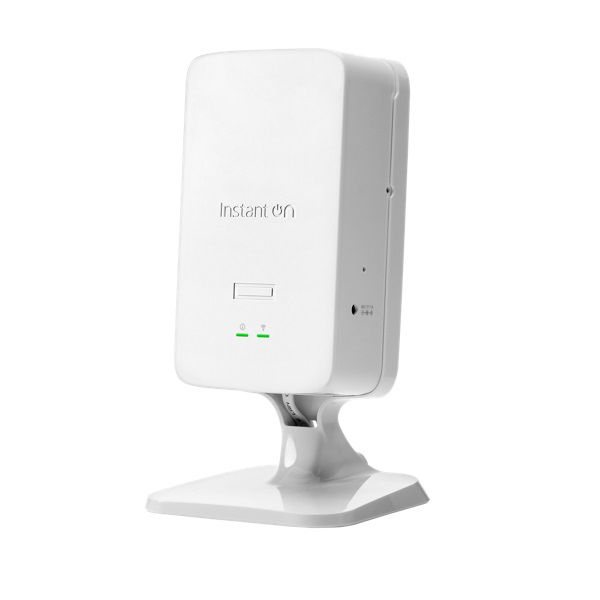

Aruba Instant On AP22D Dual Radio Wi‑Fi 6 MIMO PoE Wireless Indoor Access Point

The Aruba Networking Instant On Access Points AP22D is an SMB-focused Wi-Fi Certified 6 access point that provides reliable wired and wireless connectivity over a 2.5GbE uplink port with a minimal device footprint. This access point can reduce device clutter while powering downlink devices such as IP Phones or receipt printers with 2x 15W of PoE(802.3af) and supporting 75+ wireless devices over 802.11ax Wi-Fi 6 with an aggregate wireless throughput of 1.7Gbps.

802.11ax Wi-Fi Certified 6:
HPE Networking Instant On Access Points AP22D features Orthogonal Frequency-Division Multiple Access (OFDMA) which allows access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously and improve efficiency by boosting overall capacity, reducing latency.

2.5Gigabit Ethernet Uplink Port:
HPE Networking Instant On Access Points AP22D offers increased available bandwidth to allow for more traffic over Wi-Fi 6 or with the downlink ethernet ports.

Four Downlink 1 Gigabit Ethernet Ports:
Connect up to four copper RJ-45 devices to the HPE Networking Instant On Access Points AP22D without the need for an additional switch to manage.

• Device Type: Radio access point
• Form Factor: Desktop/wall mountable - indoor
• Certifications: Wi-Fi Certified 6
• Input voltage: Class 4 or 6 PoE (802.3at or bt)
• Frequency Band: 2.4 GHz, 5 GHz
• Wi-Fi antenna: Dual Omni-directional 2x2 MIMO
• Ports: 1x 2.5GbE uplink and 4x 1GbE downlink
• Mounting: Built-in Wall mount or included desk mount
• Power consumption: 51W (PoE) or 50W (DC)
• Dimensions (WxDxH): 8.6 cm x 4.7 cm x 15 cm
• Weight: 360 g
