Product Description:

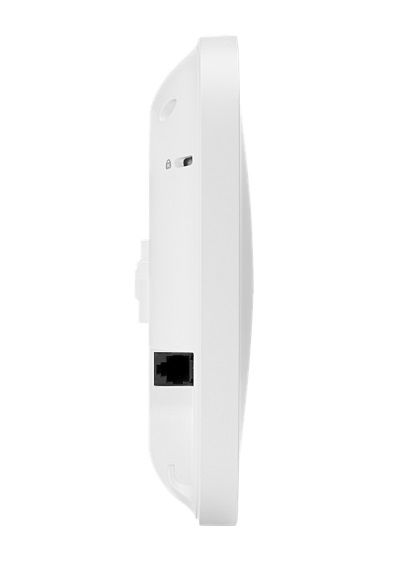

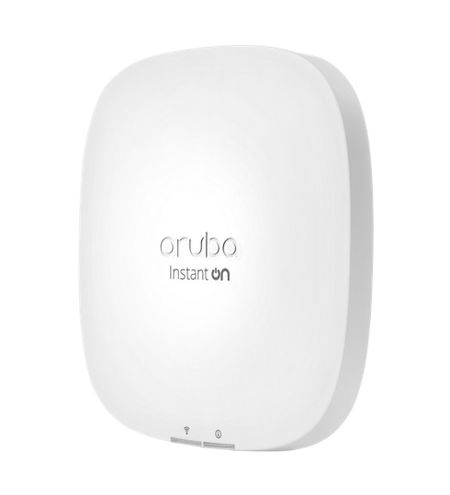

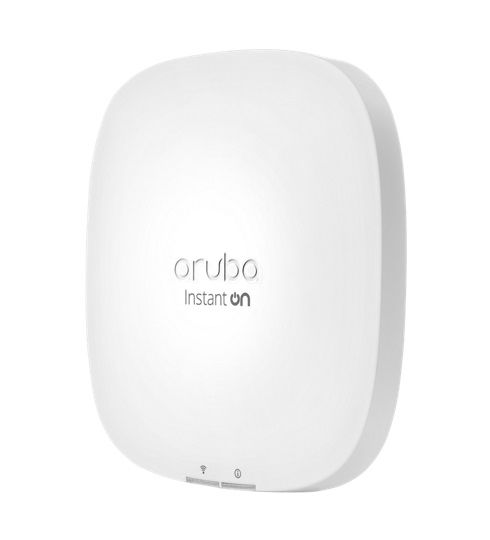

Aruba Instant On AP22 (RW) 2x2 Wi-Fi 6 Indoor Access Point
Aruba Instant On AP22 Indoor Access Points deliver affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs.
Features:
• Wi-Fi 6 for high performance and efficiency.
• Supports up to 75 associated clients per radio.
• Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access.
• Incredible Efficiency with Wi-Fi 6
• Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage
• Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
• Creates a Custom Guest Access Experience
• Supports up to 75 associated clients per radio.
• Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access.
• Incredible Efficiency with Wi-Fi 6
• Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage
• Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
• Creates a Custom Guest Access Experience
Specifications:
• Certifications: EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
• Input Voltage: Power over Ethernet (POE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately
• Wi-Fi Antenna: Integrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
• Connectivity: IEEE 802.11ax
• External I/O Ports: (1) uplink Gigabit Ethernet port, with POE-in support (802.3af)

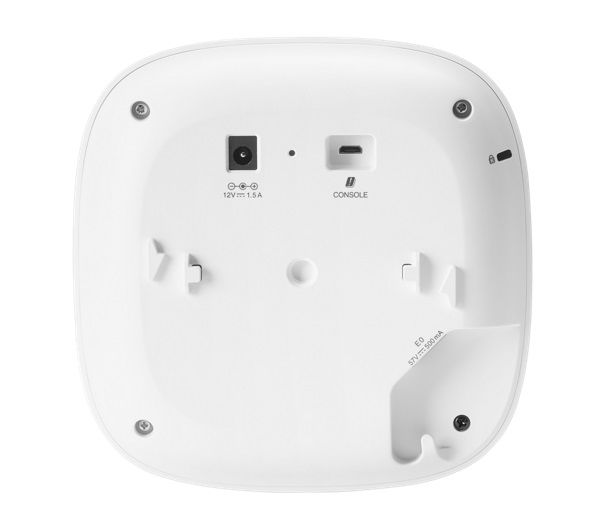

• Mounting: The access point ships with a white mount clip that can attach to both wall and ceiling. You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment.
• Power Consumption Description: Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
• Radio Coverage: Dual Radio for simultaneous dual-band operation 5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
• Weight: 500 g
• Product Dimensions: 37x 160 x 160 mm
• Input Voltage: Power over Ethernet (POE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately
• Wi-Fi Antenna: Integrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
• Connectivity: IEEE 802.11ax
• External I/O Ports: (1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
• Mounting: The access point ships with a white mount clip that can attach to both wall and ceiling. You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment.
• Power Consumption Description: Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
• Radio Coverage: Dual Radio for simultaneous dual-band operation 5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
• Weight: 500 g
• Product Dimensions: 37x 160 x 160 mm
Additional Details:
-
Stock Availability: 48 In Stock Now
-
Warranty: 2 Years
-
Manufacturer: Aruba Shop
-
Product Found In: Access Points
-
Model Number: R4W02A
-
Part Number: T49230
