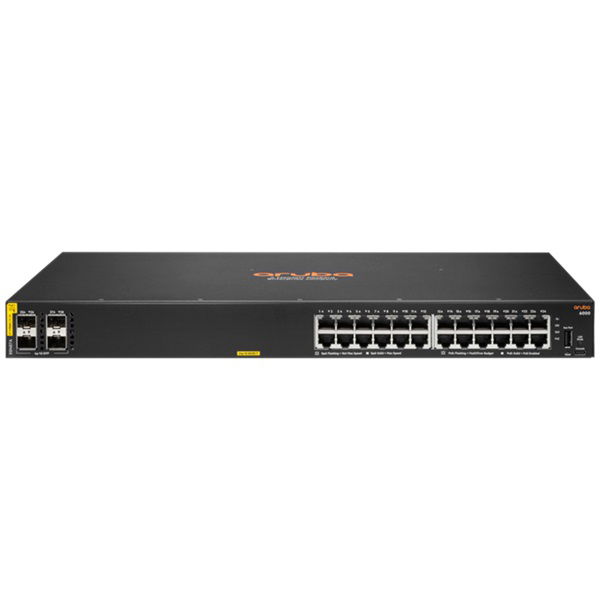

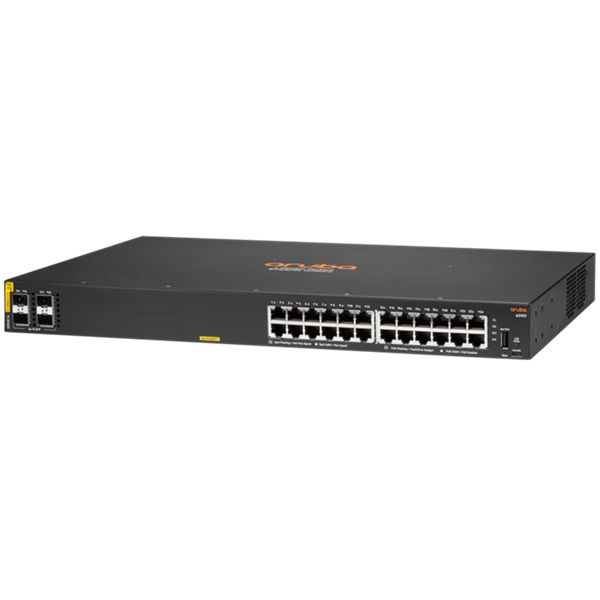

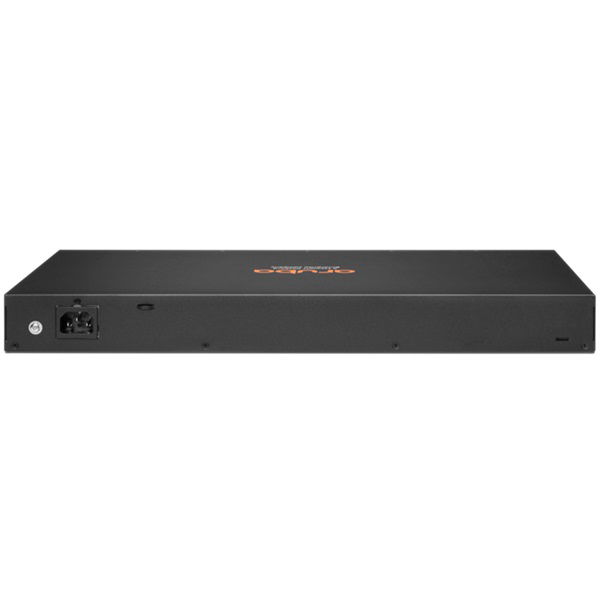

Aruba CX 6000 24-Port Class4 PoE 4SFP 370W Managed Switch

The Aruba Networking CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.

Entry Level Aruba CX Access Layer Switches:
The Aruba Networking CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.

Performance and Power:
The Aruba Networking CX 6000 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.

Simplified Configuration and Management:
The Aruba Networking CX 6000 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, Aruba Central1, easy to use Web GUI, or industry standard CLI.

• Power consumption: Max Power (w/o PoE): 32.7W
• Power consumption: Max Power (w/ PoE): 455W
• Input voltage: 100-127 VAC / 200-240 VAC
• Ports: 24x ports 10/100/1000BASE-T ports 4x 1G SFP ports
• Latency: 1 Gbps: 1.5 μSec
• Routing capabilities: Static
• Switching capacity: 56 Gbps
• Throughput: 41.6 Mpps
• Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC
• PoE capability: 370W Class 4 PoE/PoE+
• Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km); derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
• Weight: 4.2 kg (9.24 lbs)
• Dimensions: 4.4 x 44.2 x 26.8 cm (1.73 x 17.4 x 10.56 in)
