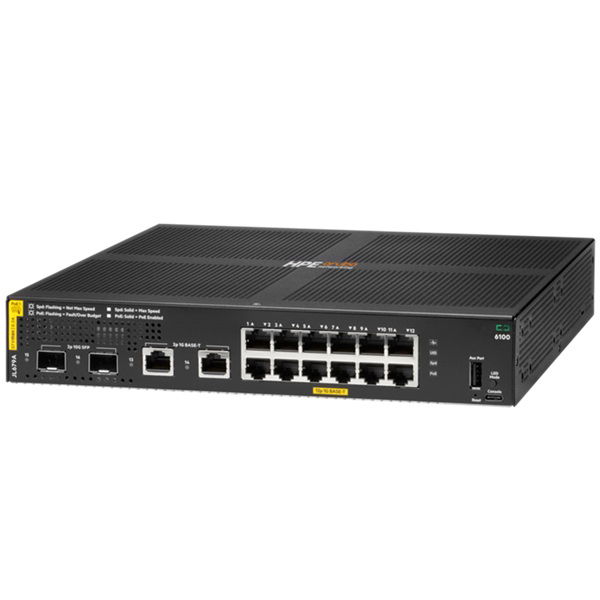

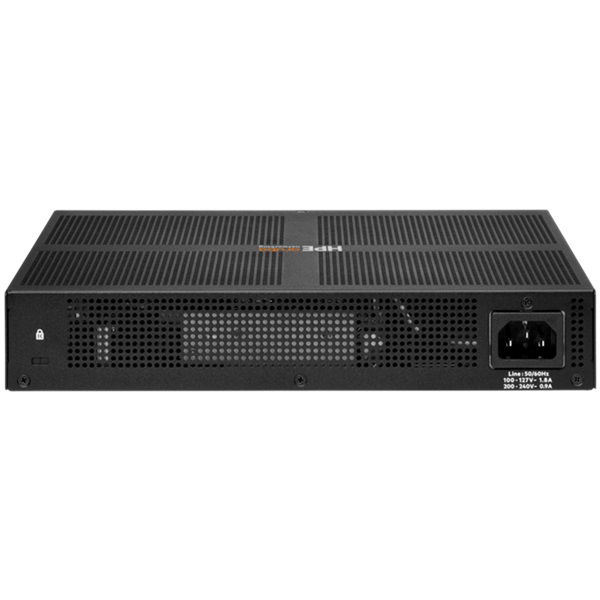

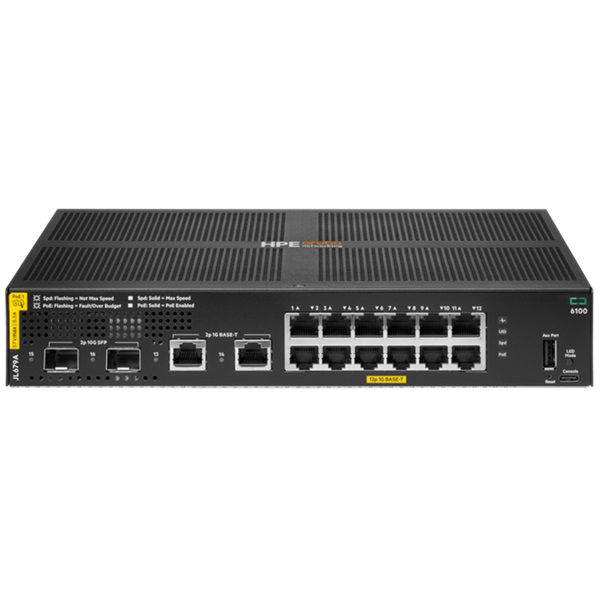

Aruba CX 6100 12G Class4 PoE 2G/2SFP+ 139W Managed Switch

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.

Entry Level Aruba CX Access Layer Switches:
The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.

Performance and Power:
The HPE Aruba Networking CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.

Simplified Configuration and Management:
The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.

• Power consumption: Max Power (w/o PoE): 21.9W; Max Power (w/ PoE): 170W
• Input voltage: 100-127 VAC / 200-240 VAC
• Ports: 12x ports 10/100/1000BASE-T Ports; 2x 1G/10G SFP ports; 2x 1GbE ports
• Latency: 1 Gbps: 2.3 μSec , 10 Gbps: 2.6 μSec
• Switching capacity: 68 Gbps
• Throughput: 45.1 Mpps
• Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz; 4 GB DDR3, maximum, depending on model; 16 GB eMMC
• PoE capability: 139W Class 4 PoE/PoE+
• Weight: 2.8 kg (6.13 lbs)
• Dimensions: 4.4 x 25.4 x 25.5 cm (1.73 x 10.0 x 10.4 in)
