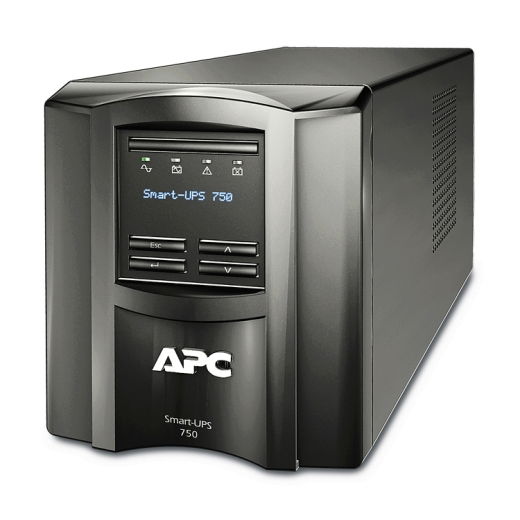

APC Smart-UPS 750VA 500W 6 Outlet Line Interactive Tower UPS

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Cold-start capable:
Provides temporary battery power when the utility power is out.

Energy meter:
Provides actual kilowatt hours of usage for energy conscious users.

Green mode:
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency:
Reduces utility costs, generates less heat.

Intuitive LCD interface:
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date:
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery:
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

SmartConnect:
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

SmartSlot:
Customize UPS capabilities with management cards.

Temperature-compensated battery charging:
Prolongs battery life by regulating the charge voltage according to battery temperature.

Output:

• Max Configurable Power (Watts): 500 Watts / 750VA

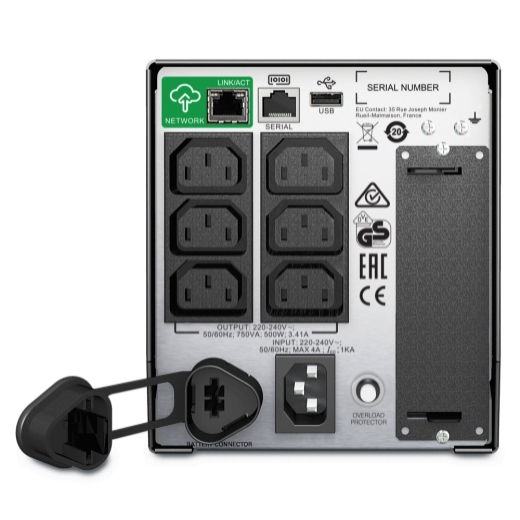

• Output Connections: 6x IEC 320 C13 (Battery Backup), 2x IEC Jumpers (Battery Backup)
• Output Voltage Distortion: Less than 5 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages: 220, 240
• Topology: Line interactive
• Waveform type: Sine wave
• Transfer Time: 6 ms typical : 10 ms maximum

Input:

• Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V
• Other Input Voltages: 220, 240

Batteries & Runtime:

• Battery type: Lead-acid battery
• Typical recharge time: 3hour(s)
• Replacement Battery: RBC48
• Expected Battery Life (years): 3 - 5
• RBC Quantity: 1
• Battery Charge Power (Watts): 49 Watts

Communications & Management:

• Interface Port(s): SmartSlot, USB
• Control panel: Multifunction LCD status and control console
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency Power Off (EPO): Optional
• Available SmartSlot Interface Quantity: 1

Surge Protection and Filtering:

• Surge energy rating: 540Joules
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Environmental:

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 %
• Operating Elevation: 0 - 3048meters
• Storage Temperature: -15 - 45 °C
• Storage Elevation: 0 - 15240meters
• Audible noise at 1 meter from surface of unit: 40.0dBA
• Online thermal dissipation: 90.0BTU/hr

Physical Specifications:

• Colour: Black
• Dimensions (HxWxD): 161 x 138 x 369 mm
• Weight (approx.): 11.8 kg
