Product Description:

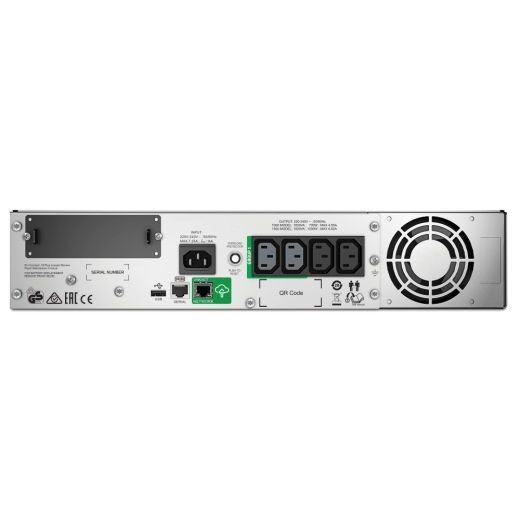

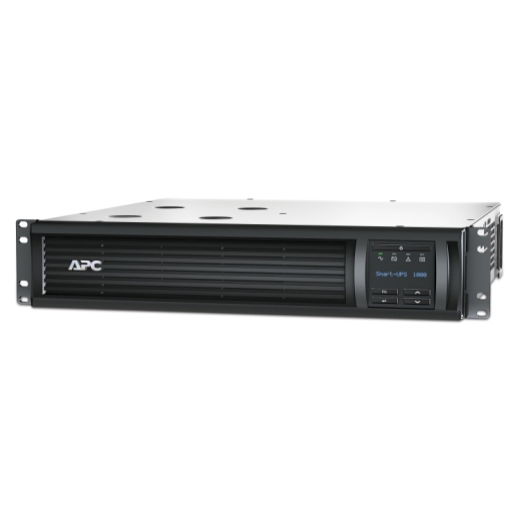

APC Smart-UPS 1000VA 700W 4 Outlet Line Interactive 2RU Rack Mount UPS
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Features:
Cold-start capable:
Provides temporary battery power when the utility power is out.
Energy meter:
Provides actual kilowatt hours of usage for energy conscious users.
Green mode:
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency:
Reduces utility costs, generates less heat.
Intuitive LCD interface:
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date:
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery:
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group:
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect:
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot:
Customize UPS capabilities with management cards.
Temperature-compensated battery charging:
Prolongs battery life by regulating the charge voltage according to battery temperature.
Provides temporary battery power when the utility power is out.
Energy meter:
Provides actual kilowatt hours of usage for energy conscious users.
Green mode:
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency:
Reduces utility costs, generates less heat.
Intuitive LCD interface:
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date:
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery:
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group:
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect:
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot:
Customize UPS capabilities with management cards.
Temperature-compensated battery charging:
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications:
Output:
• Max Configurable Power (Watts): 700 Watts / 1.0kVA
• Output Connections: 2x IEC Jumpers (Battery Backup), 4x IEC 320 C13 (Battery Backup)
• Output Voltage Distortion: Less than 5 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages: 220, 240
• Topology: Line interactive
• Waveform type: Sine wave
• Transfer Time: 6 ms typical : 10 ms maximum
Input:
• Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V
• Other Input Voltages: 220, 240
Batteries & Runtime:
• Battery type: Lead-acid battery
• Typical recharge time: 3hour(s)
• Replacement Battery: RBC157
• Expected Battery Life (years): 4 - 6
• RBC Quantity: 1
• Battery Charge Power (Watts): 112 Watts
Communications & Management:
• Interface Port(s): RJ-45 Serial, SmartSlot, USB
• Control panel: Multifunction LCD status and control console
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO): Optional
• Available SmartSlot Interface Quantity: 1
Surge Protection and Filtering:
• Surge energy rating: 459Joules
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Environmental:
• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 %
• Operating Elevation: 0 - 3048meters
• Storage Temperature: -15 - 45 °C
• Storage Elevation: 0 - 15240meters
• Audible noise at 1 meter from surface of unit: 45.0dBA
• Online thermal dissipation: 56.0BTU/hr
Physical Specifications:
• Colour: Black
• Dimensions (HxWxD): 86 x 432 x 477 mm
• Weight (approx.): 22.5 kg
• Max Configurable Power (Watts): 700 Watts / 1.0kVA
• Output Connections: 2x IEC Jumpers (Battery Backup), 4x IEC 320 C13 (Battery Backup)
• Output Voltage Distortion: Less than 5 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages: 220, 240
• Topology: Line interactive
• Waveform type: Sine wave
• Transfer Time: 6 ms typical : 10 ms maximum
Input:
• Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V
• Other Input Voltages: 220, 240
Batteries & Runtime:
• Battery type: Lead-acid battery
• Typical recharge time: 3hour(s)
• Replacement Battery: RBC157
• Expected Battery Life (years): 4 - 6
• RBC Quantity: 1
• Battery Charge Power (Watts): 112 Watts
Communications & Management:
• Interface Port(s): RJ-45 Serial, SmartSlot, USB
• Control panel: Multifunction LCD status and control console
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO): Optional
• Available SmartSlot Interface Quantity: 1
Surge Protection and Filtering:
• Surge energy rating: 459Joules
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Environmental:
• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 %
• Operating Elevation: 0 - 3048meters
• Storage Temperature: -15 - 45 °C
• Storage Elevation: 0 - 15240meters
• Audible noise at 1 meter from surface of unit: 45.0dBA
• Online thermal dissipation: 56.0BTU/hr
Physical Specifications:
• Colour: Black
• Dimensions (HxWxD): 86 x 432 x 477 mm
• Weight (approx.): 22.5 kg
We sell a large range of UPS devices including commercial grade models requiring a licensed electrician, and/or additional cables/power requirements for installation. Warranty periods on UPS devices will exclude the battery, as they are a consumable item.
Additional Details:
-
Stock Availability: 1 In Stock Now
-
Warranty: 3 Years
-
Manufacturer: APC Shop
-
Product Found In: UPS Devices
-
Model Number: SMT1000RMI2UC
-
Part Number: DD05221
