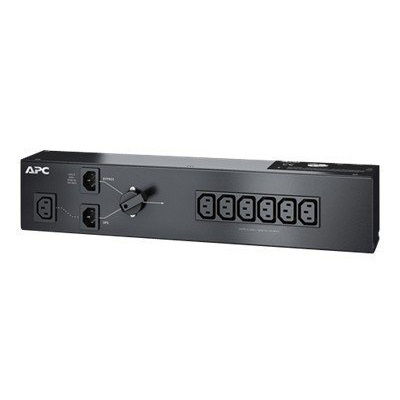

APC SBP1500RMI 230V 6x C13 1x Jumper Outlet Service Bypass PDU

The Service Bypass Panel provides a wrap around system to allow easy maintenance of a UPS by isolating it from the critical load. The panel can be rack (2U) or wall mounted and is available with an integrated Power Distribution Unit (PDU).

• Bypass/UPS switch allows the switching of the supply to the load between the incoming supply and the UPS, so the UPS can be isolated for maintenance.
• Equipment Outlets allowing the SBP to support multiple loads.
• Output receptacle to feed UPS input.
• Equipment outlet circuit breaker providing outlet protection.
• Utility input terminal block access panel and hardwire knockout.
• Equipment output terminal block access panel and hardwire knockout.

Main:

• Main Input Voltage: 230 V
• Product or component type: Bypass kit
• Main Output Voltage: 230 V
• Input Connection Type: IEC 60320 C14
• Number of rack unit: 2U
• Cable length: 2.0 m
• Number of cables: 1

Physical:

• Colour: Black
• Height: 8.9 cm
• Width: 43.2 cm
• Depth: 7.6 cm
• Net weight: 2 kg
• Mounting location: Front
• Mounting preference: No preference
• Mounting mode: Rack-mounted

Input:

• Network frequency: 50/60 Hz
• Permissible voltage: 220-240 V
• Max line current: 10 A
• Input current limits: 10 A
• Load capacity: 1500 VA
• Power factor: 0-1

Output:

• Max current draw: 10 A
• Number of power socket outlets: 6 IEC 60320 C13, 1 IEC Jumpers
• Number of power socket outlets: 6
• Protection type: Circuit breaker
• Power cable length: 1.2 m
• Efficiency: 99 %

Conformance:

• Product certifications: VDE
• Standards: EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Environmental:

• Ambient air temperature for operation: 0-40 °C
• Relative humidity: 0-95 %
• Operating altitude: 0-15000 ft
• Ambient air temperature for storage: -15-45 °C
• Storage Relative Humidity: 0-95 %

• Service Bypass Panel
• User manual
• Rack mounting brackets
