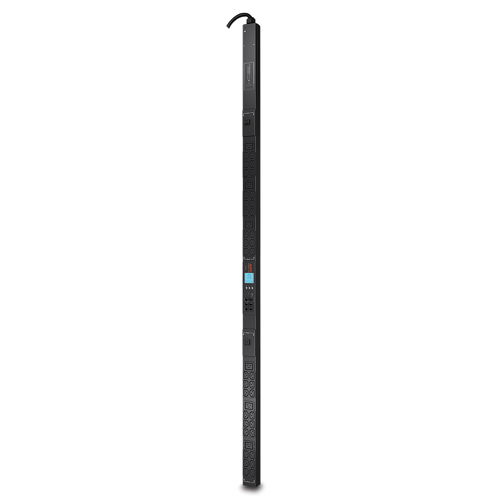

APC PDU Meter Zero U 32A 230V 36 x C13 6 x C19

APC PDU Meter Zero U 32A 230V 36 x C13 6 x C19

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

• Nominal Output Voltage 230V
• Maximum Total Current Draw per Phase 32A
• Output Connections (36) IEC 320 C13 / (6) IEC 320 C19
• Overload Protection
• Cord Length 3 meters
• Nominal Input Voltage 200V,208V,230V
• Input Frequency 50/60 Hz
• Input Connections IEC 309 32A 2P+E
• Cord Length 3 meters
• Number of Power Cords 1
• Acceptable Input Voltage 220-240 VAC
• Maximum Line Current per phase 32A
• Maximum Input Current per phase 32A
• Dimensions Net Weight 6.93 KG Maximum Height 1791mm Maximum Width 56mm Maximum Depth 44mm
• Operating Environment -5 - 45 °C
• Operating Relative Humidity 5 - 95%
• Operating Elevation 0-3000 meters
• Storage Temperature -25 - 65 °C
• Storage Relative Humidity 5 - 95%
• Storage Elevation 0-15000 meters
• Regulatory Approvals IEC 60950,VDE
• Environmental Compliance RoHS,REACH: Contains No SVHCs,Contains Lithium Battery
