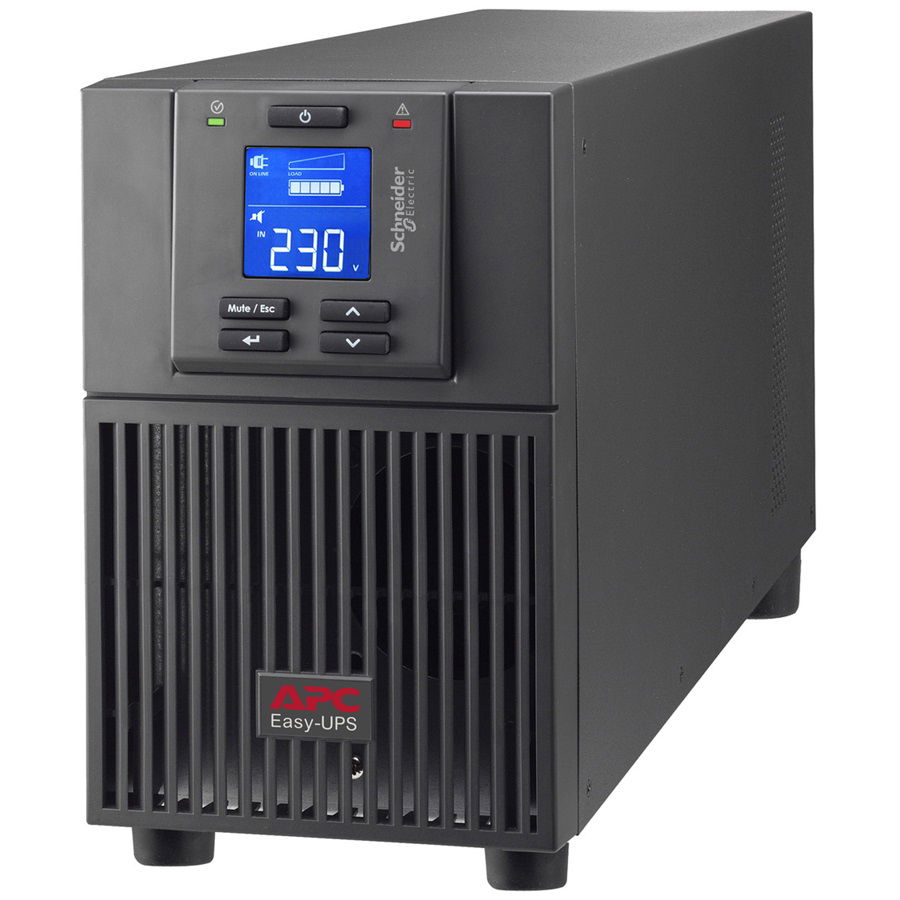

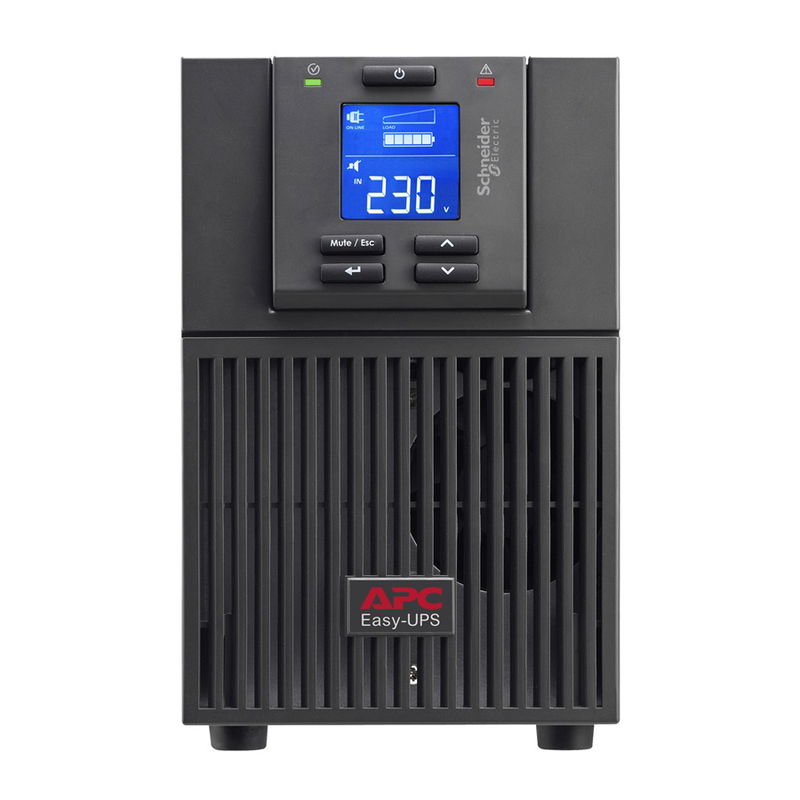

APC Easy UPS SRV 2000VA 1800W 4 Outlet Online Double Conversion Tower UPS

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV204. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• Replacement battery is available (sold separately)
• 2000VA/1800W double-conversion on-line pure sine wave tower UPS
• High operating efficiency in energy-saving ECO mode
• Prolonged battery life with intelligent temperature-compensated charging
• Easy-to-read LCD interface for detailed and accurate information on UPS status

Main:

• Run time for load 1800 W: 3min 4s
• Max. Capacity Used: 100 %
• Main Input Voltage: 230 V
• Product or component type: Uninterruptible power supply (UPS)
• Other Input Voltage: 220 V, 240 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Rated power in W: 1800 W
• Rated power in VA: 2000 VA

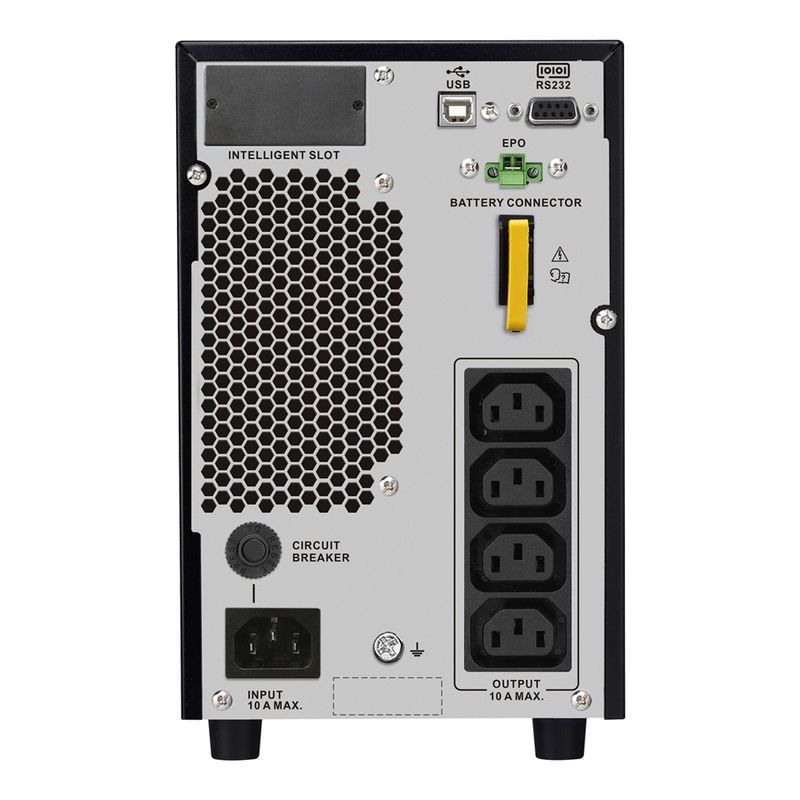

• Input Connection Type: IEC 60320 C14
• Output connection type: 4 IEC 60320 C13
• Cable length: 1.5 m
• Number of cables: 1
• Range of product: Easy UPS On-Line

Batteries & Runtime:

• Battery type: Lead-acid battery
• Battery voltage: 48 V
• Extended runtime: 0
• Number of battery filled slots: 0
• Number of battery free slots: 0
• Battery recharge time: 4 h
• Battery life: 3-5 year(s)
• Replacement battery: APCRBCV204
• Battery charger power: 70 W rated

General:

• Max runtime: 3 min
• Number of power module filled slots: 0
• Number of power module free slots: 0
• Redundant: No

Input:

• Input voltage limits:110-285 V 40% load, 180-285 V full load
• Network frequency: 40-70 Hz auto sensing

Output:

• Maximum configurable power in VA: 2000 VA
• Maximum configurable power in W: 1800 W
• Output frequency: 50/60 Hz +/- 3 Hz sync to mains
• Harmonic distortion: 3 %
• UPS type: Double conversion online
• Wave type: Sine wave
• Efficiency: 88 % (full load)
• Additional information: Configurable for 220 : 230 or 240 nominal output voltage
• Bypass type: Internal bypass (automatic and manual)
• Crest factor: 3 : 1

Conformance:

• Product certifications: CE, UKCA, TISI
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Environmental:

• Ambient air temperature for operation: 0-40 °C
• Relative humidity: 0-95 % non-condensing
• Operating altitude: 0-3000 m
• Ambient air temperature for storage: -20-50 °C
• Storage Relative Humidity: 0-95 % non-condensing
• Storage altitude: 0-15000 m
• Acoustic level: 50 dBA
• Heat dissipation: 759 Btu/h
• IP degree of protection: IP20

Communications & Management:

• Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Free slots: 1
• Control panel: Multifunction LCD status and control console

Surge Protection and Filtering:

• Surge energy rate: 945 J

Physical:

• Colour: Black (RAL 7010)
• Height: 23.8 cm
• Width: 14.5 cm
• Depth: 40 cm
• Product weight: 17.0 kg
• Mounting location: Front
• Mounting preference: No preference
• Mounting mode: Not rack-mountable
• USB compatible: Yes
• Mounting position: Vertical

• 1 APC Easy UPS
• 1 IEC 60320 C13 to Schuko power cable
• 1 IEC 60320 C13 to C14 power cable
• 1 USB cable
• 1 RS-232 configuration cable
• User manual
