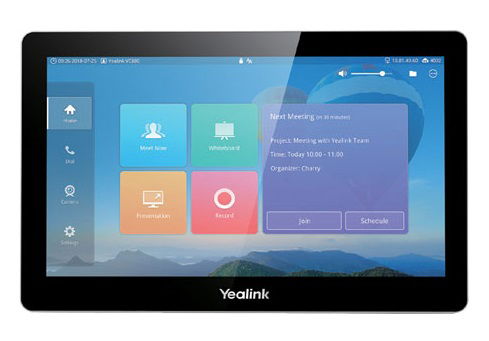

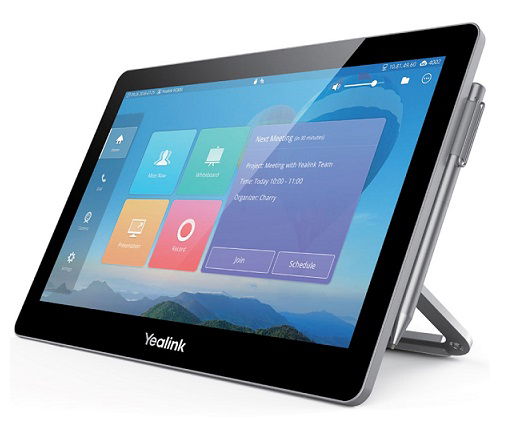

Yealink CTP20 13.3 Inch Collaboration Touch Panel

CTP20 is a collaboration touch panel that can be paired with Yealink’s new generation video conference solutions. Its 13.3-inch touch screen and user-centered interactive design allow users to join or control a meeting quickly and effortlessly. It greatly reduces the difficulty of using video conferencing system and creates a better meeting experience.

Richer and Easier Meeting Control Features
CTP20 adopts effortless and user-centered interaction design, making meeting control could not be more easier. The touch control of the screen outperforms traditional control modes magnificently.

More Efficient Collaboration
CTP20 features a built-in whiteboard, and up to 4 CTP20 units can be used simultaneously in one system. Multiple participants can write on the whiteboard at the same time, the real-time handwriting presentation allows participants to see what is being written with no latency and makes discussions much more effective.

Natural Writing and Free from Distraction
CTP20 fuses together the industry-leading 13.3-inch touch screen and a scalable canvas, such
that every single idea can be recorded on the ample space provided by CTP20.

Clutter-free Meeting Space
CTP20 supports PoE where one cable carries both data and power for the device. Data
transmission between CTP20 and the endpoint is realized either by cable or by Wi-Fi, which
eliminates the tricky wiring connections between the TV area and the conference table, turning
the clean and well-organized meeting spaces into reality.

• Screen: 13.3-inch IPS FHD capacitive touch screen
• Resolution: 1920x1080 (16:9)
• Touch: 10 points multi-touch
• Built-in microphone: 1x Omni-directional microphone for voice pickup
Wi-Fi: 2.4G/5G Wi-Fi, IEEE 802.11n/ac
• Interface: 1x USB 2.0 Type-A for connecting the USB flash drive to save recording files, 1x USB 2.0 Type-C for content sharing when connecting with PC, 1x RJ45 Ethernet for power and data connection, 1x Security lock slot, 1x Reset slot
• Power input: PoE 48V 0.27A
• Power Consumption: 7W
• USB Output: 5V 500mA
• Stand: Adjustable angle (15°~70°)
• Pen: 1x Active Pen with 1024 pressure levels
• Dimension (WxDxH): 321.5x 118 x 196 mm
