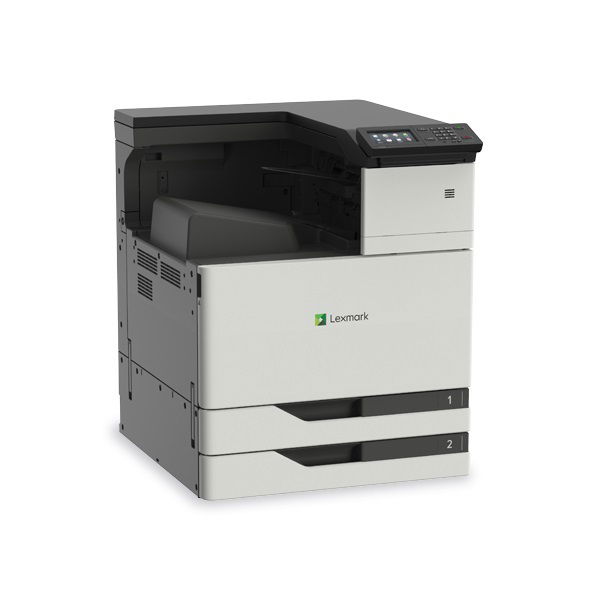

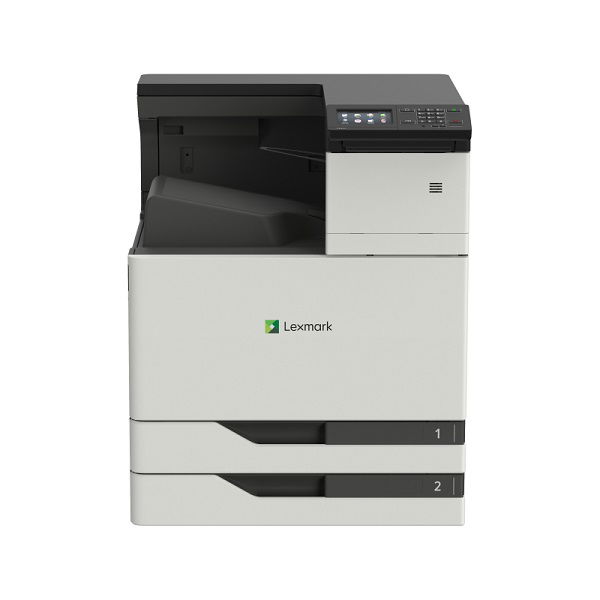

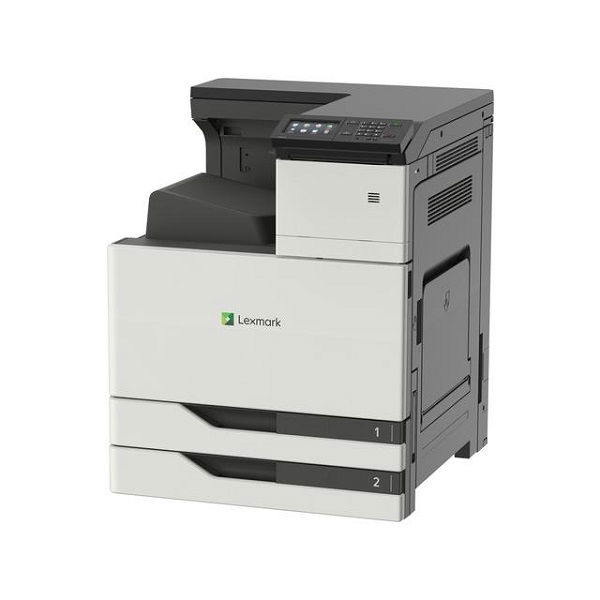

Lexmark CS923de A4/A3 55ppm Duplex Colour Laser Printer

The Lexmark CS923de delivers high-volume colour printing at up to 55 pages per minute (A4/letter) and multi-format output up to SRA3/12x18 with optional finishing.

Professional colour tools:
Match your most critical colours and present your boldest ideas with a well-stocked colour toolbox that includes PANTONE calibration, embedded colour sample pages and Lexmark Colour Replacement for easy matching of spot and RGB colours.

High-capacity production yields:
Get input capacity up to 6,650 sheets with optional trays and up to 3,500 sheets of output with optional finisher, minimising paper handling. Genuine Lexmark toner cartridges print up to 34,000 mono or colour pages, while fusers and developer units go up to 720,000 and 600,000 pages, respectively, for impressive uptime.

Multi-format output:
Make a big impression with colour output up to SRA3/12x18, handle A4/letter-size jobs with ease, and use the multipurpose feeder for everything down to small envelopes. Among the wide range of media types accepted are card stock, glossy stock, recycled paper, transparencies and labels.

Finishing options:
Expand your capabilities with finishing options that include multi-position stapling, hole punch, booklet, saddle stitch and tri-fold. The finisher raises output capacity to 3500 sheets.

Solutions:
Enhance your user experience and productivity with included solution apps like “Forms and Favourites,” which lets you locate and print forms from network storage locations or content management applications right from the touch screen.

Intuitive colour touch screen:
The 4.3-in. colour touch screen with next-generation e-Task interface features an ultra-smooth surface and can be activated by almost anything, including pens, fingertips or nails—without pressure or direct skin contact. The modern interface is familiar to users, minimising the need for training.

General Specs:

• Print Technology: Colour Laser
• Function: Colour Printing
• Workgroup Size: Medium-Large Workgroup
• Display: Lexmark e-Task 4.3-inch (10.9 cm) colour touch screen
• Media Sizes Supported: A6, Oficio, Super Tabloid (12 x 18"), 7 3/4 Envelope, JIS-B4, 9 Envelope, A3, A4, Legal, SRA3, A5, Letter, B5 Envelope, 4 x 6", Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope
• Included Paper Handling: 250-Sheet Output Bin, Integrated Duplex, 150-Sheet Multipurpose Feeder, 2 x 500-Sheet Input
• Standard Ports: Two Rear USB 2.0 Specification Hi-Speed Certified ports (Type A), Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B), One Internal Card Slot
• Size (mm - H x W x D): 780 x 615 x 770 mm
• Weight: 88.5 kg

Printing:

• Print Speed: Up to: Black: 55 ppm (A4), Colour: 55 ppm (A4)
• Print Speed Duplex: Up to: Black: 55 spm (A4)
• Time to First Page: as fast as: Black: 5.2 seconds, Colour: 6.1 seconds
• Print Resolution: Black: 1200 x 1200 dpi, 2400 IQ (2400 x 600 dpi), Colour: 1200 x 1200 dpi, 2400 IQ (2400 x 600 dpi)
• Duplex: 2-sided: Integrated Duplex
• Printable Area: metric: 4.2, 3, 3, 3 mm of the top, bottom, right and left edges (within)

Paper Handling:

• Media Types Supported: Labels, Banner Paper, Card Stock, Plain Paper, Envelopes, Refer to the Paper & Specialty Media Guide
• Finishing Option: Yes
• Number of Paper Inputs: Standard: 3, Maximum: 6
• Paper Input Capacity: Standard: 1150 pages 75 gsm bond, Maximum: 6650 pages 75 gsm bond, 1150 pages 75 gsm bond
• Paper Output Capacity: Up to: Standard: 250 pages 75 gsm bond, Maximum: 3500 pages 75 gsm bond
• Paper Weight Range Supported: gsm: 60 - 256 gsm (Standard Tray), 60 - 300 gsm (Multipurpose Feeder)
• Finishing Functions: Offset stacking, Stapling, Hole punching, Booklet fold and saddle stapling
• Optional Paper Handling: Staple Finisher, 2500-Sheet Tandem Tray, 3000-Sheet Tray, Staple Punch Finisher, Booklet Finisher, 2 x 500-Sheet Tray
• Recommended Monthly Page Volume: 7000 - 50000 pages
• Maximum Monthly Duty Cycle: Up to: 250000 pages per month
• Size: mm - H x W x D: Trays Extended: 30 x 37.5 x 44.38 in., Trays Extended: 762 x 953 x 1127 mm
• A3: Yes

Cartridges & Imaging:

• Laser Cartridge Yields: up to: 11,500-page Colour (CMY) Cartridges, 18,500-page Black Cartridge, 34,000-page Colour (CMY) High Yield Cartridges, 34,000-page Black High Yield Cartridge
• Developer Unit(s) Estimated Yield: Up to: 600000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage
• Cartridge(s) Shipping with Product: 11,500-page Colour (CMY) Toner Cartridges, 18,500-page Black Toner Cartridge

Hardware:

• Processor Speed: Quad Core 1.2 GHz
• Memory: Standard: 1024 MB, Maximum: 3072 MB
• Hard Disk: Option available
• Printer Languages: Standard: PCL 5c Emulation, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image, AirPrint
• Fonts and Symbol Sets: 2 PCL bitmap fonts, 15 PPDS bitmap fonts, OCR-A, OCR-B scalable PCL 5e fonts, For more information, refer to the Technical Reference., 165 scalable PostScript fonts, 84 scalable PCL fonts, 3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide, 39 scalable PPDS fonts
• Touch Screen Display: Yes

Connectivity:

• Direct USB: Yes
• Ethernet Network: Yes
• Wireless: Wireless Option
• Network Protocol Support: TCP/IP IPv6, TCP/IP IPv4, TCP, UDP
• Network Printing Methods: LPR/LPD, Direct IP (Port 9100), Pull Printing, Microsoft Web Services WSD, Telnet, Secure IP (Port 96xx), FTP, TFTP, Enhanced IP (Port 9400), ThinPrint .print integration, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)
• Network Management Protocols: DHCP, APIPA (AutoIP), BOOTP, RARP, mDNS, IGMP, Bonjour, WINS, DDNS, SNMPv3, SNMPv1, SNMPv2c, Telnet, NTP, ICMP, HTTP, DNS, ARP, HTTPs (SSL6/TLS), Finger
• Network Security: IPSec, SNMPv3, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS
• Optional Local Ports: Internal 1284-B Bidirectional Parallel, External RS-232C serial
• Optional Network Ports: MarkNet N8230 Fiber Ethernet Print Server, Internal MarkNet N8360 802.11b/g/n Wireless, NFC

Electrical & Operation:

• ENERGY STAR: No
• ENERGY STAR Typical Electricity Consumption: TEC: 1.38 kilowatt-hours per week
• Noise Level: Operating: 26 dBA (Idle), 53 dBA (Print)
• Duplex Print Noise Level: Operating: 54 dBA
• Average Power: 0.2 watts (Hibernate Mode), 2.11 watts (Sleep Mode), 200 watts (Ready Mode), 1050 watts (Printing)
• Specified Operating Environment: Humidity: 15 to 85% Relative Humidity, Altitude: 0 - 2500 metres, Temperature: 10 to 30°C (50 to 86°F)

Supported Operating Systems:

• Microsoft Windows Operating Systems Supported: Windows 10, Windows Server 2008 x64, Windows 8.1, Windows 8, Windows Server 2008, Windows Server 2008 R2, Windows 8 x64, Windows 7 x64, Windows Server 2012, Windows RT 8.1, Windows XP x64, Windows RT, Windows Server 2012 R2, Windows XP, Windows 8.1 x64, Windows Vista x64, Windows Vista, Windows 7
• Apple Operating Systems Supported: Apple OS X (10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13)
• Linux Operating Systems Supported: Debian GNU/Linux 7.0, 8.0, openSUSE 13.1, 13.2, Ubuntu 12.04 LTS, 14.04 LTS, 15.04, Linpus Linux Lite Desktop 2.1, Fedora 21, 22, openSUSE Tumbleweed, Linux Mint 13 LTS, 17 LTS, 17.1 LTS, 17.2 LTS, PCLinuxOS 2014.12, Linux Mint 2 Debian, Red Hat Enterprise Linux WS 4, 5, 6, 7, SUSE Linux Enterprise Server 10, 11, 12, SUSE Linux Enterprise Desktop 10, 11, 12
• Citrix MetaFrame: Microsoft Windows Server 2012 with Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2008 R2 with Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2008 and 2008 X64 Edition with Citrix XenApp 5.0
• Novell Operating Systems Supported: Novell NetWare 6.5 Open Enterprise Server, Novell Open Enterprise Server on SuSE Linux Enterprise Server 12 SP1 (x86 and x64), Novell Open Enterprise Server on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell Open Enterprise Server on SuSE Linux Enterprise Server 10 SP4 (x86 and x64)
• UNIX Operating Systems Supported: Sun Solaris x86 10, 11, Sun Solaris SPARC 10, 11, IBM AIX 5.3, 6.1, 7.1
