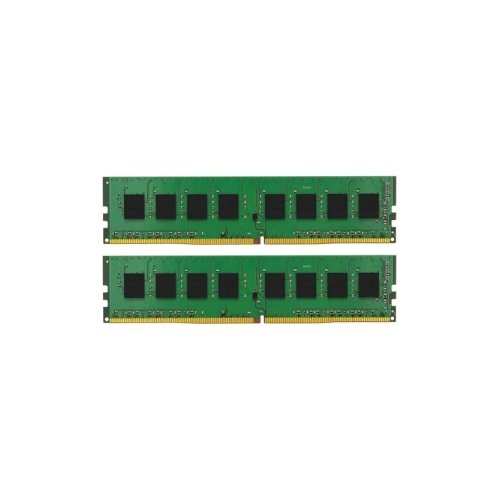

Kingston ValueRAM 16GB DDR4 2666MHz SDRAM Memory - (Kit of 2 x 8GB)

ValueRAMs KVR26N19S8K2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. Total kit capacity is 16GB. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self-refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

• CL(IDD): 19 cycles
• Row Cycle Time (tRCmin): 45.75ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 350ns(min.)
• Row Active Time (tRASmin): 32ns(min.)
• UL Rating: 94 V - 0
• Operating Temperature: 0o C to +85 degrees C
• Storage Temperature: -55o C to +100o C
