Product Description:

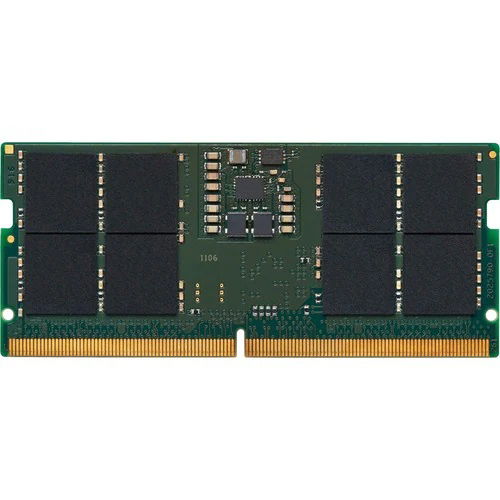

Kingston ValueRAM 16GB DDR5 5200Mhz Non-ECC SODIMM Memory Module
ValueRAM's KVR52S42BS8-16 is a 2G x 64-bit (16GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 262-pin SODIMM uses gold contact fingers
Features:
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
Specifications:
• Memory Capacity: 16GB
• CL(IDD): 42 cycles
• Row Cycle Time (tRCmin): 48ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)
• Row Active Time (tRASmin): 32ns(min.)
• UL Rating: 94 V - 0
• Power Supply: VDD = 1.1V Typical
• Operating Temperature: 0 deg C to +85 deg C
• Storage Temperature: -55 deg C to +100 deg C
• CL(IDD): 42 cycles
• Row Cycle Time (tRCmin): 48ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)
• Row Active Time (tRASmin): 32ns(min.)
• UL Rating: 94 V - 0
• Power Supply: VDD = 1.1V Typical
• Operating Temperature: 0 deg C to +85 deg C
• Storage Temperature: -55 deg C to +100 deg C
Additional Details:
-
Stock Availability: Out of Stock!
-
Warranty: Lifetime
-
Manufacturer:
Kingston Shop
-
Product Found In: Laptop Memory (RAM)
-
Model Number: KVR52S42BS8-16
-
Part Number: T057260
