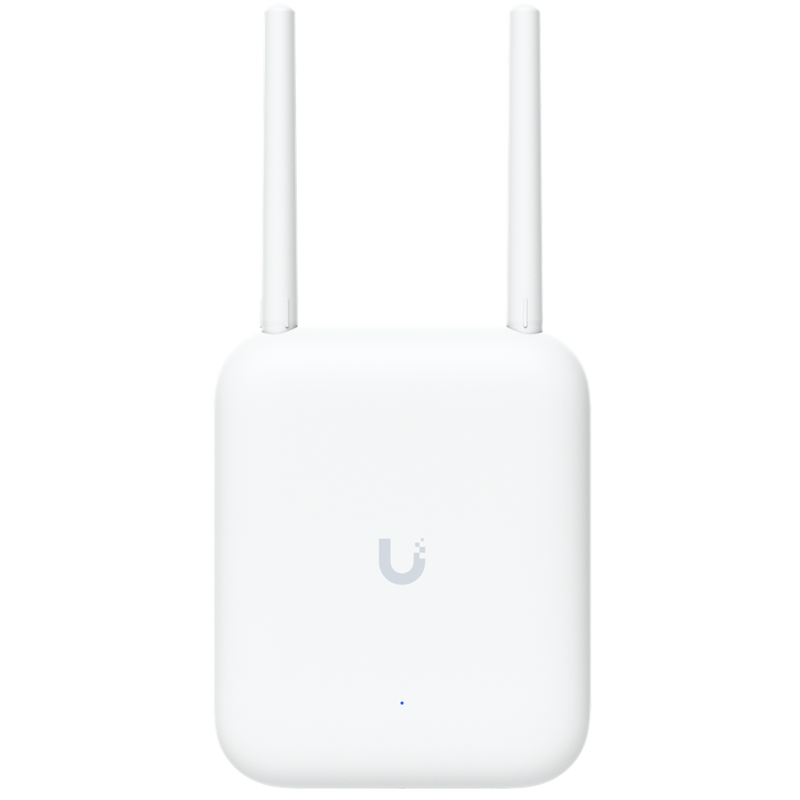

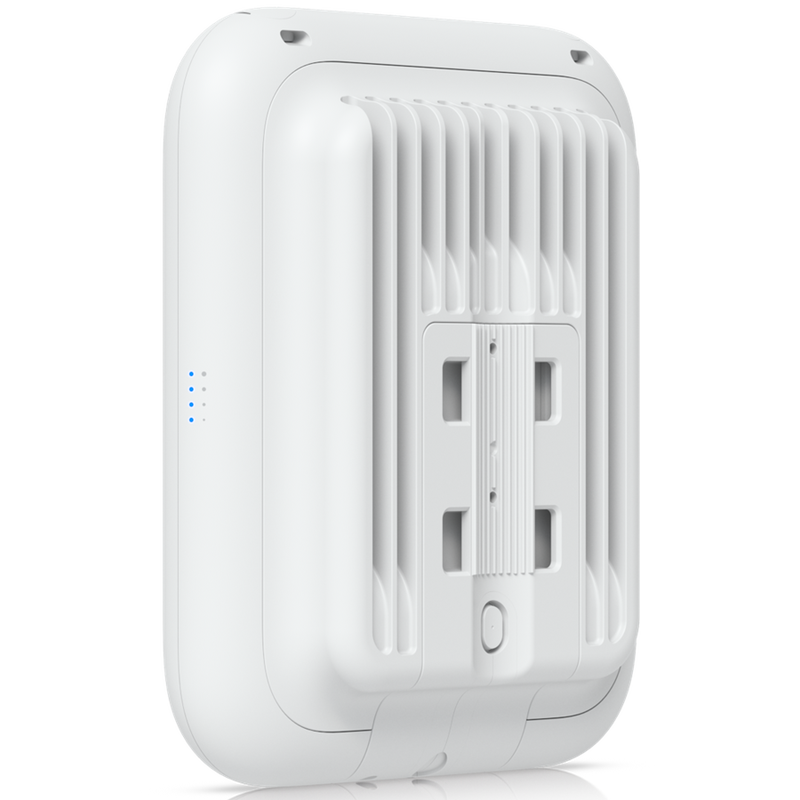

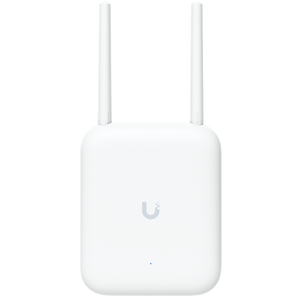

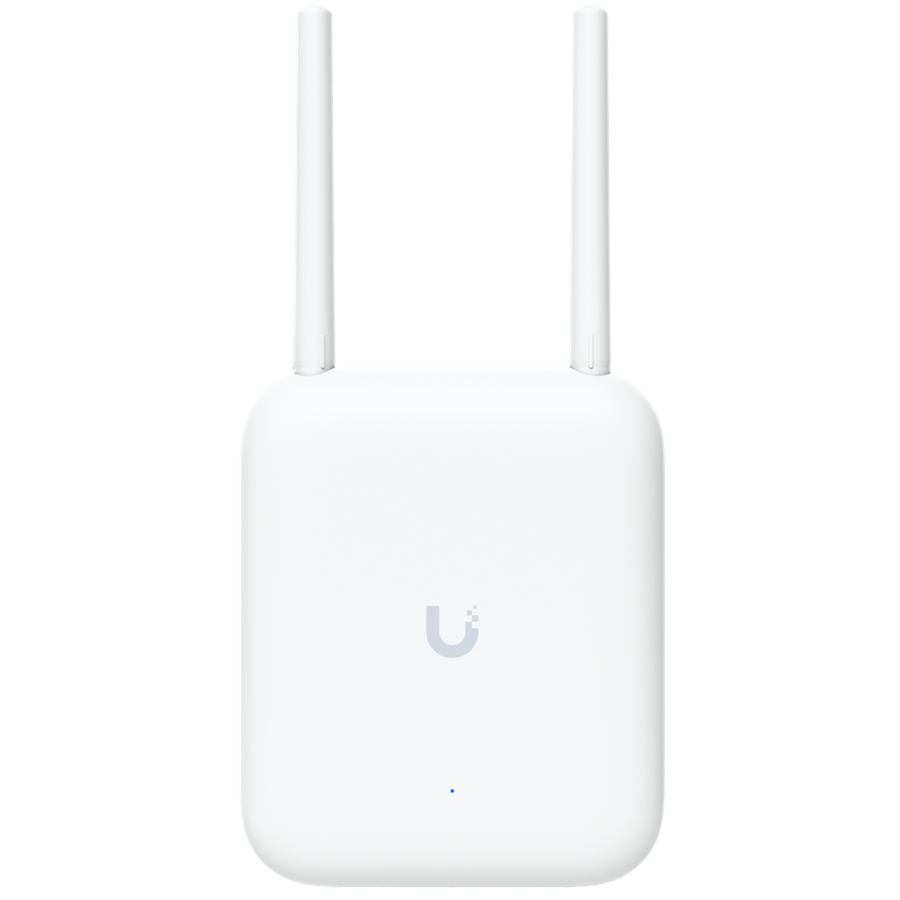

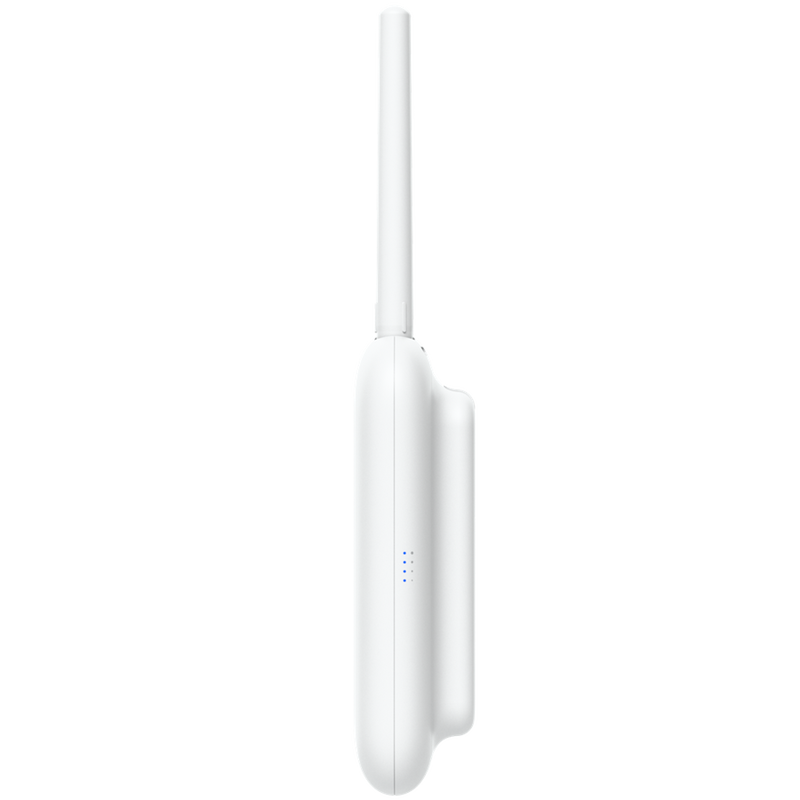

Ubiquiti UniFi U7 Pro Outdoor Tri-Band WiFi 7 Access Point

Ubiquiti UniFi U7 Pro Outdoor Tri-Band WiFi 7 AP is an all-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.

• Wireless Meshing
• Band Steering
• 802.11v BSS Transition Management
• 802.11r Fast Roaming
• 802.11k Radio Resource Management (RRM)
• Advanced Radio Management
• Passpoint (Hotspot 2.0)
• Captive Hotspot Portal
• Custom Branding Landing Page
• Private Pre-Shared Key (PPSK)
• WiFi Speed Limiting
• Client Device Isolation
• WiFi Schedules
• RADIUS over TLS (RadSec)
• Dynamic RADIUS-assigned VLAN

Overview:
• Dimensions: 170 x 208 x 54.5 mm
• WiFi Standard: WiFi 7
• Spatial Streams: 4
• Coverage Area: 465 m² (5,000 ft²)
• Max. Client Count: 250+
• Uplink: 2.5 GbE
• Mounting: Wall, Pole (Mounts Included)
• Weatherproofing: IPX6
• Power Method: PoE+

MIMO:
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate:
• 5 GHz: 4.3 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)

Antenna Gain:
• 5 GHz: Directional internal: 12.5 dBi, 45° x 45°; External omni: 4 dBi, 360° x 30°
• 2.4 GHz: Directional internal: 8 dBi, 90° x 90°; External omni: 3 dBi, 360° x 30°

Max. TX Power:
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm

Max. BSSIDs:
• Max. BSSIDs: 8 per Radio

Supported Data Rates:
• 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Hardware:
• Max. Power Consumption: 19W
• Supported Voltage Range: 42.5-57V DC
• Networking Interface: (1) 1/2.5 GbE RJ45 port
• Weight: 1.2 kg (2.6 lb)
• Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
• Pole Mount Diameter: 1-2.36" (25-60 mm)
• Antennas: (1) Directional internal antenna, (2) External omni antennas, (2) RP-SMA connectors for external antenna
• Antenna beamwidth: 5 GHz - 45°; 2.4 GHz - 90°
• Management: Ethernet
• Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
• Mount Material: Polycarbonate, SGCC steel
• LEDs - System: (1) Power: White/Blue, (1) System: White/Blue, (4) Mesh Signal: Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel
• Operating Frequency - Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz
• Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
• Ambient Operating Humidity: 5 to 95% noncondensing

• Application Requirements: UniFi Network - Version 8.2.93 and later

• U7 Wireless Access Point
• Wall, Ceiling, Pole Mount
