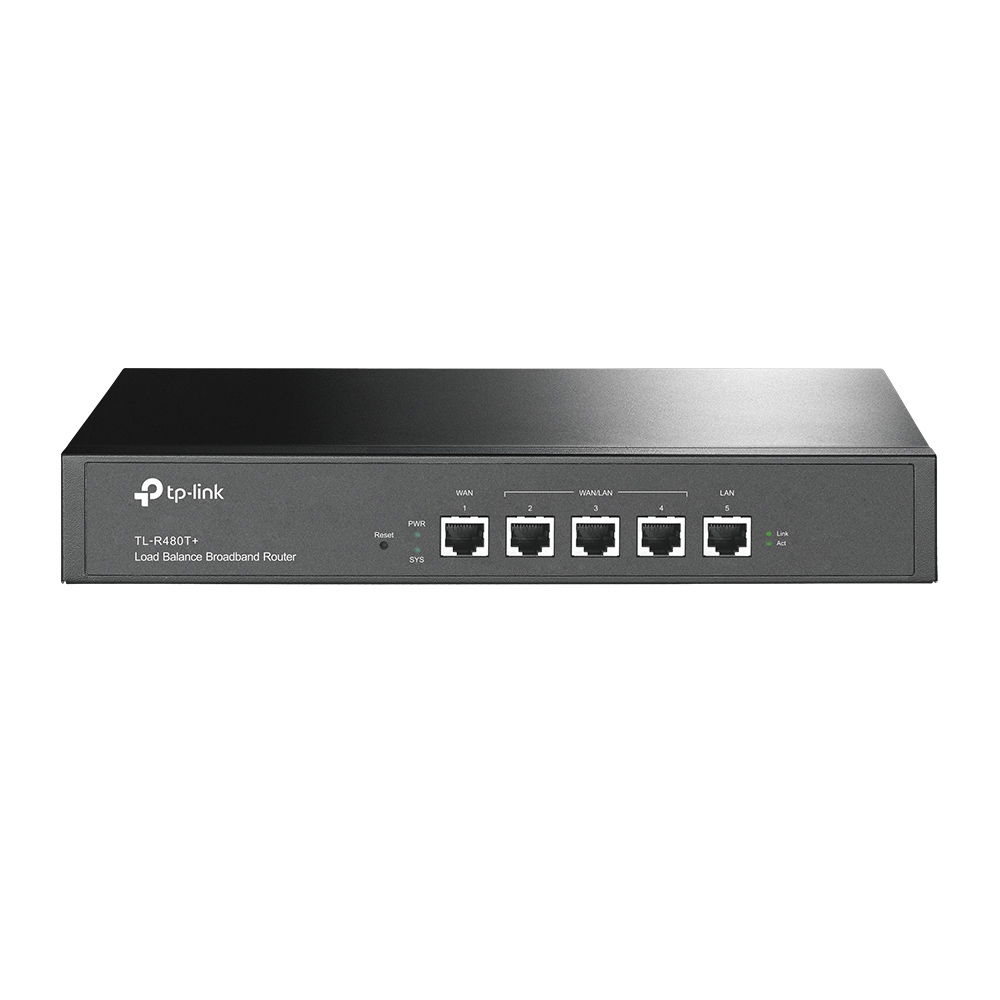

TP-Link TL-R480T+ 2 WAN ports + 3 LAN ports Load Balance Router

TL-R480T features much more advanced functions to ensure your consistent network uptime and reliable Ethernet connectivity, such as Bandwidth Control, Rate Limit, Session Control. With multiple functions, high-reliability, and high-security, it widely meets the requirements of small business, office, Internet cafe.

• Dynamic IP, Static IP, PPPoE, L2TP, PPTP, Dual Access and BigPond Cable Internet connection options easily connect to Internet
• Built-in DHCP server supports static IP address distribution
• Time-based access control allows parents or administrators to establish restricted access policies for children or staff
• IP-based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC which guarantees the performance of VoIP or video applications
• PPPoE server and E-Bulletin help administrators better manage the client accounts
• App Control function helps administrators to deploy restrictions of IM/P2P, proxy or many other Apps easily
• Built-in firewall supports IP address filtering, MAC address filtering, URL filtering and WEB Contents(Java, ActiveX, Cookies) Filtering
• IP and MAC binding function effectively prevents ARP virus attacks
• Powerful DoS attack protection safeguards your network
• Virtual Server, Special Application, DMZ host and UPnP help users build their own servers
• DDNS helps users utilize remote management easily with a domain name
• Note: Above information apply to TL-R480T+ version 5.0 ONLY.

• Standards and Protocols: IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS
• Interface: 1x Fixed Ethernet WAN Port; 1x Fixed Ethernet LAN Port; 3x Changeable Ethernet WAN/LAN Ports
• Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
• Flash: 4MB
• DRAM: 64MB
• LED: PWR, SYS, WAN, LAN, WAN/LAN
• Button: Reset Button
• Dimensions (W X D X H): 294*180*44mm
• 13-inch Standard Rack-Mount Width, 1U Height
• Power Supply: Internal Universal Power Supply AC100-240V~50/60Hz input
• Concurrent Session: 30000
• DHCP: DHCP Server/Client, DHCP Address Reservation
• MAC Clone: Modify WAN/LAN MAC Address
• Switch Setting: Port Mirror, Rate Control, Port Configuration, Port VLAN
• WAN Connection Type: Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable
• ACL: IP/MAC/URL/WEB Filtering
• Forwarding: Virtual Server, Port Triggering, DMZ
• Load Balance: Policy Routing, Link Backup
• NAT: One-to-One NAT, Multi-Nets NAT, Routing Static Routing
• Security : FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death
• Traffic Control: Bandwidth Control, Session Limit
• Maintenance: Time Setting, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup/Restore, System Log, Remote Management, Statistics
• Service: PPPoE Server, E-Bulletin, Dynamic DNS, UPnP, App Control

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux

• TL-R480T+
• Power Cord
• RJ-45 Ethernet Cable
• Installation Guide
• Resource CD
