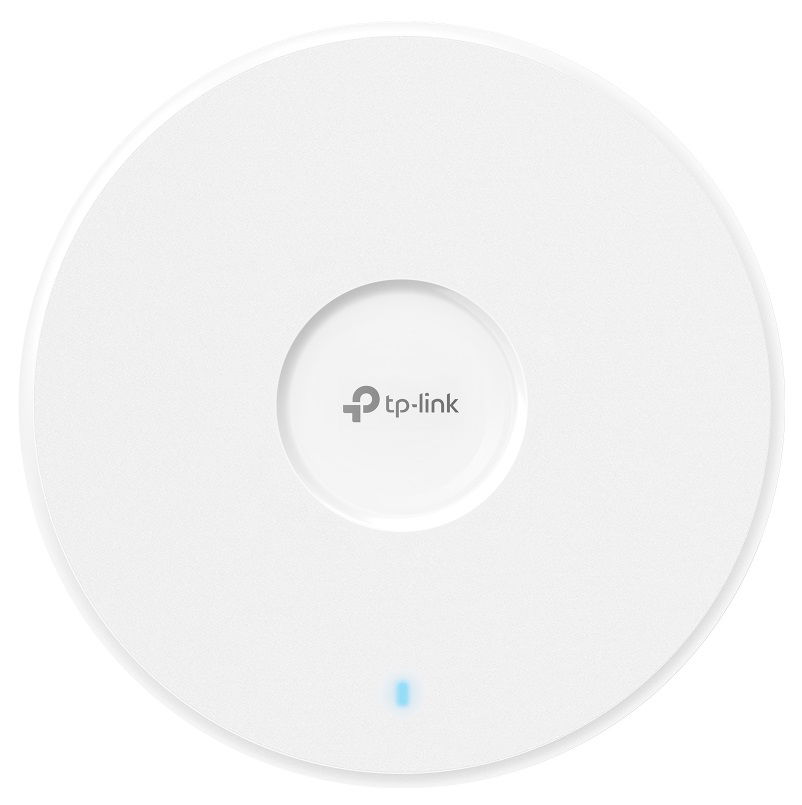

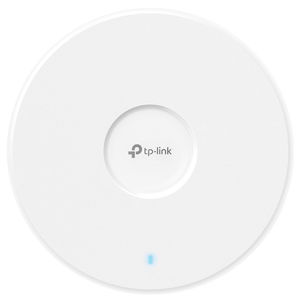

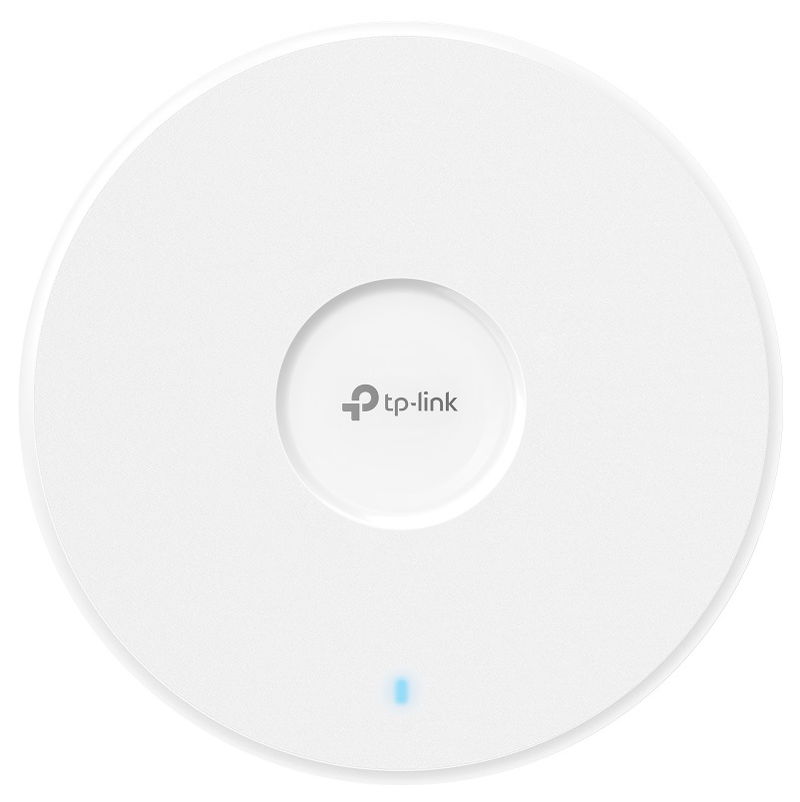

TP-Link EAP773 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Wireless Access Point

Ultra-Thin Enterprise Wi-Fi 7 Access Point to Redefine Your Business Network.

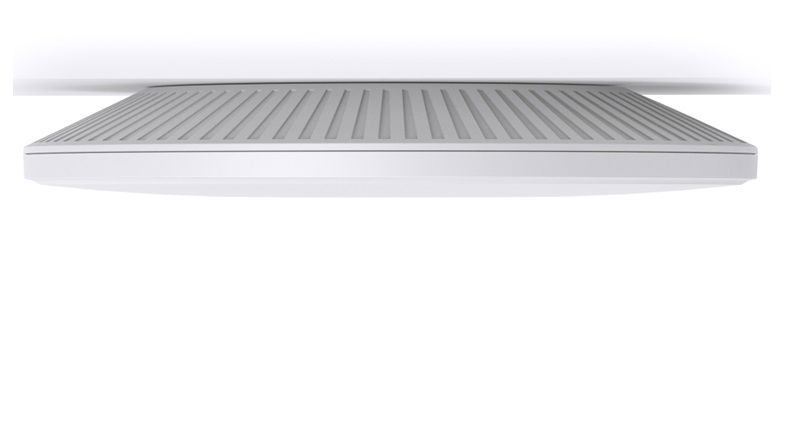

Ultra-Thin Design for Flexible Deployment:
The overall design of EAP773 utilises a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

Supersized Throughput for Better Experiences:
With the brand-new 6 GHz band open to applications, Wi-Fi 7 supports extending channel width to 320 MHz. Compared to Wi-Fi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. Making full use of these new resources, the throughout of EAP773 reaches up to 9214 Mbps.

Higher Capacity for Increased Traffic Demands:
Wi-Fi 7 supports 4096-QAM with 12 bits rather than Wi-Fi 6’s 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, EAP773 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.

Lower Latency for Boosted Network Reliability:
EAP773 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and the interference will be blocked to improve reliability.

Seamless Integration into Omada SDN:
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralised cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.

Hardware:

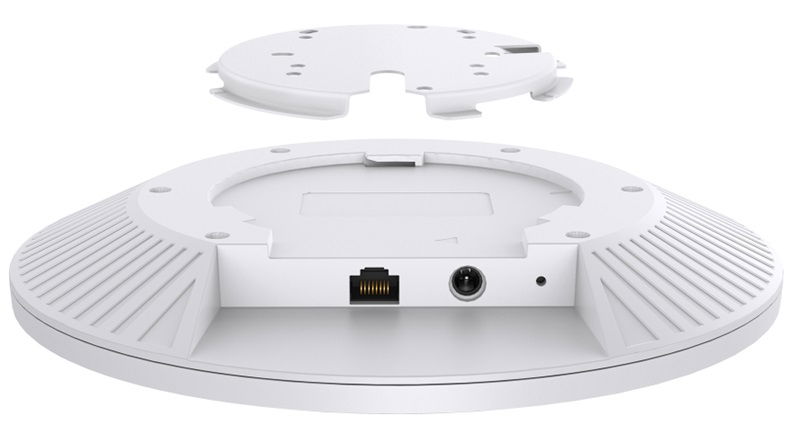

• Interface: 1x 10G Ethernet Port
• Button: Reset
• Power Supply: 802.3at PoE or 12V/2.5A DC
• Antenna: 2.4 GHz: 2× 4.0 dBi, 5 GHz: 2× 5.0 dBi, 6 GHz: 2× 5.0 dBi
• Bluetooth: 1x 4.0 dBi, Bluetooth 5.2
• Mounting: Ceiling /Wall Mounting

Wireless:

• Coverage: 140㎡(1500 ft²)
• Concurrent Clients: 380+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Frequency: 6 GHz, 5 GHz, and 2.4 GHz
• Signal Rate: 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)
• Wireless Functions: MLO, 4K-QAM, Seamless Roaming(802.11k/v/r), MU-MIMO (2*2 DL/UL MU-MIMO), HE320, Mesh, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDS:24(8 on each band), Wireless Schedule, Reboot Schedule, QoS(WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
• Wireless Security: Captive Portal Authentication, Access Control, Maximum number of MAC Filter: 4,000, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: < 20 dBm (2.4 GHz, EIRP), < 23 dBm (5 GHz, band 1&band 2, EIRP), < 28 dBm (5 GHz, band 3, EIRP), < 23dBm (6 GHz, EIRP)

Management Features:

• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes. Require the use of an Omada controller.
• Email Alert: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Yes
• Web-based Management: Yes

Others:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
• Dimensions (WxDxH): 220 × 220 × 32.5 mm
