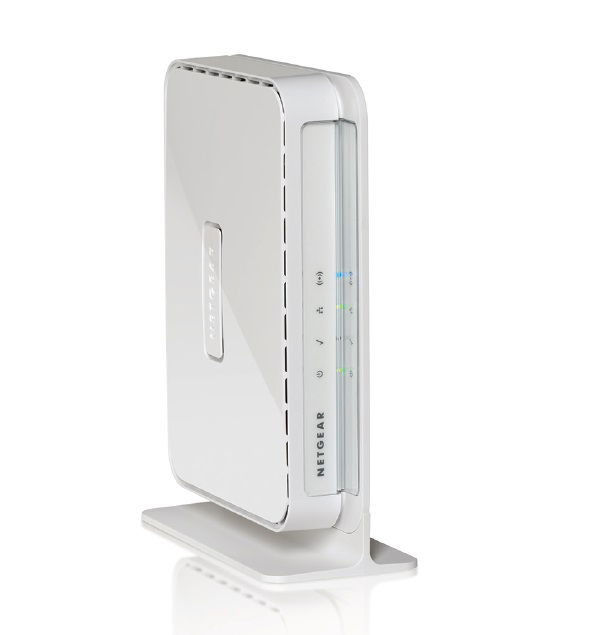

Netgear WN203 Prosafe Wireless-N 300 Access Point

Features:

• Business Class 802.11n (300 Mbps)
• Standalone configuration for easy set up
• Power over Ethernet for flexible deployment
• Multiple SSID for enhanced security

The NETGEAR ProSAFE WN203 Wireless-N Access Point provides standalone configuration for easy setup for a reliable, high-performance and affordable 802.11n wireless solution for small or medium businesses. Power over Ethernet enables flexible deployment and multiple SSID provide enhanced security.

• Comprehensive security with support of wireless security (WPA, WPA2) and rogue AP detection
• Enterprise-grade wireless security with 802.1x and Radius servers
• Multiple SSIDs with captive guest portal with VLAN segmentation for added security
• Deploy over large areas with WDS point-to-point and point-to-multipoint bridging
• Quality of service (QoS) with WMM and save battery power for clients with WMM Power Save
• Easy of deployment with standard 802.3af Power over Ethernet (PoE) to eliminate external power adapters
• Wall or desk mounting for flexible deployment
• Connectors for external antennas for added coverage range

Technical Specifications:

Power
• Country-specific plug: 12 watt, 12V,1 Amp power adapter
• Power over Ethernet
• Power consumption: 4.0W

Physical Dimensions
• Dimensions (L x W x H): 173 x 133 x 35 mm

Weight
• Weight: 240 g (0.5 lb)

Mounting
• Desktop, wall, and ceiling
• Interfaces and Indicators

Physical Interfaces
• One (1) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X) with IEEE 802.3af
• Power over Ethernet (PoE) support
• Two (2) reverse SMA antenna connectors

LEDs
• Power, test, LAN, wireless
• Default Reset

Environmental Conditions
Operating Temperature
• Minimum (C/F) 0/32
• Maximum (C/F) 45/113
Storage Temperature
• Minimum (C/F) -20/-4
• Maximum (C/F) 70/158
Operating Relative Humidity
• Minimum 10%
• Maximum 90%
Storage Humidity
• Minimum 5%
• Maximum 95%
MTBF
• @ 25 degrees C > 375,000 hours
• @ 50 degrees C >125,000 hours
MTBF
• @ 25 degrees C > 375,000 hours
• @ 50 degrees C >125,000 hours

RF Characteristics
Standards
• IEEE 802.11n 2.0 specification
• IEEE 802.11g
• IEEE 802.11b

Frequency Band
• 2.4 G Hz
• 802.11n Transmit x Receive
• 2x2

Maximum Theoretical Throughput
• 300 Mbps

Maximum Transmit Power
• 22 dBm @ 802.11b (1 Mbps)
• 21 dBm @ 802.11g (6 Mbps)
• 21 dBm @ 802.11n (MCS0)

Network Management
Deployment options
• Standalone
• Web UI
• SSL
• SNMP
• SNMP v1, v2 with 802.11 standard and proprietary MIBs
• Remote configuration and management through Web browser, or SNMP

Wireless
• IEEE 802.11 b/g/n 300 Mbps† Wireless Access Point
• Antenna: 3 dBi (internal) with additional (2) 2.4 GHz detachable antenna connectors
• Advanced Wireless
• WDS Point-to-point wireless bridge mode
• WDS Point-to-multipoint wireless bridge mode
• WDS Repeater mode
• Adjustable Transmit Power Control (TPC)

Security
• Wired Equivalent Privacy (WEP) Encryption
• WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK)
• Rogue AP detection
• IEEE 802.1x Authentication
• MAC Address filtering
• 8 BSSID
• IEEE 802.1x Radius (EAP TLS, TTLS, PEAP)
• Wireless access control to identify authorized wireless devices
• MAC ACL

Wireless Client Mode
• VPN Pass-through

VLANs
• 64
• 802.11e WMM
(Wireless multimedia mode) for QoS
• Simultaneous Bridge / Client Association
• Bandwidth Management

Package Contents:

• ProSAFE Business Class 802.11n Wireless Access Point (WN203)
• Ethernet cable
• Desktop and wall mounting kits
• Installation guide
• Resource CD
• Power adapter, localized to country of sale
• Warranty/support information card
• Warranty and Support

Warranty
• Access Point: NETGEAR Lifetime Warranty
• Power supply: NETGEAR 3-year Warranty

Safety Certification
• UL/cUL, CE (EN60950-1)
