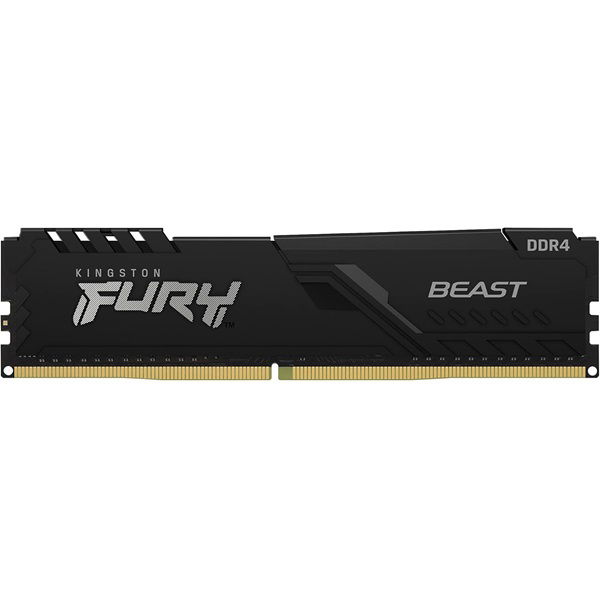

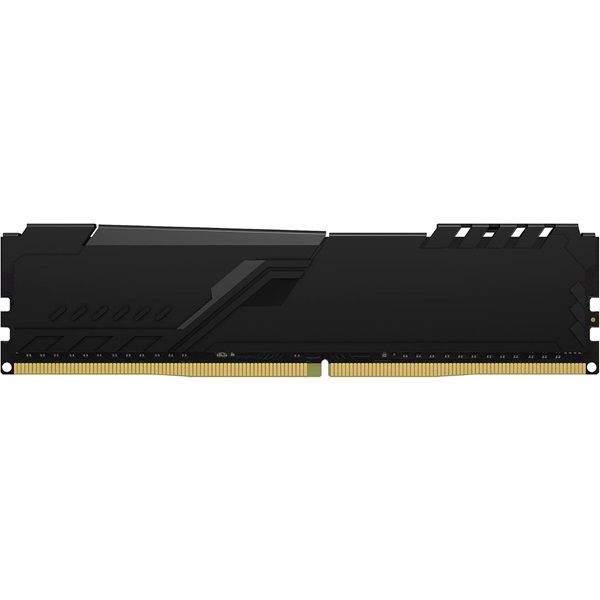

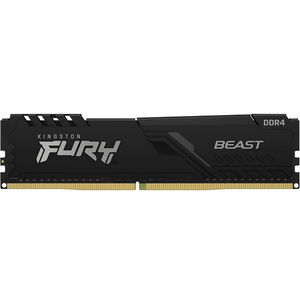

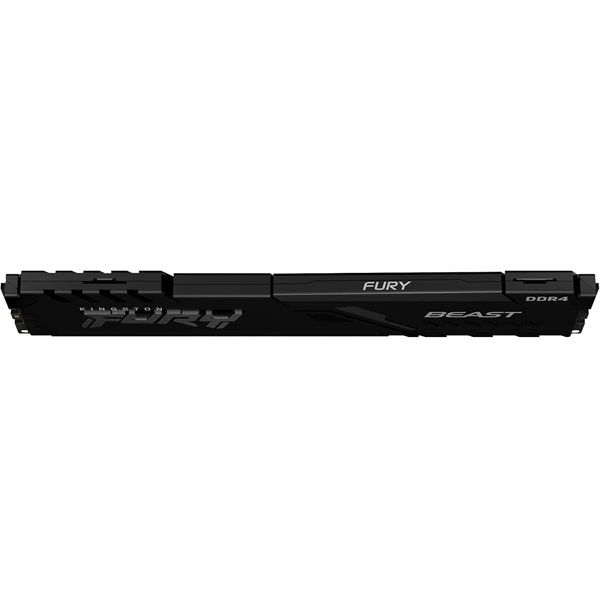

Kingston FURY Beast 16GB DDR4 2666Mhz DIMM Memory

Kingston FURY KF426C16BB/16 is a 2G x 64-bit (16GB) DDR4-2666 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-2666 at a low latency timing of 16-18-18 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 288-pin DIMM uses gold contact fingers.

Low-profile heat spreader:
The sleek-looking new heat spreader is a great upgrade for your battle station's style.

High-performance, cost-effective upgrade:
Kingston FURY Beast DDR4 is the perfect choice for a system builder, or someone looking for an upgrade to jump start their sluggish system.

Intel XMP-Ready:
Our engineers have predefined Intel Extreme Memory Profiles designed to maximize the performance of our memory modules reaching speeds up to 3733MHz.

Ready for AMD Ryzen:
Get memory that's ready for Ryzen and will seamlessly integrate with your AMD-based system. A reliable, compatible performance boost for your build.

Plug N Play - Automatic overclocking up to 2666MHz:
A simple and easy Plug N Play upgrade, Kingston FURY Beast DDR4 will auto-overclock itself to the highest listed speed allowed by the system BIOS.

• Number of Pins: 288-pin
• Form Factor: DIMM
• CAS Latency: CL16
• Number of Modules: 1 x 16GB
• Speed: 2666 MHz
• Size: 16 GB
• Technology: DDR4 SDRAM
• Memory Standard: DDR4-2666/PC4-21333
• Dimension: 7.2 x 34.1 133.4 mm
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• CL(IDD): 16 cycles
• Row Cycle Time (tRCmin): 45.75ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 260ns(min.)
• Row Active Time (tRASmin): 29.25ns(min.)
• UL Rating: 94 V - 0
• Operating Temperature: 0°C to +85°C
• Storage Temperature: -55°C to +100°C
