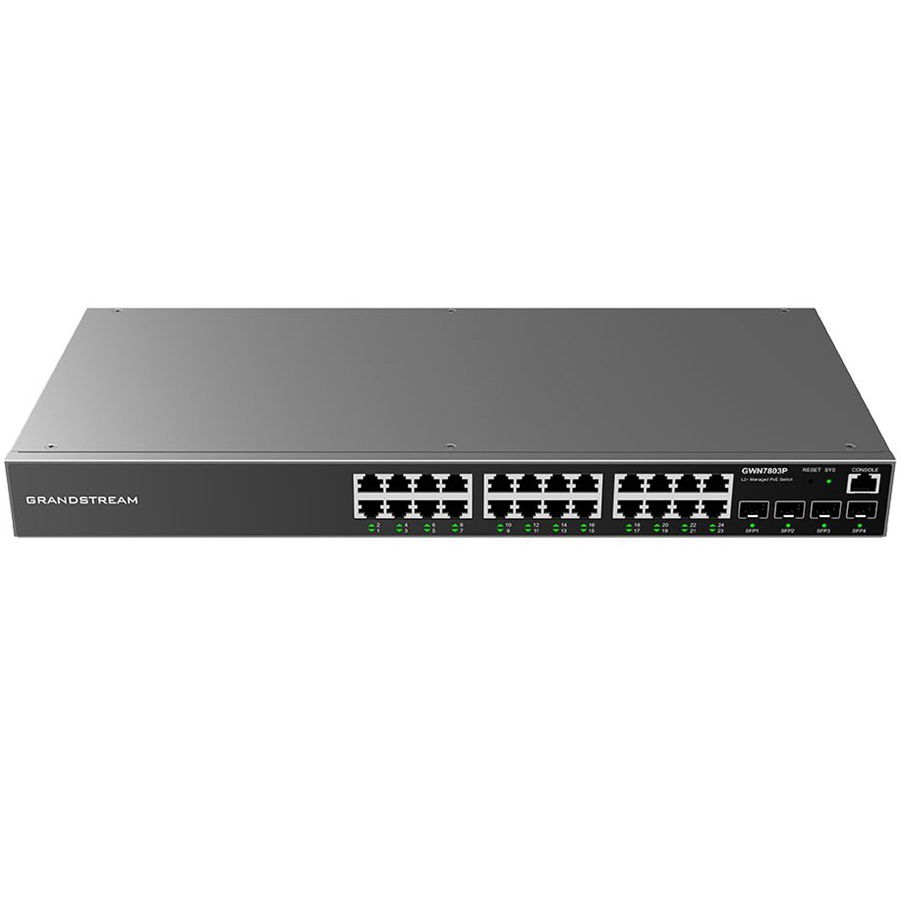

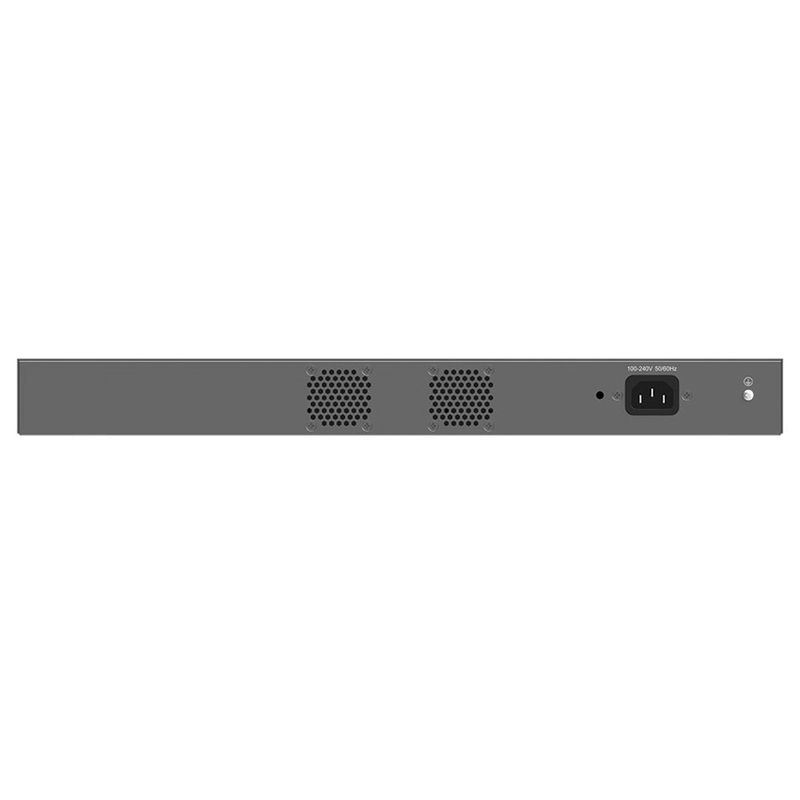

Grandstream GWN7803P 24xGigE 4xSFP Layer 2+ PoE Managed Switch

Grandstream

Genuine NZ new item

Find out more...

Today's Price:

$481.91 incl gst

Free Delivery

Low Stock. Can Ship Monday- Details

Estimated Delivery Time

  • Auckland
    1 Day
  • North Island
    1-2 Days
  • South Island
    1-3 Days

Product Description:

Grandstream GWN7803P 24xGigE 4xSFP Layer 2+ PoE Managed Switch

The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

Features:

• 24 Gigabit PoE Ports
• 4 Gigabit SFP Ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
• Built-in QoS allows for prioritization of network traffic

Specifications:

• Network Protocols: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE
• PoE Standards: IEEE 802.3af/at
• Gigabit Ethernet Ports: 24
• Gigabit SFP Ports: 4
• Console: 1
• # of PoE Ports: 24
• Integrated Power Supply: 400W
• Max Output Power per PoE Port: 30W
• Max Total PoE Output Power: 370W
• PoE Standards: IEEE 802.3af/at
• Surge Protection: ± 6KV CM and DM for power; ± 4KV CM for network ports
• ESD: ± 12KV for contact discharge, Auxiliary Ports 1x Reset Pinhole, Forwarding Mode Store-and-forward
• Total non-blocking throughput: 28Gbps
• Switching Capability: 56Gbps
• Forwarding Rate: 41.66Mpps
• Packet Buffer: 4.1Mb
• Network Latency: Avg < 4µs
• Switching: 8K static, dynamic and filtering MAC addresses; 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN; VLAN virtual interface; GVRP (pending); 8 link aggregation groups; Spanning tree, 16 instances for STP/RSTP/MSTP
• Multicast: IGMP Snooping, MLD Snooping, MVR
• QoS/ACL: Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending); Port priority; Priority mapping; Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ; Traffic shaping; Rate limit; 1.5K ACL for Ethernet, IPv4 and IPv6
• DHCP: DHCP server, DHCP relay, Option 82, 60,160 and 43
• Maintenance: CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
• Security: User hierarchical management and password protection, HTTPS, SSH, Telnet; 802.1X authentication; AAA authentication including RADIUS, TACACS+; Storm control; Port isolation, port security, sticky MAC; Filtering MAC address; IP source guard, DoS attack prevention, ARP inspection; DHCP Snooping; Loop protection including BPDU protection, root protection and loopback protection; Kensington Security Slot (Kensington Lock) support
• LEDs: 1x tri-color LED for device tracking and status indication, 28x green-color LEDs for data ports, 24x yellow-color LEDs for PoE ports
• Fan: 2
• Environmental - Operation: 0°Cto 45°C, humidity 10-90% RH (Non-condensing)
• Environmental - Storage: -10°C to 60°C, humidity: 5% to 95% (Non-condensing)
• Mounting: Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
• Compliance: FCC, CE, RCM, IC, UKCA
• Dimensions (L x W x H): 440 x200 x44mm
• Unit Weight: 3.3kg

Package Contents:

• 1x Switch
• 1x 1.2m(10A) AC Cable
• 8x screws
• 1x Ground Cable
• 4x Rubber Feet
• 1x Quick Installation Guide
• 1x Power Cord Anti-Trip
• 2x Rack Mounting Kits

Questions & Answers

Have a technical question about this product?

Ask us a question

Additional Details:

  • Stock Availability: 2 In Stock Now
  • Warranty: 1 Year
  • Manufacturer: Grandstream Shop
  • Product Found In: POE Switches
  • Model Number: GWN7803P
  • Part Number: SN000544
