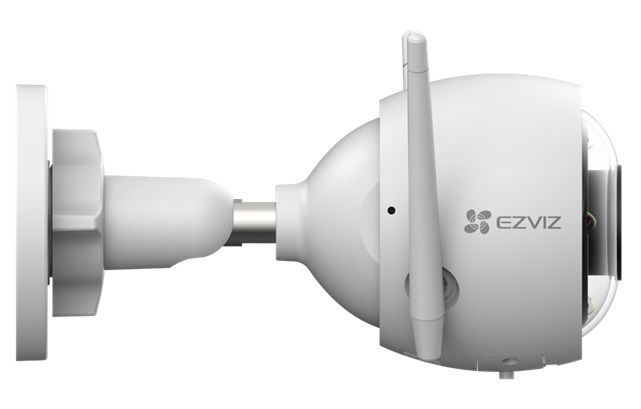

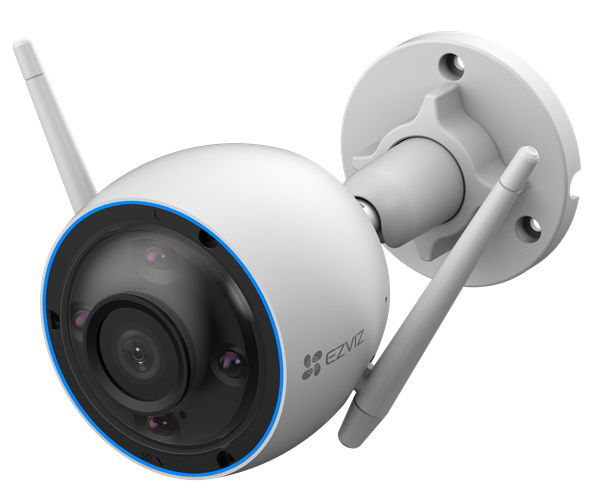

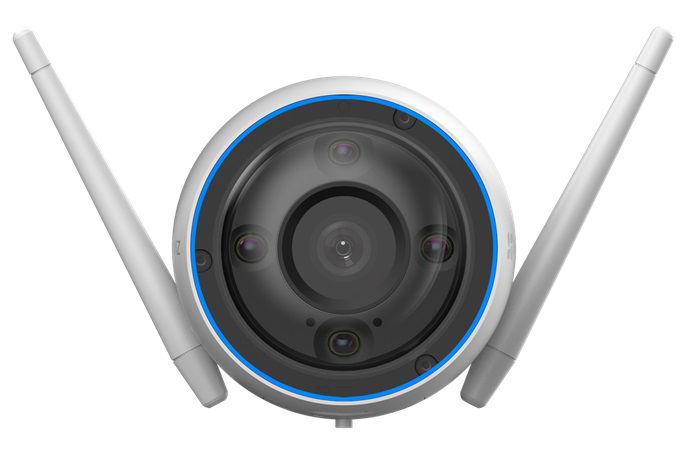

EZVIZ H3 2K IR Wi-Fi Smart Home Security Camera

Trusted outdoor protection with added smarts.

It makes it hard to lose an important detail:
Bringing its vision to 2K, the camera can render vivid, clear images in all lighting conditions. Even visitors backlit by the sun can be seen in clarity, without appearing dark with an overly exposed background.

On-device AI for smarter detection:
The camera’s on-board AI algorithm helps it identify moving people and vehicles in particular. It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.

Rest assured, knowing your night is well protected:
The camera makes sure that no one can easily sneak in under the cover of darkness. Choose between the color mode or the infrared mode as you’d like. Or, you can set the camera to the “smart night vision” mode so its vision can automatically switch from black-and-white to full color upon motion detection.

Greeting can be this easy:
Enjoy two-way communications by simply using your phone. Or, pre-record specific voice messages that automatically playwhen people are detected on camera.

Durable in any weather:
With an IP67-rated enclosure, the H3 2K ensures long-lasting performance even under the toughest weather conditions-whether it is rainy, stormy or snowy.

Large, safe storage options that you can trust:
You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted, unlimited cloud storage.

Camera:
• Image Sensor: 1/2.7”Progressive Scan CMOS
• Shutter Speed: Self-adaptive shutter
• Lens: 2.8mm @ F2.0, viewing angle: 122° (Diagonal), 106° (Horizontal), 56° (Vertical) 4mm @ F2.0, viewing angle:102° (Diagonal), 86° (Horizontal), 44° (Vertical)
• Minimum Illumination: 0.01 lux @ (F2.0, AGC ON), 0 Lux with IR
• Lens Mount: M12
• Day / Night Switch: IR-Cut filter with auto-switching
• DNR: 3D DNR
• WDR: Digital WDR
• BLC: Supports
• IR Night Vision Distance: Up to 98 ft / 30 m

Video & Audio:
• Max. Resolution: 2304 × 1296 pixels
• Frame Rate: Max: 30fps; Self-Adaptive during network transmission
• Video Compression: H.265 / H.264
• Video Bit Rate: Quad HD; Full HD; HD; Standard. Adaptive bit rate.
• Audio Bit Rate: Self-Adaptive
• Max. Bitrate: 1.5 Mbps

Network:
• Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth: Supports 20 MHz
• Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
• Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
• Wi-Fi Pairing: AP Pairing
• Protocol: EZVIZ Cloud Proprietary Protocol
• Interface Protocol: EZVIZ Cloud Proprietary Protocol
• Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Function:
• Detection: AI-Powered Human / Vehicle Shape Detection, Motion Detection
• Customized Alert Area: Supports
• Integration: Works with Alexa, Google Assistant, IFTTT
• General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage:
• Local Storage: Supports microSD card (Up to 512 GB)
• Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)

Power:
• Wiring: Hard-Wired
• Power Supply: DC 12V / 1A
• Power Consumption: Max. 7W

General:
• IP Grade: IP67
• Operating Conditions: -30 °C ~ 60 ºC (-22 °F ~ 140 °F ) Humidity 95% or less (non-condensing)
• Dimensions: 75.5 × 75.5 × 155 mm
• Weight: 438 g

• EZVIZ H3 2K Camera
• Drill Template
• Screw Kit
• Waterproof Kit
• Power Adapter
• Regulatory Information
• Quick Start Quide
