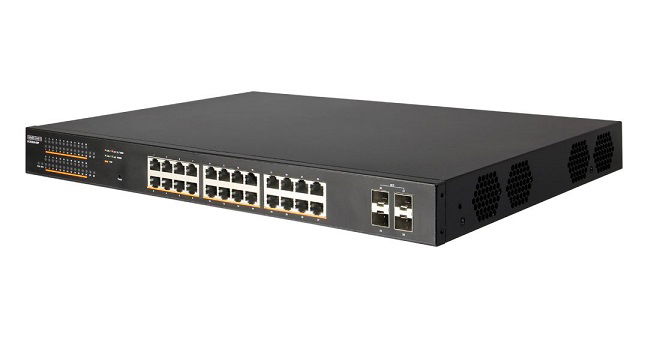

EdgeCore ECS2020-28P 28-Port Gigabit Web-Smart Ethernet PoE Switch

The ECS2020 Series is Edgecore's latest generation cost-effective web-smart switch solution. The ECS2020 is designed for SMB and enterprise markets and provides a complete solution from 10/28-ports, including both non-PoE and PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv4 and IPv6 management and features ensures your network can upgrade from IPv4 to IPv6. The ECS2020 Series offers complete PoE solutions from 70W-190W. All the switches are rack mountable.

• Supports 2/4 integrated Gigabit SFP ports. Besides providing more uplink bandwidth, the SFP ports can be used for redundant links.
• Operates at a temperature from 0ºC~50ºC
• Supports automatic voice/surveillance VLANs, providing VoIP and IP cameras with the optimum network traffic usage.
• 4KV Surge Protection
• IGMP/MLD snooping manages multicast streams to ensure high-quality, smooth video
• Supports Web, SNMP v1/v2c/v3, and Telnet management to provide CLI access. The switch supports a private MIB for detailed information

Port:
• RJ45 10/100/1000 Ports: 24
• SFP Uplink Ports: 4
• PoE Ports: 24

Performance:
• Switching Capacity: 56Gbps
• Forwarding Rate: 41.7Mpps
• Flash Memory: 16Mb
• DRAM: 128Mb
• MTBF: 83,923 hrs
• Packet Buffer: 4.1Mbits
• MAC Address Table: 8K
• Jumbo Frames: 10K
• Heat Dissipation: 657.83 (Btu/H)
• Acoustic Noise: < 40dB

Power Supply:
• 100V-240V AC, 50/60Hz: Yes
• Max Power Consumption: 210.2W

PoE:
• IEEE 802.3af/802.3at: Yes
• PoE Power Budget: 190W
• PoE Timer: Yes

Environmental:
• Operating Temperature: 0ºC ~ 50ºC
• Storage Temperature: -40ºC ~ 70ºC
• Altitude: 3000m
• Operating Humidity (noncondensing): 10% to 90%
• Storage Temperature (noncondensing): 10% to 90%

Mechanical:
• Rack Space: 19"
• Form Factor: Rackmount
• Dimension (W x D x H): 44.0 x 20.8 x 4.4cm
• Weight: 4.5kg
