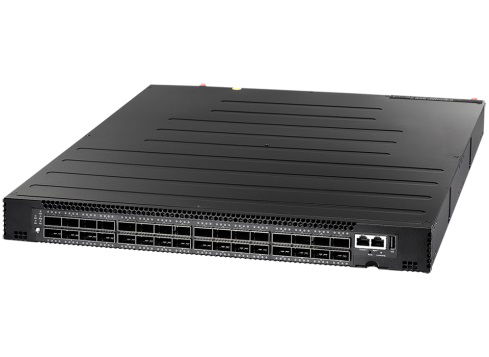

EdgeCore AS7712-32X 32-Port 100G QSFP28 Compact 1RU Managed Switch

The Edgecore AS7712-32X switch is a Top-of-Rack (TOR) or spine switches for high-performance data centers. In a compact 1RU form factor, the switches provide line-rate L2 and L3 switching across the 32 x QSFP28 ports, supporting up to 32 x 40/100 GbE, 64 x 50 GbE, or 128 x 10/25 GbE connections.

• Cost-effective, bare-metal switch infrastructure for data centre fabric
• Deploy as Top-of-Rack switch supporting 10 or 25GbE to servers, with 40 or 50 or 100GbE uplinks.
• Deploy as a spine switch supporting 40, 50, or 100GbE ToR and spine interconnects
• 32x QSFP28 switch ports, each supporting 1x 100GbE or 1x 40 GbE, or via breakout cables, 2x 50GbE or 4x 25GbE or 4x 10GbE
• Layer 2 or Layer 3 forwarding of 6.4 Tbps (full duplex)
• Supports hot/cold aisle with port-to-power and power-to-port airflow SKUs
• All ports on front; PSUs and fans accessible from the rear
• Hot-swappable, load-sharing, redundant AC or -48V DC or 12V DC PSUs
• 5+1 redundant, hot-swappable fan modules
• Energy Efficiency
• Bare-Metal hardware switch pre-loaded with diagnostics software and with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings
• Compatible with Open Network Linux (ONL), an open-source, OCP reference NOS
• Compatible with the future release of Big Monitoring Fabric 5.6.0 and later version from Big Switch Networks
• Compatible with Cumulus Linux 3.1 and later versions
• Compatible with SONiC open source network software
• Compatible with PicOS 2.7.1 and later version from Pica8 Inc
• Compatible with OcNOS 1.2 and later version from IP Infusion
• Compatible with Ixia Vision Edge OS 4.7.3 and later
• Compatible with SnapRoute FlexSwitch software
• Compatible with Pluribus Netvisor OS (ONVL) version 2.5 and later from Pluribus Networks

Ports:
• Switch Ports: 32 x QSFP28 ports. Each Port supports 1 x 40/100 GbE or 2 x 50 GbE or 4 x 10/25 GbE per port using splitter cables
• Management ports on port side: 1 x RJ-45 serial console, 1 x RJ-45 100/1000BASE-T management, 1 x USB Type A storage

Key Components:
• Switch Silicon: Broadcom BCM56960 Tomahawk
• No PHYs, No Re-timers
• CPU Modules: AS7712-32X: Intel Atom C2538 quad-core 2.4 GHz x86 processor, 16 GB SO-DIMM DDR3 RAM, 16 MB SPI Flash, 32 GB mSATA

Performance:
• Switching Capacity: 6.4 Tbps full duplex
• Forwarding Rate: 4.7 Bpps
• Jumbo frames support up to 9216 Bytes
• Packet Buffer Size: 16 MB integrated packet buffer
• Subject to NOS: MAC Addresses: 8 K min./136 K max., VLAN IDs: 4 K, IPv4: 8 K min./72 K max. host entries; 16 K LPM entries with TCAM-only mode, IPv6: 4K /36 K max. host entries; IPv6/64= 8 K TCAM-only mode

LED:
• QSFP 28 Port LEDs: Link Status, Activity, Rate
• Ethernet Management Port LED: Link Status, Activity
• Console Port LED: Link Status
• System LEDs: Diagnostic, Locator, PSU and Fan Status

Power:
• PSUs: 2 redundant, load-sharing, hot-swappable AC or -48 VDC
• Input Voltage: 90 to 240 VAC at 50-60 Hz. -36 to -72 VDC
• PSU Efficiency: Up to 93% for AC PSUs
• Power input option: 12 VDC
• Max Power: 550 W

Physical and Environmental:
• Dimensions (WxDxH): 43.8 x 51.5 x 4.35 cm
• Weight: 10kg
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 5% to 95% non-condensing
• Operating Altitude: 0 to 10,000 feet
