Product Description:

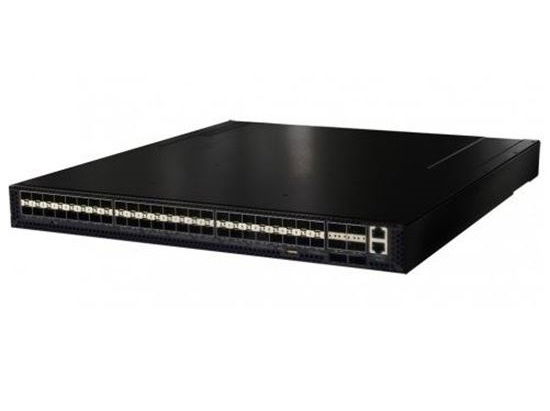

Edge-Core AS5812-54X-EC 48-Port 10G SFP+ Managed Switch with 6x 40G QSFP+ Uplink
The 5812-54X-EC is a 48 port 10GbE switch with 6x 40GbE uplinks designed for carrier/enterprise aggregation, data centre top-of-rack and SDN-enabled networks. The switch is an ideal solution for traditional three-tier aggregation or core and folded-Clos architectures. The switch runs EdgeCOS, providing traditional Layer 2 and Layer 3 switching functionality, as well as OpenFlow 1.3, leveraging Broadcom’s OpenFlow Data Plane Abstraction (OF-DPA) that delivers the most out of the switching silicon. By using OF-DPA, EdgeCOS provides more tables, larger table sizes and a streamlined OpenFlow pipelining, compared to legacy OpenVswitch-based software solutions.
Features:
• 48x 10G SFP+/10GBASE-T and 6x 40G QSFP+ ports
• Layer 2/Layer 3 and Hybrid OpenFlow 1.3
• OF-DPA 1.0/2.0
• Compatible with OpenFlow 1.3 capable controllers and applications are written for OF-DPA
• Debian GNU/Linux Open Linux Environment
• 282W typical power consumption
• 9KB Jumbo Frames
• Dual hot-swappable power supplies (AC, 48V DC, 12V DC)
• Port-to-power and power-to-port airflow options
• 2:1 oversubscription in folded-Clos networks
• 4+1 Hot-swappable fans
• MLAG support
• VLAN ready
• Layer 2/Layer 3 and Hybrid OpenFlow 1.3
• OF-DPA 1.0/2.0
• Compatible with OpenFlow 1.3 capable controllers and applications are written for OF-DPA
• Debian GNU/Linux Open Linux Environment
• 282W typical power consumption
• 9KB Jumbo Frames
• Dual hot-swappable power supplies (AC, 48V DC, 12V DC)
• Port-to-power and power-to-port airflow options
• 2:1 oversubscription in folded-Clos networks
• 4+1 Hot-swappable fans
• MLAG support
• VLAN ready
Specifications:
Power:
• PSU's: 2 redundant, load-sharing, hot-swappable AC or -48V DC
• Input Voltage: 90 ~ 264V AC at 50-60Hz. -48 ~ -72V DC
• Input Current: Max. 6A @100/120V AC, 3A @200/240V AC, 10A @-72V DC
• PSU Efficiency: ~93% for AC PSU's, 12V DC power input options
Supported Optics and Cables:
• SFP+ Ports: 10GBASE-CR DAC: up to 5m passive; up to 10m active, 10GBASE-SRL/SR: up to 100/300m over OM3 MMF, 10GBASE-LR: Up to 10km over SMF, 1000BASE-SX, 1000BASE-LX, 100/1000BASE-T
• QSFP+ Ports: 40GBASE-CR4 DAC; 0.5m to 7m; Passive and Active, 40GBASE-CR4 DAC to 4x SFP+ 10GBASE-CR DAC; up to 5m passive; up to 10m active, 40GBASE-SR4: Up to 100m over OM3 MMF, 150m over OM4 MMF, 40GBASE-SR4 to 6x 10GBASE-SR: 100m over OM3, 150m OM4, 40GBASE-LR4: Up to 10km over SMF
• Software License: Switch is loaded with Open Network Install Environment (ONIE) software installer, EdgeCOS perpetual license
• Regulatory: EMI, CE Mark (EN55022 Class A), FCC Part 15 Class A, VCCI, Safety, CB, EN 60950, UL/CUL, Environmental: Temperature: IEC 68-2-14, Drop: ISTA 2A, RoHS-6 Compliant
Physical and Environmental:
• Fans: Hot-swappable 4+1 redundant fans
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -40°C ~ 70°C
• Operating Humidity: 5% ~ 95% non-condensing
• Operating Altitude: ~3048m
• Dimensions: 443 x 473 x 43.4mm
• Weight: 8.95kg with two installed PSU modules
• PSU's: 2 redundant, load-sharing, hot-swappable AC or -48V DC
• Input Voltage: 90 ~ 264V AC at 50-60Hz. -48 ~ -72V DC
• Input Current: Max. 6A @100/120V AC, 3A @200/240V AC, 10A @-72V DC
• PSU Efficiency: ~93% for AC PSU's, 12V DC power input options
Supported Optics and Cables:
• SFP+ Ports: 10GBASE-CR DAC: up to 5m passive; up to 10m active, 10GBASE-SRL/SR: up to 100/300m over OM3 MMF, 10GBASE-LR: Up to 10km over SMF, 1000BASE-SX, 1000BASE-LX, 100/1000BASE-T
• QSFP+ Ports: 40GBASE-CR4 DAC; 0.5m to 7m; Passive and Active, 40GBASE-CR4 DAC to 4x SFP+ 10GBASE-CR DAC; up to 5m passive; up to 10m active, 40GBASE-SR4: Up to 100m over OM3 MMF, 150m over OM4 MMF, 40GBASE-SR4 to 6x 10GBASE-SR: 100m over OM3, 150m OM4, 40GBASE-LR4: Up to 10km over SMF
• Software License: Switch is loaded with Open Network Install Environment (ONIE) software installer, EdgeCOS perpetual license
• Regulatory: EMI, CE Mark (EN55022 Class A), FCC Part 15 Class A, VCCI, Safety, CB, EN 60950, UL/CUL, Environmental: Temperature: IEC 68-2-14, Drop: ISTA 2A, RoHS-6 Compliant
Physical and Environmental:
• Fans: Hot-swappable 4+1 redundant fans
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -40°C ~ 70°C
• Operating Humidity: 5% ~ 95% non-condensing
• Operating Altitude: ~3048m
• Dimensions: 443 x 473 x 43.4mm
• Weight: 8.95kg with two installed PSU modules
Additional Details:
-
Stock Availability: Out of Stock!
-
Warranty: 1 Year
-
Manufacturer: EdgeCore Shop
-
Product Found In: Managed Switches
-
Model Number: 5812-54X-EC
-
Part Number: CD05682
