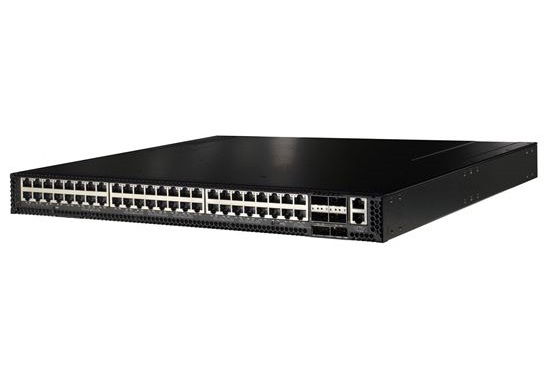

Edge-Core AS5812-54T 48 Port 10GBASE-T Managed Switch - 6x 40G QSFP+

The Edgecore AS5812-54T switch meets the high-performance, availability, and network-scaling requirements of enterprise and cloud data centres. The AS5812-54T provides full line-rate switching at Layer 2 or Layer 3 across 48x 10GbE ports and 6x 40GbE uplinks. The switch can be deployed either as a Top-of-Rack switch or as part of a 10GbE or 40GbE distributed spine, forming a non-blocking folded-Clos data centre fabric. The switch is rack mountable in either a standard 19" rack or with the Open Rack Switch Adapter in the 21" Open Rack.

• Cost-effective, open network switch for data center fabric.
• 48 x RJ-45 Copper, supporting 10GBASE-T, 1000BASE-T and 100BASE-TX Ethernet on Cat 6, Cat 6 A and Cat 7 twisted-pair cable.
• 48 x RJ-45 Copper, supporting 1000BASE-T and 100BASE-TX on Cat 5e UTP, Cat 6, Cat 6A and Cat 7 twisted-pair cable.
• 6 x 40 QSFP switch ports, each supporting 40GbE (DAC, 40GBASE-SR4/LR4) or 4 x 10GbE (DAC or fiber breakout cable).
• Hot-swappable, load sharing, redundant AC PSUs power input option.
• VXLAN and NVGRE tunneling support in hardware for network virtualization.
• Rack mountable in standard 19" racks. Mountable in 21" Open Rack with the Open Rack Switch Adapter.
• Supports hot/cold aisle with port-to-power and power-to-port airflow SKUs.
• All ports on front; PSUs, fan tray on rear.
• Hot swappable 4+1 redundant fan modules.
• Management: Ethernet and console RJ-45 ports.
• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.
• Compatible with Open Network Linux (ONL), the open-source, OCP reference NOS.
• Compatible with Pica8 Inc. PicOS
• Compatible with Pluribus Networks Netvisor ONE Network operating system

Ports:
• Switch Ports: 48x RJ45 Copper each supporting 10GbE, 1GbE or 100Mbps, 6x QSFP each supporting 40GbE or 4 x 10GbE
• Management Ports on Front Panel: 1x RJ45 serial console, 1x RJ45 100/1000BASE-T management

Key Components:
• Switch Silicon: Broadcom BCM56864 Trident2+
• CPU Modules: Intel Atom C2538 quad-core 2.4 GHz x86 processor, 8GB SO-DIMM DDR3 RAM with ECC, 16MB SPI NOR Flash, 8GB NAND flash Reserve mSATA connector

Performance:
• Switching Capacity: 1.44Tbps full duplex
• Forwarding Rate: 1Bpps
• Jumbo frames support up to 9216Bytes: Packet Buffer Size: 16MB integrated packet buffer
• Subject to NOS: MAC Address: 32K min./288K max, VLAN IDs: 4K, IPv4: 16K min./112K max. host entries; 16K LPM entries with TCAM-only mode, IPv6: 8K min./56K max. host entries; IPv6/64=8K TCAM-only mode

Supported Optics and Cables:
• RJ45 Copper ports: 10GBASE-T on Cat 6/6A/7 twisted-pair cable, 1000BASE-T and 100BASE-TX on Cat 5e UTP, Cat 6/6A/7 twisted-pair cable
• QSFP Ports: 40GBASE-CR4 DAC; 0.5m to 7m; Passive and Active, 40GBASE-CR4 DAC to 4x SFP+ 10GBASE-CR DAC; up to 5m passive; up to 10m active, 40GBASE-SR4: Up to 100m over OM3 MMF, 150m over OM4 MMF, 40GBASE-SR4 to 6x 10GBASE-SR: 100m over OM3, 150m OM4, 40GBASE-LR4: Up to 10km over SMF

Power:
• PSU's: 2 redundant, load-sharing, hot-swappable AC or -48 VDC
• Input Voltage: 90V to 264V AC at 50-60Hz. -48V to -72V DC
• Input Current: 6A@100/120V AC, 3A@200/240V AC, 10A@-72V DC
• PSU Efficiency: Up to 93% for AC PSUs
• Power input option: 12V DC
• Max Power: 348W

Regulatory:
• EMI: CE Mark, EN55022 Class A, FCC Part 15 Class A, VCCI
• Safety: CB, EN 60950, UL/CUL

Physical and Environmental:
• Dimensions (WxDxH): 47.3 x 44.25 x 4.39cm (18.6 x 17.4 x 1.71")
• Weight: 9.5kg (20.94lb), with two, installed PSU modules
• Fans: Hot-swappable 4+1 redundant fans
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 5%~95% non-condensing
• LEDs: 10G SFP+ Port LEDs: Link Speed, Link Status, Activity 40G QSFP Port LEDs: Link Status, Activity for 40G status 40G QSFP Breakout LEDs: set of 24 LEDs, 4 per QSFP port, show Link, Status, Activity 10G links with 4x10G breakout Ethernet Management Port LED: Link Status, Activity Console Port LED: Link Status System LEDs: PSU1, PSU2, Diagnostic, Fans, Locato
