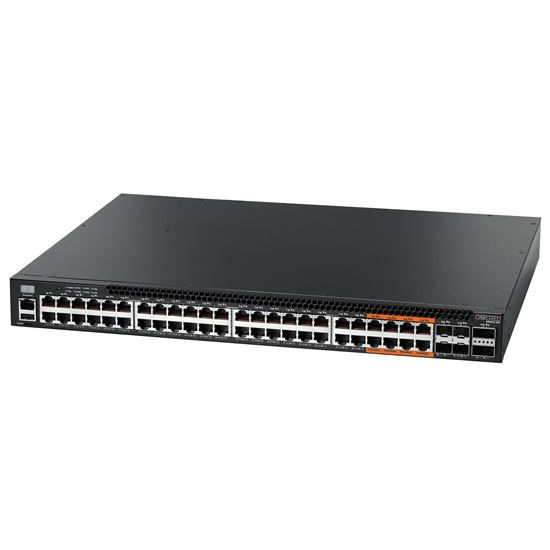

Edge-Core AS4610-54P 48 Port GE + 4x 10G SFP+ (8 Ports Ultra-PoE) Managed Switch

The Edgecore AS4610-54P is a high-performance Gigabit Ethernet Layer 3 switch featuring 54 ports; with 48 10/100/1000BASE-T ports, 4 x 10G SFP+ uplink ports, and 2 x 20G QSFP+ stacking ports (stacking capability subject to NOS implementations). The AS4610-54P is ideal for enterprise or campus networks deploying open network solutions, it includes redundant hot-swappable AC PSUs and port-to-power airflow, plus the 48 10/100/1000BASE-T ports fully support IEEE 802.3at and IEEE 802.3af Power-over-Ethernet (PoE).

• Cost-effective infrastructure for data center racks.
• 1 GbE connections to server and storage nodes in rack, with 10 GbE uplinks to spine network.
• PoE models ideal for enterprise, hospitality, warehouse applications interconnecting security, camera, WiFi devices.
• 24/48 x 10/100/1000BASE-T RJ-45 ports.
• 4 x SFP+ uplink ports, supporting 10 GbE (DAC, 10GBASE-SR/LR/ER/LRM) or 1 GbE (1000BASE-T/SX/LX).
• Full line-rate L2 or L3 forwarding and switching.
• Energy efficiency: Maximum 99.1 W system power consumption excluding PoE power consumption.
• Hot-swappable, load-sharing, redundant AC PSUs.
• Compatible with Pica8 Inc. PicOS
• Compatible with Open Network Linux (ONL), an open-source, OCP reference NOS

Port:
• RJ45 10/100/1000 Ports: 48
• 10G SFP+ Uplink Ports: 4
• 20G QSFP+ Stacking Ports: 2
• PoE Ports: 48
• Micro USB Console Port: Yes

Performance:
• Switching Capacity: 128Gbps
• Forwarding Rate: 191Gbps
• Memory: 2G
• SPI Flash: 8MB
• NAND Flash: 8MB
• MAC Address Table: 96K
• Jumbo Frames: 12KB

PoE:
• IEEE 802.3af (15W): 48
• IEEE 802.3at (30W): 48
• UPoE (60W): 8
• PoE Power Budget: 1650W

Power Supply:
• 100-240 VAC, 50-60Hz: Yes
• Max System Power Consumption: 99.1W

Physical and Environmental:
• Fans: System fan and PSU fans
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 5% to 95% non-condensing
• Dimensions (WxDxH): 44 x 35 x 4.4 cm 1 RU
• Weight: 6.36 kg
