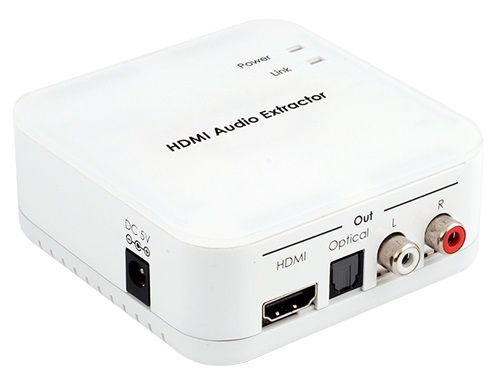

CYP CLUX-11CD HDMI (1X HDMI in, 1X HDMI Out, 1X Tosink, 2X RCA) Audio Extractor

Overview:

The HDMI Audio Extractor is a device that allows you to extract audio signals from your HDMI/DVI source. When connecting with a TV or display you don’t always get great audio, or in the case of a display, no audio at all, so with this Audio Extractor you can take your original HDMI audio signal and convert it to optical and L/R audio. What this means is that you can output your audio signal to external speakers or extend your audio signal, the HDMI Audio Extractor is the perfect choice.

Features:

• Compliant with HDMI 1.3, HDCP 1.2 and DVI 1.0
• Supports HDMI Sample Rates up to 192 kHz
• Supports Optical Sample Rate up to 48 kHz
• Supports TMDS clock frequency rate 225MHz
• Supports high-bit-rate (HBR) audio
• HDMI cable distance testing showed that with 1080p 8bit resolution, the input & output can run up to 15 meters
• Low power consumption
• Support built-in audio EDID switch of LPCM2,5.1/7.1 or Bitstream

Specifications:

• Input Port: 1 x HDMI
• HDMI Sample Frequency: Up to 192 kHz
• Optical Sample Frequency: Up to 48 kHz
• Output Port: 1 x HDMI, 1 x Optical, 1 x L/R
• HDMI Audio Format: PCM2/5.1/7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD
• Optical Audio Format: PCM2, Dolby 5.1, DTS 5.1
• L/R Audio Format: LPCM2
• Power Supply 5V / 1.2A DC ( US/EU standards, CE/FCC/UL certified)
• ESD Protection Human body model: ± 8kV (air-gap discharge) ; ± 6kV (contact discharge)
• Dimensions(mm): 100 (W) x 70 (D) x 20(H)
• Weight(g): 90
• Chassis Material: Plastic
• Silkscreen Color: White
• Power Consumption: 100W
• Operating Temperature: 0?C ~ 40?C
• Storage Temperature: -20?C ~ 60?C
• Power Consumption: 1.5W
• Relative Humidity: 20 ~ 90% RH (non-condensing)

System Requirements:

• Input source equipment and output display TV/monitor and or amplifier/active speaker with connection cables.

Applications:

• Game entertainment on monitor
• Demonstration display
• Showroom display

Package Contents:

• HDMI Audio Extractor
• 5V / 1.2A Power Adaptor
• Operation Manual
